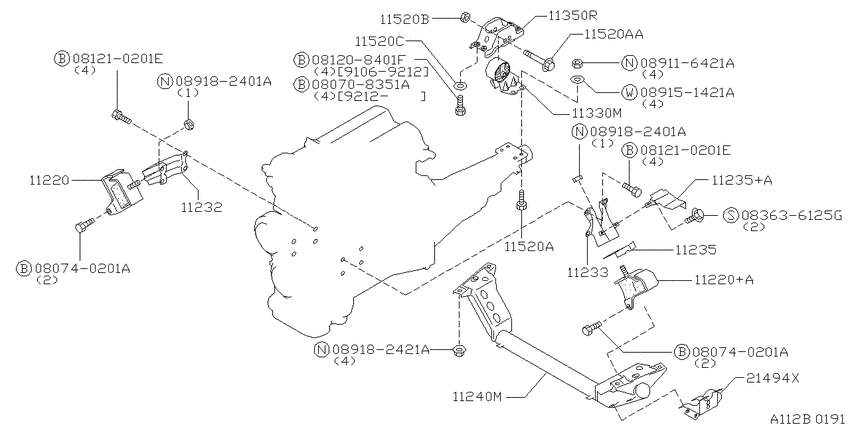

Engine & transmission mounting (1994-05-01 ~ 1998-01-01; 2WD.SR20DE.MT) Diagram Nissan VANETTE
- Year
- 1994 - 1997
- Sales region
- Japan
- Engine
- SR20DE
- drive
- 2WD
- transmission
- MT
- grade
- SX
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080708351A
|
080708351A
08070-8351A
Bolt-hexagon
|
08070-8351A |
— | ||
|
080740201A
|
080740201A
08074-0201A
Bolt-hexagon
|
08074-0201A |
— | ||
|
080740201A
|
080740201A
08074-0201A
Bolt-hexagon
|
08074-0201A |
— | ||
|
081208401F
|
081208401F
08120-8401F Bolt-hexagon |
08120-8401F |
US $0.57 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.04 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.04 |
||
|
083636125G
|
083636125G
08363-6125G
Screw
|
08363-6125G |
— | ||
| replacement | |||||
|
083636125G
|
083636125G
083606125G
SCREWMACHINE
|
083606125G |
— | ||
|
089116421A
|
089116421A
089116421A Nut |
089116421A |
US $3.06 |
||
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
089182401A
|
089182401A
08918-2401A
NUTHEX
|
08918-2401A |
— | ||
|
089182401A
|
089182401A
08918-2401A
NUTHEX
|
08918-2401A |
— | ||
|
089182421A
|
089182421A
08918-2421A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08918-2421A |
— | ||
|
11220
|
11220
112100C000 Insulator-Engine Mounting, Front9405--01 ~ 9701--01; 2WD.SR20DE; ﾐｷﾞ ﾖｳ |
112100C000 |
US $70.70 |
||
|
11220
|
11220
112200C000 Insulator-Engine Mounting, Front9405--01 ~ 9701--01; 2WD.SR20DE; ﾋﾀﾞﾘ ﾖｳ |
112200C000 |
US $70.70 |
||
|
11220+A
|
11220+A
112200C000 Insulator-Engine Mounting, Front9405--01 ~ 9701--01; 2WD.SR20DE; ﾋﾀﾞﾘ ﾖｳ |
112200C000 |
US $70.70 |
||
|
11232
|
11232
11232-0C800 Bracket-Engine Mounting, Rh9405--01 ~ 9701--01; 2WD.SR20DE |
11232-0C800 |
US $96.91 |
||
|
11233
|
11233
11233-0C801 Bracket-Engine Mounting, Lh9405--01 ~ 9603--01; 2WD.SR20DE |
11233-0C801 |
US $96.91 |
||
|
11233
|
11233
11233-0C802 Bracket-Engine Mounting, Lh9603--01 ~ 9701--01; 2WD.SR20DE |
11233-0C802 |
US $96.91 |
||
|
11235
|
11235
11284-0C000 Plate-Heat Shield9405--01 ~ 9701--01; 2WD.SR20DE |
11284-0C000 |
US $10.80 |
||
|
11235
|
11235
11284-0C801 Plate-Heat Shield9405--01 ~ 9603--01; 2WD.SR20DE |
11284-0C801 |
US $12.96 |
||
|
11235
|
11235
11284-0C802 Plate-Heat Shield9603--01 ~ 9701--01; 2WD.SR20DE |
11284-0C802 |
US $13.97 |
||
|
11235+A
|
11235+A
11284-0C801 Plate-Heat Shield9405--01 ~ 9603--01; 2WD.SR20DE |
11284-0C801 |
US $12.96 |
||
|
11235+A
|
11235+A
11284-0C802 Plate-Heat Shield9603--01 ~ 9701--01; 2WD.SR20DE |
11284-0C802 |
US $13.97 |
||
|
11240M
|
11240M
112400C800 Member-Engine Mounting, Front9405--01 ~ 9701--01; 2WD.SR20DE |
112400C800 |
US $307.27 |
||
|
11330M
|
11330M
11330-0C200 Bracket Assy-Engine Mounting, Rear9405--01 ~ 9801--01; 2WD.SR20DE.MT |
11330-0C200 |
US $96.91 |
||
|
11350R
|
11350R
11350-0C800 Bracket-Engine Mounting Support, Rear9405--01 ~ 9701--01; 2WD.SR20DE |
11350-0C800 |
US $67.10 |
||
|
11520A
|
11520A
11335-B8000 Bolt9405--01 ~ 9801--01; 2WD.SR20DE.MT |
11335-B8000 |
US $3.46 |
||
|
11520A
|
11520A
11399-G8100 Bolt9405--01 ~ 9801--01; 2WD.SR20DE.MT |
11399-G8100 |
US $2.45 |
||
|
11520AA
|
11520AA
11399-G8100 Bolt9405--01 ~ 9801--01; 2WD.SR20DE.MT |
11399-G8100 |
US $2.45 |
||
|
11520B
|
11520B
0122500072 NUT9405--01 ~ 9701--01; 2WD.SR20DE |
0122500072 |
US $1.05 |
||
|
11520C
|
11520C
11356-G8100 Washer-Lock9405--01 ~ 9701--01; 2WD.SR20DE |
11356-G8100 |
US $2.45 |
||
|
21494X
|
21494X
21494-0C800 Plate-Air Guide9405--01 ~ 9701--01; 2WD.SR20DE |
21494-0C800 |
US $16.70 |
||
