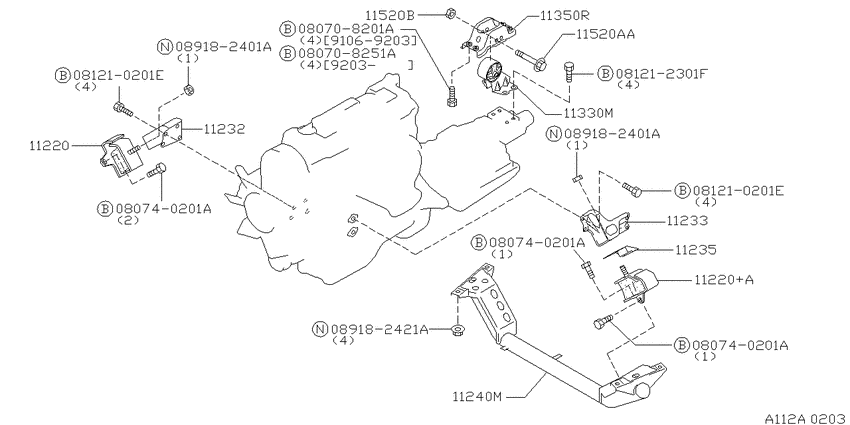

Engine & transmission mounting (1997-01-01 ~ ; GA16DE.AT) Diagram Nissan VANETTE
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- GA16DE
- drive
- 2WD
- transmission
- AT
- grade
- VX
- body
- 4DV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
080708201A
|
080708201A
08070-8201A
Bolt-hexagon
|
08070-8201A |
— | ||
|
080708251A
|
080708251A
08070-8251A
Bolt-hexagon
|
08070-8251A |
— | ||
|
080740201A
|
080740201A
08074-0201A
Bolt-hexagon
|
08074-0201A |
— | ||
|
080740201A
|
080740201A
08074-0201A
Bolt-hexagon
|
08074-0201A |
— | ||
|
080740201A
|
080740201A
08074-0201A
Bolt-hexagon
|
08074-0201A |
— | ||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.04 |
||
|
081210201E
|
081210201E
081210201E Bolt-hexagon |
081210201E |
from US $1.04 |
||
|
081212301F
|
081212301F
08121-2301F
Bolt-hexagon
|
08121-2301F |
— | ||
|
089182401A
|
089182401A
08918-2401A
NUTHEX
|
08918-2401A |
— | ||
|
089182401A
|
089182401A
08918-2401A
NUTHEX
|
08918-2401A |
— | ||
|
089182421A
|
089182421A
08918-2421A
ﾅﾂﾄ,ﾍｸｻｺﾞﾝ
|
08918-2421A |
— | ||
|
11220
|
11220
112100C000 Insulator-Engine Mounting, Front9405--01 ~ 9701--01; GA16DE; ﾐｷﾞ ﾖｳ |
112100C000 |
US $70.70 |
||
|
11220
|
11220
112200C000 Insulator-Engine Mounting, Front9405--01 ~ 9701--01; GA16DE; ﾋﾀﾞﾘ ﾖｳ |
112200C000 |
US $70.70 |
||
|
11220+A
|
11220+A
112200C000 Insulator-Engine Mounting, Front9405--01 ~ 9701--01; GA16DE; ﾋﾀﾞﾘ ﾖｳ |
112200C000 |
US $70.70 |
||
|
11232
|
11232
11232-0C002 Bracket-Engine Mounting, Rh9405--01 ~ 9701--01; GA16DE |
11232-0C002 |
US $96.91 |
||
|
11233
|
11233
11233-0C000 Bracket-Engine Mounting, Lh9405--01 ~ 9701--01; GA16DE |
11233-0C000 |
US $96.91 |
||
|
11235
|
11235
11284-0C001 Plate-Heat Shield9405--01 ~ 9701--01; GA16DE |
11284-0C001 |
US $14.11 |
||
|
11240M
|
11240M
11240-3C200 Member-Engine Mounting, Front9405--01 ~ 9701--01; GA16DE |
11240-3C200 |
US $307.27 |
||
|
11330M
|
11330M
11330-0C010 Bracket Assy-Engine Mounting, Rear9405--01 ~ 9701--01; GA16DE.AT |
11330-0C010 |
US $96.91 |
||
|
11350R
|
11350R
11350-0C000 Bracket-Engine Mounting Support, Rear9405--01 ~ 9701--01; GA16DE |
11350-0C000 |
US $72.43 |
||
|
11520AA
|
11520AA
11393-5C000 Bolt9405--01 ~ 9701--01; GA16DE |
11393-5C000 |
US $3.46 |
||
|
11520B
|
11520B
0122500072 NUT9405--01 ~ 9701--01; GA16DE |
0122500072 |
US $1.05 |
