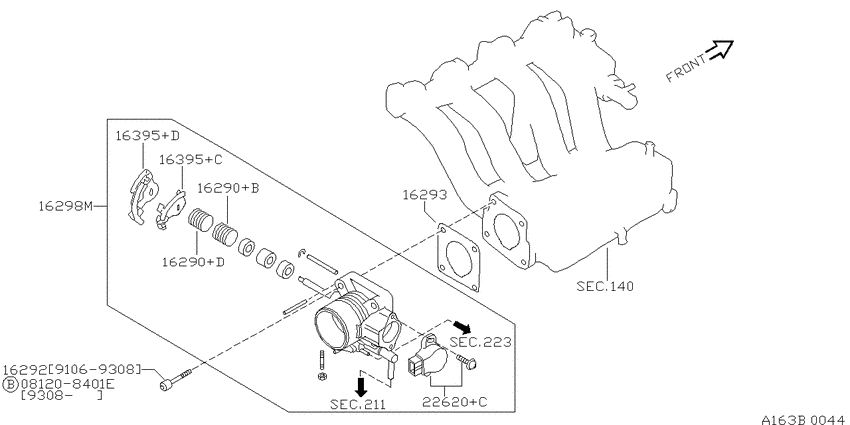

Throttle chamber (1994-05-01 ~ 1997-01-01; GA16DE) Diagram Nissan VANETTE
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- GA16DE
- drive
- 2WD
- transmission
- AT
- grade
- VX
- body
- 4DV
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081208401E
|
081208401E
08120-8401E
Bolt-hexagon
|
08120-8401E |
— | ||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
140
|
Manifold
140
|
||||
|
16290+B
|
16290+B
16160-57Y10 Spring-Throttle Return9405--01 ~ 9701--01; GA16DE |
16160-57Y10 |
US $11.66 |
||
|
16290+D
|
16290+D
16160-65Y00 Spring-Throttle Return9405--01 ~ 9701--01; GA16DE |
16160-65Y00 |
US $10.94 |
||
|
16293
|
16293
16175-57Y00 Gasket-Throttle Chamber9405--01 ~ 9701--01; GA16DE |
16175-57Y00 |
US $6.48 |
||
|
16298M
|
16298M
16119-0C510 Chamber Assy-Throttle9405--01 ~ 9701--01; GA16DE.AT |
16119-0C510 |
US $659.86 |
||
|
16395+C
|
16395+C
16134-65Y00 Lever-Throttle9405--01 ~ 9701--01; GA16DE.AT |
16134-65Y00 |
US $24.05 |
||
|
16395+D
|
16395+D
16134-0C510 Lever-Throttle9405--01 ~ 9701--01; GA16DE.AT |
16134-0C510 |
US $28.66 |
||
|
211
|
Water hose & piping
211
|
||||
|
211
|
Water hose & piping
211
|
||||
|
223
|
Vacuum piping
223
|
||||
|
223
|
Vacuum piping
223
|
||||
|
22620+C
|
22620+C
22620-58Y00 Throttle Position Switch9405--01 ~ 9701--01; GA16DE |
22620-58Y00 |
US $49.10 |
||
