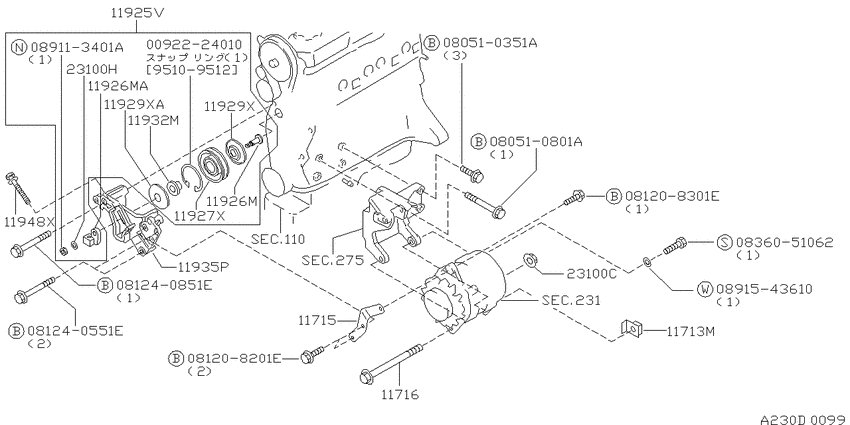

Alternator fitting (1997-01-01 ~ ; CD20) Diagram Nissan VANETTE
- Year
- 1994 - 2012
- Sales region
- Japan
- Engine
- CD20
- drive
- 2WD
- transmission
- MT
- grade
- VX
- body
- 4DV
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092224010
|
0092224010
00922-24010
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-24010 |
— | ||
|
080510351A
|
080510351A
08051-0351A
Bolt-hexagon
|
08051-0351A |
— | ||
|
080510801A
|
080510801A
08051-0801A
Bolt-hexagon
|
08051-0801A |
— | ||
|
081208201E
|
081208201E
081208201E Bolt-hexagon |
081208201E |
US $2.21 |
||
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
081240551E
|
081240551E
08124-0551E
Bolt-hexagon
|
08124-0551E |
— | ||
|
081240851E
|
081240851E
08124-0851E
Bolt-hexagon
|
08124-0851E |
— | ||
|
0836051062
|
0836051062
08360-51062
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51062 |
— | ||
|
089113401A
|
089113401A
089113401A
NUTHEX
|
089113401A |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
110
|
Cylinder block & oil pan
110
|
||||
|
110
|
Cylinder block & oil pan
110
|
||||
|
11713M
|
11713M
23188-16V00 Nut-Stopper, Alternator9701--01 ~ ; CD20 |
23188-16V00 |
US $5.18 |
||
|
11715
|
11715
11715-0C400 Bar-Adjusting, Alternator9405--01 ~ 9701--01; CD20 |
11715-0C400 |
US $34.85 |
||
|
11715
|
11715
11715-3C900 Bar-Adjusting, Alternator9701--01 ~ ; CD20 |
11715-3C900 |
US $46.94 |
||
|
11715
|
11715
11717-1C300 Bolt9405--01 ~ 9508--01; CD20 |
11717-1C300 |
US $4.18 |
||
|
11715
|
11715
11717-52F06 Bolt9508--01 ~ 9701--01; CD20 |
11717-52F06 |
US $2.45 |
||
|
11716
|
11716
11916-4P100 Bolt9701--01 ~ ; CD20 |
11916-4P100 |
from US $1 |
||
|
11925V
|
11925V
11923-0C400 Pulley Assy-Idler9405--01 ~ 9510--01; CD20 |
11923-0C400 |
US $123.41 |
||
|
11925V
|
11925V
11923-0C401 Pulley Assy-Idler9510--01 ~ 9512--01; CD20 |
11923-0C401 |
US $133.78 |
||
|
11925V
|
11925V
11923-0C402 Pulley Assy-Idler9512--01 ~ 9701--01; CD20 |
11923-0C402 |
US $131.33 |
||
|
11925V
|
11925V
11923-6C301 Pulley Assy-Idler9701--01 ~ ; CD20 |
11923-6C301 |
US $132.34 |
||
|
11926M
|
11926M
119280C401 Shaft-Idler Pulley9510--01 ~ ; CD20 |
119280C401 |
US $12.82 |
||
|
11926M
|
11926M
11928-0C402 Shaft-Idler Pulley9510--01 ~ 9701--01; CD20 |
11928-0C402 |
US $13.82 |
||
|
11926M
|
11926M
11928-6C301 Shaft-Idler Pulley9701--01 ~ ; CD20 |
11928-6C301 |
US $12.82 |
||
|
11926MA
|
11926MA
11928-0C402 Shaft-Idler Pulley9510--01 ~ 9701--01; CD20 |
11928-0C402 |
US $13.82 |
||
|
11926MA
|
11926MA
11928-6C301 Shaft-Idler Pulley9701--01 ~ ; CD20 |
11928-6C301 |
US $12.82 |
||
|
11927X
|
11927X
11927-0C401 Pulley Assy9510--01 ~ 9512--01; CD20 |
11927-0C401 |
US $72.86 |
||
|
11927X
|
11927X
119270C402 Pulley Assy9512--01 ~ ; CD20 |
119270C402 |
US $73.44 |
||
|
11929X
|
11929X
11929-0C401 Cover-Idler Pulley9510--01 ~ 9512--01; CD20 |
11929-0C401 |
US $13.82 |
||
|
11929X
|
11929X
11929-0C402 Cover-Idler Pulley9512--01 ~ ; CD20 |
11929-0C402 |
US $12.82 |
||
|
11929X
|
11929X
11930-0C402 Cover-Idler Pulley9512--01 ~ ; CD20 |
11930-0C402 |
US $12.82 |
||
|
11929X
|
11929X
11930-G5501 Cover-Idler Pulley9510--01 ~ 9512--01; CD20 |
11930-G5501 |
US $6.34 |
||
|
11929XA
|
11929XA
11930-0C402 Cover-Idler Pulley9512--01 ~ ; CD20 |
11930-0C402 |
US $12.82 |
||
|
11929XA
|
11929XA
11930-G5501 Cover-Idler Pulley9510--01 ~ 9512--01; CD20 |
11930-G5501 |
US $6.34 |
||
|
11932M
|
11932M
11932-85G00 Collar-Idler Pulley9510--01 ~ ; CD20 |
11932-85G00 |
US $5.04 |
||
|
11935P
|
11935P
11726-0C400 Bracket-Idler Pulley9405--01 ~ 9508--01; CD20 |
11726-0C400 |
US $134.78 |
||
|
11935P
|
11935P
11726-0C401 Bracket-Idler Pulley9508--01 ~ 9701--01; CD20 |
11726-0C401 |
US $134.78 |
||
|
11935P
|
11935P
11726-6C301 Bracket-Idler Pulley9701--01 ~ ; CD20 |
11726-6C301 |
US $123.84 |
||
|
11948X
|
11948X
11948-6C301 Bolt-Adjust, Idler Pulley9701--01 ~ ; CD20 |
11948-6C301 |
US $16.27 |
||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
231
|
Alternator
231
|
||||
|
23100C
|
23100C
0122100381 NUT9405--01 ~ ; CD20 |
0122100381 |
from US $5.37 |
||
|
23100H
|
23100H
01311-00122 WASHER-LOCK9510--01 ~ ; CD20 |
01311-00122 |
US $2.45 |
||
|
275
|
Compressor mounting & fitting
275
|
||||
|
275
|
Compressor mounting & fitting
275
|
||||
|
275
|
Compressor mounting & fitting
275
|
||||
|
275
|
Compressor mounting & fitting
275
|
||||
