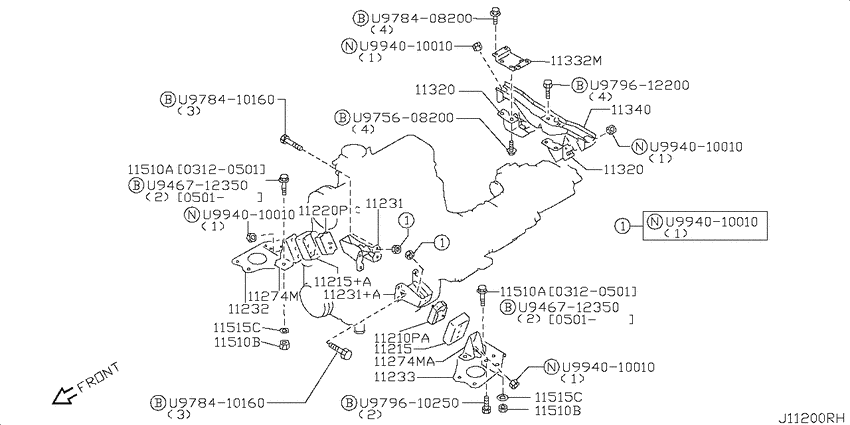

Engine & transmission mounting (2003-12-01 ~ 2007-08-01; T.4WD.SB.GAS18) Diagram Nissan VANETTE
- Year
- 2002 - 2007
- Sales region
- Japan
- Engine
- GAS18
- drive
- 4WD.SB
- Number of doors
- 2D
- grade
- DX
- body
- T
- capacity
- 3P
- roof/floor
- SR.WL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11210PA
|
11210PA
11210-HA001
ｲﾝｼﾕﾚ-ﾀ- ｱﾂｾﾝﾌﾞﾘ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾌﾛﾝﾄrh
9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11210-HA001 |
— | ||
|
11215
|
11215
11215-HC000 Stopper-Engine Mounting9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11215-HC000 |
US $27.55 |
||
|
11215
|
11215
11215-HC401 Stopper-Engine Mounting9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11215-HC401 |
US $24.91 |
||
|
11215+A
|
11215+A
11215-HC401 Stopper-Engine Mounting9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11215-HC401 |
US $24.91 |
||
|
11220P
|
11220P
11220-HC451 Insulator-Engine Mounting, Front9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11220-HC451 |
US $36.43 |
||
|
11231
|
11231
11232-HA201
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ
9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11232-HA201 |
— | ||
|
11231
|
11231
11231-HC350 Bracket-Engine Mounting9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11231-HC350 |
US $34.56 |
||
|
11231+A
|
11231+A
11231-HC350 Bracket-Engine Mounting9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11231-HC350 |
US $34.56 |
||
|
11232
|
11232
11232-HA600
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ rh
9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11232-HA600 |
— | ||
|
11233
|
11233
11233-HA600
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ lh
9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11233-HA600 |
— | ||
|
11274M
|
11274M
11274-HA601
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾌﾛﾝﾄ
9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11274-HA601 |
— | ||
|
11274M
|
11274M
11274-HA611
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾌﾛﾝﾄ
9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11274-HA611 |
— | ||
|
11274MA
|
11274MA
11274-HA611
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾌﾛﾝﾄ
9906--01 ~ 0708--01; T.4WD.SB.GAS18 |
11274-HA611 |
— | ||
|
11320
|
11320
11320-HA201
ｲﾝｼﾕﾚ-ﾀ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
0312--01 ~ 0708--01; T.4WD.SB.GAS18.AT |
11320-HA201 |
— | ||
|
11320
|
11320
11320-HA510
ｲﾝｼﾕﾚ-ﾀ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
9910--01 ~ 0312--01; T.4WD.SB.GAS18 |
11320-HA510 |
— | ||
|
11320
|
11320
11320-HA201
ｲﾝｼﾕﾚ-ﾀ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
0312--01 ~ 0708--01; T.4WD.SB.GAS18.AT |
11320-HA201 |
— | ||
|
11320
|
11320
11320-HA510
ｲﾝｼﾕﾚ-ﾀ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
9910--01 ~ 0312--01; T.4WD.SB.GAS18 |
11320-HA510 |
— | ||
|
11332M
|
11332M
11332-HA400
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
0004--01 ~ 0708--01; T.4WD.SB.GAS18 |
11332-HA400 |
— | ||
|
11340
|
11340
11310-HA202
ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
9911--01 ~ 0312--01; T.4WD.SB.GAS18 |
11310-HA202 |
— | ||
|
11340
|
11340
11310-HA203
ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
0312--01 ~ 0708--01; T.4WD.SB.GAS18.AT |
11310-HA203 |
— | ||
|
11510A
|
11510A
54475-HC000 Bolt9906--01 ~ 0501--01; T.4WD.SB.GAS18 |
54475-HC000 |
US $4.61 |
||
|
11510A
|
11510A
54475-HC000 Bolt9906--01 ~ 0501--01; T.4WD.SB.GAS18 |
54475-HC000 |
US $4.61 |
||
|
11510B
|
11510B
54658-HC400 Nut9906--01 ~ 0312--01; T.4WD.SB.GAS18 |
54658-HC400 |
US $2.59 |
||
|
11510B
|
11510B
54658-HC400 Nut9906--01 ~ 0312--01; T.4WD.SB.GAS18 |
54658-HC400 |
US $2.59 |
||
|
11515C
|
11515C
12096-HC400 Washer9906--01 ~ 0312--01; T.4WD.SB.GAS18 |
12096-HC400 |
US $9.65 |
||
|
11515C
|
11515C
12096-HC400 Washer9906--01 ~ 0312--01; T.4WD.SB.GAS18 |
12096-HC400 |
US $9.65 |
||
|
U946712350
|
U946712350
U9467-12350
ﾎﾞﾙﾄ
|
U9467-12350 |
— | ||
|
U946712350
|
U946712350
U9467-12350
ﾎﾞﾙﾄ
|
U9467-12350 |
— | ||
|
U975608200
|
U975608200
U9756-08200
ﾎﾞﾙﾄ
|
U9756-08200 |
— | ||
|
U978408200
|
U978408200
U9784-08200
ﾎﾞﾙﾄ
|
U9784-08200 |
— | ||
|
U978410160
|
U978410160
U9784-10160
ﾎﾞﾙﾄ
|
U9784-10160 |
— | ||
|
U978410160
|
U978410160
U9784-10160
ﾎﾞﾙﾄ
|
U9784-10160 |
— | ||
|
U979610250
|
U979610250
U9796-10250
ﾎﾞﾙﾄ
|
U9796-10250 |
— | ||
|
U979612200
|
U979612200
U9796-12200
ﾎﾞﾙﾄ
|
U9796-12200 |
— | ||
|
U994010010
|
U994010010
U9940-10010
ﾅﾂﾄ
|
U9940-10010 |
— | ||
|
U994010010
|
U994010010
U9940-10010
ﾅﾂﾄ
|
U9940-10010 |
— | ||
|
U994010010
|
U994010010
U9940-10010
ﾅﾂﾄ
|
U9940-10010 |
— | ||
|
U994010010
|
U994010010
U9940-10010
ﾅﾂﾄ
|
U9940-10010 |
— | ||
|
U994010010
|
U994010010
U9940-10010
ﾅﾂﾄ
|
U9940-10010 |
— |
