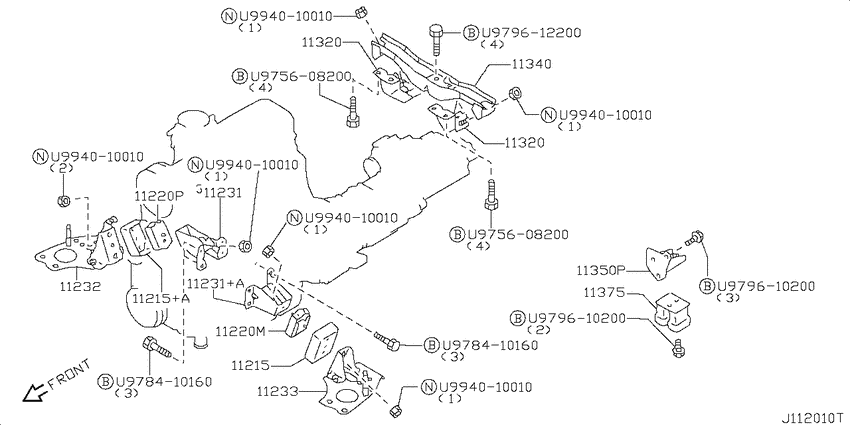

Engine & transmission mounting (2007-08-01 ~ ; V.4WD.SB.DIE20) Diagram Nissan VANETTE
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- DIE20
- drive
- 4WD.SB
- Number of doors
- 4D
- grade
- DX
- body
- V
- capacity
- 3/6P
- roof/floor
- HR.L
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11215
|
11215
11215-HC000 Stopper-Engine Mounting0708--01 ~ ; V.4WD.SB.DIE20 |
11215-HC000 |
US $27.55 |
||
|
11215
|
11215
11215-HC401 Stopper-Engine Mounting0708--01 ~ ; V.4WD.SB.DIE20 |
11215-HC401 |
US $24.91 |
||
|
11215+A
|
11215+A
11215-HC401 Stopper-Engine Mounting0708--01 ~ ; V.4WD.SB.DIE20 |
11215-HC401 |
US $24.91 |
||
|
11220M
|
11220M
11220-HA001
ｲﾝｼﾕﾚ-ﾀ- ｱﾂｾﾝﾌﾞﾘ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾌﾛﾝﾄ lh
0708--01 ~ ; V.4WD.SB.DIE20 |
11220-HA001 |
— | ||
|
11220P
|
11220P
11220-HC450 Insulator-Engine Mounting, Front0708--01 ~ ; V.4WD.SB.DIE20 |
11220-HC450 |
US $42.48 |
||
|
11231
|
11231
11232-HA703
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ
0708--01 ~ ; V.4WD.SB.DIE20 |
11232-HA703 |
— | ||
|
11231
|
11231
11231-HA700
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ
0708--01 ~ ; V.4WD.SB.DIE20 |
11231-HA700 |
— | ||
|
11231+A
|
11231+A
11231-HA700
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ
0708--01 ~ ; V.4WD.SB.DIE20 |
11231-HA700 |
— | ||
|
11232
|
11232
11232-HA701
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ rh
0708--01 ~ ; V.4WD.SB.DIE20 |
11232-HA701 |
— | ||
|
11233
|
11233
11233-HA700
ﾌﾞﾗｹﾂﾄ,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ lh
0708--01 ~ ; V.4WD.SB.DIE20 |
11233-HA700 |
— | ||
|
11320
|
11320
11320-HA500
ｲﾝｼﾕﾚ-ﾀ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
0708--01 ~ ; V.4WD.SB.DIE20 |
11320-HA500 |
— | ||
|
11320
|
11320
11320-HA500
ｲﾝｼﾕﾚ-ﾀ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
0708--01 ~ ; V.4WD.SB.DIE20 |
11320-HA500 |
— | ||
|
11340
|
11340
11310-HA500
ﾒﾝﾊﾞ- ｱﾂｾﾝﾌﾞﾘ-,ｴﾝｼﾞﾝ ﾏｳﾝﾃｲﾝｸﾞ ﾘﾔ
0708--01 ~ ; V.4WD.SB.DIE20 |
11310-HA500 |
— | ||
|
11350P
|
11350P
11350-HC430 Bracket Assy-Engine Mounting, Rear0708--01 ~ ; V.4WD.SB.DIE20 |
11350-HC430 |
US $25.63 |
||
|
11375
|
11375
11375-HC400 Damper Assy-Dynamic0708--01 ~ ; V.4WD.SB.DIE20 |
11375-HC400 |
US $107.14 |
||
|
U975608200
|
U975608200
U9756-08200
ﾎﾞﾙﾄ
|
U9756-08200 |
— | ||
|
U975608200
|
U975608200
U9756-08200
ﾎﾞﾙﾄ
|
U9756-08200 |
— | ||
|
U978410160
|
U978410160
U9784-10160
ﾎﾞﾙﾄ
|
U9784-10160 |
— | ||
|
U978410160
|
U978410160
U9784-10160
ﾎﾞﾙﾄ
|
U9784-10160 |
— | ||
|
U979610200
|
U979610200
U9796-10200
ﾎﾞﾙﾄ
|
U9796-10200 |
— | ||
|
U979610200
|
U979610200
U9796-10200
ﾎﾞﾙﾄ
|
U9796-10200 |
— | ||
|
U979612200
|
U979612200
U9796-12200
ﾎﾞﾙﾄ
|
U9796-12200 |
— | ||
|
U994010010
|
U994010010
U9940-10010
ﾅﾂﾄ
|
U9940-10010 |
— | ||
|
U994010010
|
U994010010
U9940-10010
ﾅﾂﾄ
|
U9940-10010 |
— | ||
|
U994010010
|
U994010010
U9940-10010
ﾅﾂﾄ
|
U9940-10010 |
— | ||
|
U994010010
|
U994010010
U9940-10010
ﾅﾂﾄ
|
U9940-10010 |
— | ||
|
U994010010
|
U994010010
U9940-10010
ﾅﾂﾄ
|
U9940-10010 |
— | ||
|
U994010010
|
U994010010
U9940-10010
ﾅﾂﾄ
|
U9940-10010 |
— |
