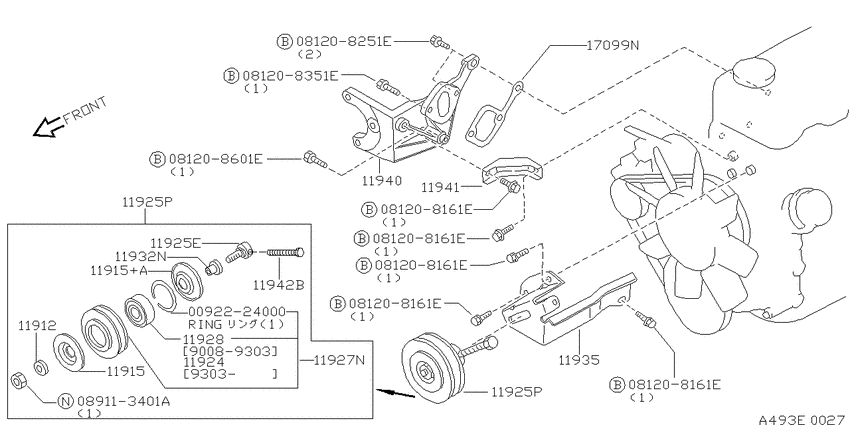

Power steering pump mounting (1990-08-01 ~ ; T.SB.NA20S) Diagram Nissan VANETTE
- Year
- 1990 - 2012
- Sales region
- Japan
- Engine
- NA20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092224000
|
0092224000
00922-24000 RING-SNAP |
00922-24000 |
US $2.45 |
||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208161E
|
081208161E
081208161E Bolt-hexagon |
081208161E |
from US $0.57 |
||
|
081208251E
|
081208251E
08120-8251E Bolt-hexagon |
08120-8251E |
US $2.21 |
||
|
081208351E
|
081208351E
081208351E Bolt-hexagon |
081208351E |
US $0.52 |
||
|
081208601E
|
081208601E
08120-8601E
Bolt-hexagon
|
08120-8601E |
— | ||
|
089113401A
|
089113401A
089113401A NUTHEX |
089113401A |
US $0.57 |
||
|
11912
|
11912
11931G5501 Spacer-Idler Pulley9303--01 ~ ; T.SB.NA20S |
11931G5501 |
US $5.04 |
||
|
11915
|
11915
11929-85G00 Cover-Dust9303--01 ~ ; T.SB.NA20S |
11929-85G00 |
US $5.04 |
||
|
11915
|
11915
11930-G5501 Cover-Idler Pulley9303--01 ~ ; T.SB.NA20S |
11930-G5501 |
US $6.34 |
||
|
11915+A
|
11915+A
11930-G5501 Cover-Idler Pulley9303--01 ~ ; T.SB.NA20S |
11930-G5501 |
US $6.34 |
||
|
11924
|
11924
11924W3421 Bearing-Ball, Idler Pulley9303--01 ~ ; T.SB.NA20S |
11924W3421 |
US $12.91 |
||
|
11925E
|
11925E
11928-03G00 Shaft9303--01 ~ ; T.SB.NA20S |
11928-03G00 |
US $10.22 |
||
|
11925P
|
11925P
11945-03G00 Pulley-Power Steering9008--01 ~ 9303--01; T.SB.NA20S |
11945-03G00 |
US $140.26 |
||
| replacement | |||||
|
11925P
|
11925P
11945-03G01
Pulley Assy-Idler
9008--01 ~ 9303--01; T.SB.NA20S |
11945-03G01 |
— | ||
|
11925P
|
11925P
1194585G00 Pulley Assy-Idler9303--01 ~ ; T.SB.NA20S |
1194585G00 |
US $110.30 |
||
|
11925P
|
11925P
11945-03G00 Pulley-Power Steering9008--01 ~ 9303--01; T.SB.NA20S |
11945-03G00 |
US $140.26 |
||
| replacement | |||||
|
11925P
|
11925P
11945-03G01
Pulley Assy-Idler
9008--01 ~ 9303--01; T.SB.NA20S |
11945-03G01 |
— | ||
|
11925P
|
11925P
1194585G00 Pulley Assy-Idler9303--01 ~ ; T.SB.NA20S |
1194585G00 |
US $110.30 |
||
|
11927N
|
11927N
11927-03G00 Pulley-Idler9303--01 ~ ; T.SB.NA20S |
11927-03G00 |
US $51.98 |
||
|
11928
|
11928
11924W3420 Bearing-Ball, Idler Pulley9008--01 ~ 9303--01; T.SB.NA20S |
11924W3420 |
US $8.80 |
||
|
11928
|
11928
11924W3420 Bearing-Ball, Idler Pulley9008--01 ~ ; *NA20S; ｽﾀﾝﾀﾞ-ﾄﾞ ｴｱｺﾝ ｼﾖｳ |
11924W3420 |
US $8.80 |
||
|
11932N
|
11932N
11932-85G00 Collar-Idler Pulley9303--01 ~ ; T.SB.NA20S |
11932-85G00 |
US $5.04 |
||
|
11935
|
11935
11946-85G00 Bracket-Idler Pulley9008--01 ~ ; T.SB.NA20S |
11946-85G00 |
US $54 |
||
|
11935
|
11935
11926-85G01 Bracket-Idler Pulley9008--01 ~ ; *NA20S; ｽﾀﾝﾀﾞ-ﾄﾞ ｴｱｺﾝ ｼﾖｳ |
11926-85G01 |
US $45.07 |
||
|
11940
|
11940
11940-85G01 Bracket-Power Steering Oil Pump9008--01 ~ ; T.SB.NA20S |
11940-85G01 |
US $82.80 |
||
|
11941
|
11941
11941-27T00 Support-Power Steering9008--01 ~ ; T.SB.NA20S |
11941-27T00 |
US $26.93 |
||
|
11942B
|
11942B
11948-G5501 Bolt-Adjust9303--01 ~ ; T.SB.NA20S |
11948-G5501 |
US $11.66 |
||
|
17099N
|
17099N
1709985G01 Gasket-Fuel Pump9008--01 ~ ; T.SB.NA20S |
1709985G01 |
US $3.31 |
||
