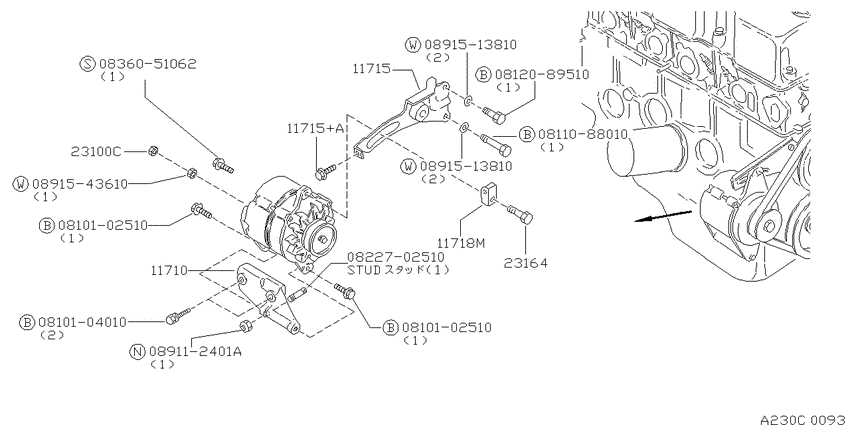

Alternator fitting (1988-11-01 ~ 1990-08-01; Z20S) Diagram Nissan VANETTE
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- Z20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0810104010
|
0810104010
08101-04010
Bolt-hexagon
|
08101-04010 |
— | ||
|
0811088010
|
0811088010
08110-88010
Bolt-hexagon
|
08110-88010 |
— | ||
|
0812089510
|
0812089510
08120-89510
Bolt-hexagon
|
08120-89510 |
— | ||
|
0822702510
|
0822702510
08227-02510
STUD
|
08227-02510 |
— | ||
|
0836051062
|
0836051062
08360-51062
ｽｸﾘﾕ-,ﾏｼﾝ
|
08360-51062 |
— | ||
|
089112401A
|
089112401A
089112401A Nut |
089112401A |
US $2.21 |
||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891513810
|
0891513810
08915-13810
ﾜﾂｼﾔ-,ｽﾌﾟﾘﾝｸﾞ
|
08915-13810 |
— | ||
|
0891543610
|
0891543610
08915-43610
ﾜﾂｼﾔ-,ﾌﾟﾚ-ﾝ
|
08915-43610 |
— | ||
|
11710
|
11710
11710-T5500 Bracket-Alternator8811--01 ~ 9008--01; Z20S |
11710-T5500 |
US $40.46 |
||
|
11715
|
11715
11715-21C00 Bar-Adjusting, Alternator8811--01 ~ 9008--01; Z20S |
11715-21C00 |
US $31.97 |
||
|
11715
|
11715
11715-R2201 Bolt8811--01 ~ 9008--01; Z20S |
11715-R2201 |
US $7.06 |
||
|
11715+A
|
11715+A
11715-R2201 Bolt8811--01 ~ 9008--01; Z20S |
11715-R2201 |
US $7.06 |
||
|
11718M
|
11718M
11942-D4000 Bracket-Alternator Adjust Bolt8811--01 ~ 9008--01; Z20S |
11942-D4000 |
US $15.98 |
||
| replacement | |||||
|
11718M
|
11718M
11942-D400A
Bracket-alternator adjust bolt
8811--01 ~ 9008--01; Z20S |
11942-D400A |
— | ||
|
23100C
|
23100C
01221-00241 NUT8811--01 ~ 9008--01; Z20S; M6 |
01221-00241 |
US $1.73 |
||
|
23164
|
23164
23164-H0100 Bolt8811--01 ~ 9008--01; Z20S |
23164-H0100 |
US $1.73 |
||
| replacement | |||||
|
23164
|
23164
081208201F Bolt-hexagon8811--01 ~ 9008--01; Z20S |
081208201F |
US $0.57 |
||
