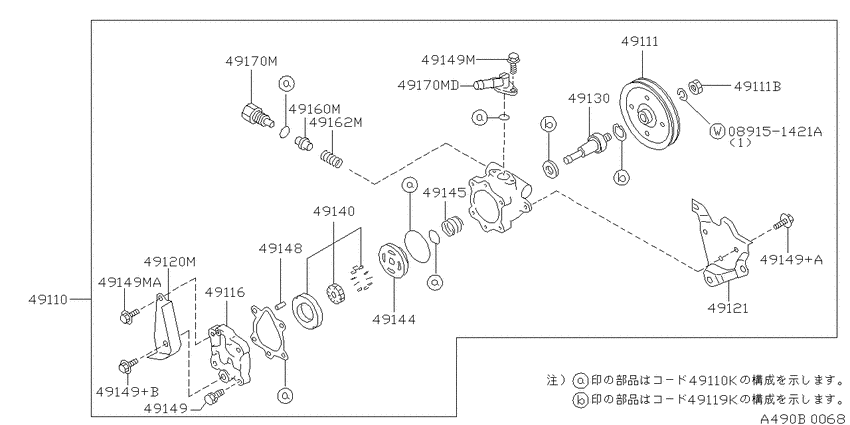

Power steering pump (1988-11-01 ~ 1990-08-01; Z20S) Diagram Nissan VANETTE
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- Z20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089151421A
|
089151421A
089151421A Washer-Copper |
089151421A |
from US $0.19 |
||
|
49110
|
49110
49110-15C11 ﾎﾟﾝﾌﾟ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ8811--01 ~ 9008--01; Z20S |
49110-15C11 |
US $1,275.82 |
||
|
49110
|
49110
4959150L26 Seal Kit-Power Steering Pump8811--01 ~ 9008--01; LD20.GL.MT +Z20S |
4959150L26 |
from US $15.11 |
||
|
49110K
|
49110K
4959150L26 Seal Kit-Power Steering Pump8811--01 ~ 9008--01; LD20.GL.MT +Z20S |
4959150L26 |
from US $15.11 |
||
|
49111
|
49111
49132-17C00 Pulley-Power Steering Pump8811--01 ~ 9008--01; Z20S |
49132-17C00 |
US $106.27 |
||
|
49111
|
49111
49133-50L00 Nut-Pulley, Power Steering Pump8811--01 ~ 9008--01; FD.4WD.LD20 +LD20.GL.MT +Z20S |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111
|
49111
4913350L0A Nut-Pulley, Power Steering Pump8811--01 ~ 9008--01; FD.4WD.LD20 +LD20.GL.MT +Z20S |
4913350L0A |
US $1.73 |
||
|
49111B
|
49111B
49133-50L00 Nut-Pulley, Power Steering Pump8811--01 ~ 9008--01; FD.4WD.LD20 +LD20.GL.MT +Z20S |
49133-50L00 |
US $1.73 |
||
| replacement | |||||
|
49111B
|
49111B
4913350L0A Nut-Pulley, Power Steering Pump8811--01 ~ 9008--01; FD.4WD.LD20 +LD20.GL.MT +Z20S |
4913350L0A |
US $1.73 |
||
|
49116
|
49116
49116-51E00 COVER-REAR,POWER STEERING PUMP8811--01 ~ 9008--01; Z20S |
49116-51E00 |
US $33.70 |
||
|
49119K
|
49119K
4911950L25 Seal Set-Drive Shaft8811--01 ~ 9008--01; FD.4WD.LD20 +LD20.GL.MT +Z20S |
4911950L25 |
from US $10.69 |
||
|
49120M
|
49120M
49122-22C10 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ8811--01 ~ 9008--01; Z20S |
49122-22C10 |
US $33.41 |
||
|
49121
|
49121
49121-22C00 ﾌﾞﾗｹﾂﾄ ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ8811--01 ~ 9008--01; Z20S |
49121-22C00 |
US $123.41 |
||
|
49130
|
49130
49130-29C00 Shaft-Drive, Power Steering Pump8811--01 ~ 9008--01; Z20S |
49130-29C00 |
US $45.05 |
||
|
49140
|
49140
49140-28N00 Rotor & Camring Set-Power Steering Pump8811--01 ~ 9008--01; Z20S |
49140-28N00 |
US $158.40 |
||
|
49144
|
49144
49144-15V00 Plate-Side, Power Steering Pump8811--01 ~ 9008--01; Z20S +LD20 |
49144-15V00 |
US $31.68 |
||
|
49145
|
49145
49145-19V00 Spring-Side Plate8811--01 ~ 9008--01; Z20S +LD20 |
49145-19V00 |
US $11.09 |
||
|
49148
|
49148
49148-15V00 Pin-Camring, Power Steering Pump8811--01 ~ 9008--01; Z20S |
49148-15V00 |
US $2.49 |
||
|
49149
|
49149
49149-F6601 Bolt-Bracket, Power Steering Pump8811--01 ~ 9008--01; Z20S |
49149-F6601 |
US $4.32 |
||
|
49149
|
49149
49149-15V00 Bolt-Bracket, Power Steering Pump8811--01 ~ 9008--01; Z20S |
49149-15V00 |
US $6.19 |
||
|
49149
|
49149
49149-57J00 Bolt-Bracket, Power Steering Pump8811--01 ~ 9008--01; Z20S |
49149-57J00 |
US $3.46 |
||
|
49149
|
49149
49164-16V00 Bolt-Power Steering Pump8811--01 ~ 9008--01; Z20S |
49164-16V00 |
US $4.90 |
||
|
49149
|
49149
49164-15C10 Bolt-Power Steering Pump8811--01 ~ 9008--01; Z20S |
49164-15C10 |
US $2.59 |
||
| replacement | |||||
|
49149
|
49149
49164-0E00A Bolt-Power Steering Pump8811--01 ~ 9008--01; Z20S |
49164-0E00A |
from US $2.88 |
||
|
49149+A
|
49149+A
49149-15V00 Bolt-Bracket, Power Steering Pump8811--01 ~ 9008--01; Z20S |
49149-15V00 |
US $6.19 |
||
|
49149+B
|
49149+B
49149-57J00 Bolt-Bracket, Power Steering Pump8811--01 ~ 9008--01; Z20S |
49149-57J00 |
US $3.46 |
||
|
49149M
|
49149M
49164-16V00 Bolt-Power Steering Pump8811--01 ~ 9008--01; Z20S |
49164-16V00 |
US $4.90 |
||
|
49149M
|
49149M
49164-15C10 Bolt-Power Steering Pump8811--01 ~ 9008--01; Z20S |
49164-15C10 |
US $2.59 |
||
| replacement | |||||
|
49149M
|
49149M
49164-0E00A Bolt-Power Steering Pump8811--01 ~ 9008--01; Z20S |
49164-0E00A |
from US $2.88 |
||
|
49149MA
|
49149MA
49164-15C10 Bolt-Power Steering Pump8811--01 ~ 9008--01; Z20S |
49164-15C10 |
US $2.59 |
||
| replacement | |||||
|
49149MA
|
49149MA
49164-0E00A Bolt-Power Steering Pump8811--01 ~ 9008--01; Z20S |
49164-0E00A |
from US $2.88 |
||
|
49160M
|
49160M
49165-19V00 Valve Assy-Flow Control8811--01 ~ 9008--01; Z20S +LD20 |
49165-19V00 |
US $42.19 |
||
|
49162M
|
49162M
4916719V00 Spring-Flow Control Valve8811--01 ~ 9008--01; Z20S +LD20 |
4916719V00 |
US $10.94 |
||
|
49170M
|
49170M
49170-35F00 Joint-Outlet, Power Steering Pump8811--01 ~ 9008--01; Z20S |
49170-35F00 |
US $44.50 |
||
|
49170M
|
49170M
49160-17C00 ｺﾈｸﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ8811--01 ~ 9008--01; Z20S |
49160-17C00 |
US $42.05 |
||
|
49170MD
|
49170MD
49160-17C00 ｺﾈｸﾀ- ｱﾂｾﾝﾌﾞﾘ-,ﾊﾟﾜ- ｽﾃｱﾘﾝｸﾞ ﾎﾟﾝﾌﾟ8811--01 ~ 9008--01; Z20S |
49160-17C00 |
US $42.05 |
||
