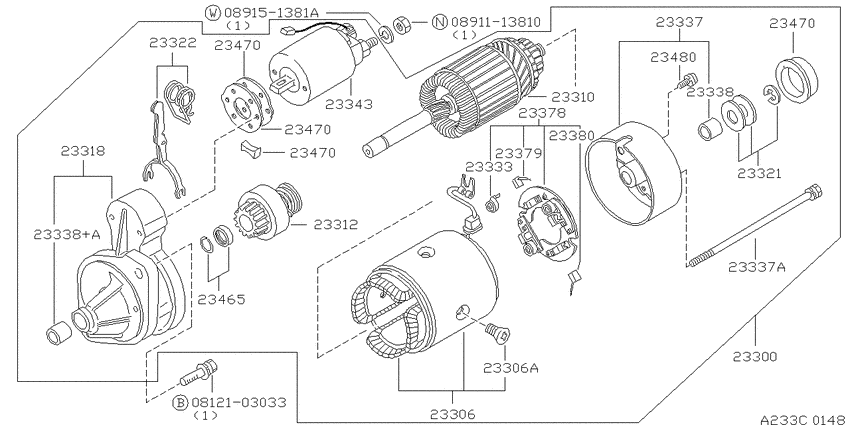

Starter motor (1988-11-01 ~ 1990-08-01; 日立; Z20S) Diagram Nissan VANETTE
- Year
- 1988 - 1990
- Sales region
- Japan
- Engine
- Z20S
- transmission
- MT
- grade
- GLL
- body
- T.SB
- floor/drive
- FD.4WD
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0812103033
|
0812103033
08121-03033
Bolt-hexagon
|
08121-03033 |
— | ||
|
0891113810
|
0891113810
08911-13810
Гайка
|
08911-13810 |
— | ||
|
089151381A
|
089151381A
089151381A WASHER-SPRING |
089151381A |
from US $0.57 |
||
|
23300
|
23300
23300-18C01 Motor Assy-Starter8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ S114-607A |
23300-18C01 |
US $784.46 |
||
|
23300
|
23300
23300-G8400 Motor Assy-Starter8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23300-G8400 |
US $897.74 |
||
|
23306
|
23306
23306-W0401 Coil Assy-Field8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23306-W0401 |
US $300.19 |
||
|
23306
|
23306
23305-U0100 Screw-Pole Core Set8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23305-U0100 |
US $4.18 |
||
|
23306A
|
23306A
23305-U0100 Screw-Pole Core Set8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23305-U0100 |
US $4.18 |
||
|
23310
|
23310
23310-77A00 Armature Assy8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23310-77A00 |
US $318.60 |
||
|
23310
|
23310
23310-D0200 Armature Assy8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23310-D0200 |
from US $339.40 |
||
|
23312
|
23312
23312-42L60 Pinion Assy8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23312-42L60 |
US $113.76 |
||
|
23312
|
23312
23312-D0100 Pinion Assy8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23312-D0100 |
US $116.06 |
||
|
23318
|
23318
23318-G8400 Case Assy-Gear8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23318-G8400 |
US $111.74 |
||
|
23318
|
23318
23318-W0402 Case Assy-Gear8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23318-W0402 |
US $103.97 |
||
|
23321
|
23321
23321-N3300 Washer Set-Thrust8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23321-N3300 |
US $4.18 |
||
|
23321
|
23321
23369-42L60 Washer Set-Thrust8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23369-42L60 |
US $4.03 |
||
|
23322
|
23322
23322-42L60 Lever Set-Shift8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23322-42L60 |
US $13.10 |
||
|
23322
|
23322
23322-M8100 Lever Set-Shift8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23322-M8100 |
US $12.67 |
||
|
23333
|
23333
23333-M8000 Spring-Brush8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23333-M8000 |
US $6.48 |
||
|
23337
|
23337
23337-80W00 Cover Assy-Rear8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23337-80W00 |
US $38.45 |
||
|
23337
|
23337
23337-G8400 Cover Assy-Rear8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23337-G8400 |
US $47.23 |
||
|
23337
|
23337
23340-M4900 Bolt-Through8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337
|
23337
23340N5900 Bolt-Through8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23340N5900 |
US $4.61 |
||
|
23337A
|
23337A
23340-M4900 Bolt-Through8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23340-M4900 |
US $4.18 |
||
|
23337A
|
23337A
23340N5900 Bolt-Through8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23340N5900 |
US $4.61 |
||
|
23338
|
23338
23338-16E01 METAL-REAR COVER9008--01 ~ ; *NA20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｼﾖｳ |
23338-16E01 |
US $7.49 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23338N3300 |
US $5.18 |
||
|
23338
|
23338
23338-16E01 METAL-REAR COVER8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23338-16E01 |
US $7.49 |
||
|
23338
|
23338
23338N3300 Metal-Rear Cover8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23338+A
|
23338+A
23338-16E01 METAL-REAR COVER8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23338-16E01 |
US $7.49 |
||
|
23338+A
|
23338+A
23338N3300 Metal-Rear Cover8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23338N3300 |
US $5.18 |
||
|
23343
|
23343
23343-18C01 Switch Assy-Magnetic8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23343-18C01 |
US $129.02 |
||
| replacement | |||||
|
23343
|
23343
23343-18C02 Switch Assy-Magnetic8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23343-18C02 |
US $155.52 |
||
|
23343
|
23343
23343-G8400 Switch Assy-Magnetic8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23343-G8400 |
US $129.02 |
||
| replacement | |||||
|
23343
|
23343
23343-84A06 Switch Assy-Magnetic8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23343-84A06 |
US $141.84 |
||
|
23378
|
23378
23378-77A01 Holder Assy-Brush8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23378-77A01 |
US $44.35 |
||
|
23378
|
23378
23378-M8101 Holder Assy-Brush8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23378-M8101 |
US $26.21 |
||
|
23379
|
23379
23379-M0102 Brush-Minus8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23379-M0102 |
US $8.06 |
||
|
23379
|
23379
23379-M8001 Brush-Minus8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23379-M8001 |
US $6.19 |
||
|
23380
|
23380
23380-77A01 Brush-Plus8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23380-77A01 |
US $9.94 |
||
|
23380
|
23380
23380-M0101 Brush-Plus8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23380-M0101 |
US $8.06 |
||
|
23465
|
23465
23465-80W00 Stopper Set-Pinion8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23465-80W00 |
US $7.49 |
||
|
23470
|
23470
23470-77A00 Cover Set-Dust8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23470-77A00 |
US $11.23 |
||
|
23470
|
23470
23470-M8001 Cover Set-Dust8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23470-M8001 |
US $10.08 |
||
|
23470
|
23470
23470-77A00 Cover Set-Dust8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23470-77A00 |
US $11.23 |
||
|
23470
|
23470
23470-M8001 Cover Set-Dust8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23470-M8001 |
US $10.08 |
||
|
23470
|
23470
23470-77A00 Cover Set-Dust8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23470-77A00 |
US $11.23 |
||
|
23470
|
23470
23470-M8001 Cover Set-Dust8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23470-M8001 |
US $10.08 |
||
|
23470
|
23470
23470-77A00 Cover Set-Dust8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23470-77A00 |
US $11.23 |
||
|
23470
|
23470
23470-M8001 Cover Set-Dust8811--01 ~ 9008--01; Z20S; ﾋﾀﾁ |
23470-M8001 |
US $10.08 |
||
|
23480
|
23480
23480-M0100 Screw Set8811--01 ~ 9008--01; *Z20S; ﾋﾀﾁ ｶﾝﾚｲﾁ ｺﾞｸｶﾝﾚｲﾁ ｼﾖｳ |
23480-M0100 |
US $4.18 |
||
