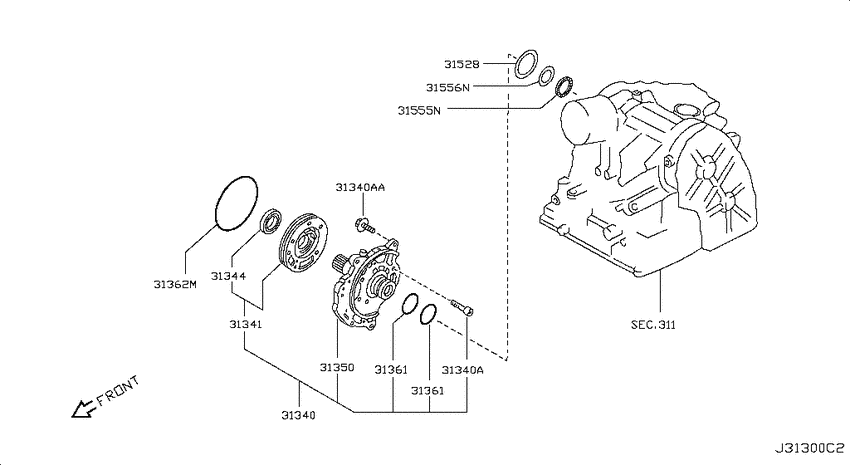

Oil pump (2008-09-01 ~ ; AT) Diagram Nissan VERSA
- Year
- 2008 - 2011
- Sales region
- U.S.A.
- Engine
- HR16DE
- transmission
- AT
- grade
- BASE
- body
- SED
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
311
|
Torque converter,housing & case
311
|
||||
|
311
|
Torque converter,housing & case
311
|
||||
|
31340
|
31340
31340-31X06 Pump Assy-Oil2008-09-01 ~ ; AT; , |
31340-31X06 |
US $423.20 |
||
|
31340
|
31340
31377-31X00 Bolt2009-09-01 ~ ; AT; , |
31377-31X00 |
US $2.45 |
||
|
31340
|
31340
31377-31X07 Bolt2008-11-01 ~ 2009-09-01; HR16DE.AT; , |
31377-31X07 |
US $3.46 |
||
|
31340A
|
31340A
31377-31X00 Bolt2009-09-01 ~ ; AT; , |
31377-31X00 |
US $2.45 |
||
|
31340A
|
31340A
31377-31X07 Bolt2008-11-01 ~ 2009-09-01; HR16DE.AT; , |
31377-31X07 |
US $3.46 |
||
|
31340AA
|
31340AA
31377-31X07 Bolt2008-11-01 ~ 2009-09-01; HR16DE.AT; , |
31377-31X07 |
US $3.46 |
||
|
31341
|
31341
31341-31X00 Housing Assy-Oil Pump2008-09-01 ~ ; AT; , |
31341-31X00 |
US $152.64 |
||
|
31344
|
31344
3137531X03 Seal-Oil Pump Housing2009-09-01 ~ ; AT; , |
3137531X03 |
from US $3.43 |
||
|
31350
|
31350
31350-31X04 Cover Assy-Oil Pump2008-09-01 ~ ; AT; , |
31350-31X04 |
US $187.20 |
||
|
31361
|
31361
31525-31X12 Ring-Seal2008-09-01 ~ ; AT; , |
31525-31X12 |
US $10.80 |
||
|
31361
|
31361
31525-31X12 Ring-Seal2008-09-01 ~ ; AT; , |
31525-31X12 |
US $10.80 |
||
|
31362M
|
31362M
3152631X13 Seal-O Ring2008-09-01 ~ ; AT; , |
3152631X13 |
from US $6.19 |
||
|
31528
|
31528
31508-31X10 Washer-Thrust2009-09-01 ~ ; *HR16DE.AT; SELECT T=0.65 |
31508-31X10 |
US $2.36 |
||
|
31528
|
31528
31508-31X11 Washer-Thrust2008-09-01 ~ ; AT; SELECT T=0.80 |
31508-31X11 |
US $2.45 |
||
|
31528
|
31528
31508-31X12 Washer-Thrust2009-09-01 ~ ; *HR16DE.AT; SELECT T=0.95 |
31508-31X12 |
US $2.45 |
||
|
31528
|
31528
31508-31X13 Washer-Thrust2009-09-01 ~ ; *HR16DE.AT; SELECT T=1.10 |
31508-31X13 |
US $2.45 |
||
|
31528
|
31528
31508-31X14 Washer-Thrust2009-09-01 ~ ; *HR16DE.AT; SELECT T=1.25 |
31508-31X14 |
US $2.45 |
||
|
31528
|
31528
31508-31X15 Washer-Thrust2009-09-01 ~ ; *HR16DE.AT; SELECT T=1.40 |
31508-31X15 |
US $2.45 |
||
|
31555N
|
31555N
31407-31X10 Bearing-Needle, Thrust2008-09-01 ~ ; AT; , |
31407-31X10 |
US $4.18 |
||
|
31556N
|
31556N
31435-31X01 Race-Bearing2008-11-01 ~ 2009-09-01; HR16DE.AT; SELECT T=0.6 |
31435-31X01 |
from US $5.33 |
||
|
31556N
|
31556N
31435-31X02 Race-Bearing2008-11-01 ~ 2009-09-01; HR16DE.AT; SELECT T=0.8 |
31435-31X02 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X03 Race-Bearing2009-09-01 ~ ; AT; SELECT T=1.0 |
31435-31X03 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X04 Race-Bearing2008-11-01 ~ 2009-09-01; HR16DE.AT; SELECT T=1.2 |
31435-31X04 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X05 Race-Bearing2008-11-01 ~ 2009-09-01; HR16DE.AT; SELECT T=1.4 |
31435-31X05 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X06 Race-Bearing2008-11-01 ~ 2009-09-01; HR16DE.AT; SELECT T=1.6 |
31435-31X06 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X07 Race-Bearing2008-11-01 ~ 2009-09-01; HR16DE.AT; SELECT T=1.8 |
31435-31X07 |
US $5.33 |
||
|
31556N
|
31556N
31435-31X08 Race-Bearing2008-11-01 ~ 2009-09-01; HR16DE.AT; SELECT T=2.0 |
31435-31X08 |
US $5.33 |
||
