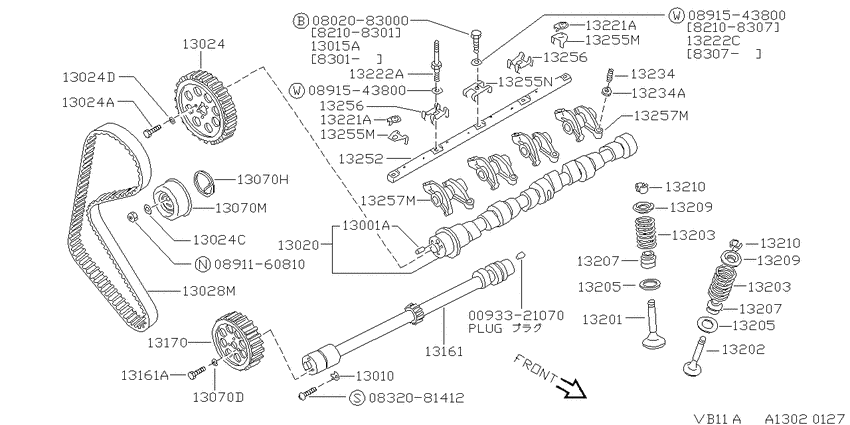

cam shaft & ﾊﾞﾙﾌﾞ ﾒｶﾆｽﾞﾑ (1982-10-01 ~ ; E13S +E15S) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 1983 - 2012
- Sales region
- Japan
- Engine
- E13S
- transmission
- F4
- Number of doors
- 2V
- grade
- CT
- capacity
- 2S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0093321070
|
0093321070
00933-21070 PLUG-TAPER |
00933-21070 |
US $2.33 |
||
|
0832081412
|
0832081412
08320-81412
ｽｸﾘﾕ-,ﾏｼﾝ
|
08320-81412 |
— | ||
|
0891160810
|
0891160810
08911-60810 NUTHEX |
08911-60810 |
US $1.65 |
||
|
0891543800
|
0891543800
08915-43800
WASHER-PLAIN
|
08915-43800 |
— | ||
| replacement | |||||
|
0891543800
|
0891543800
089154382A
WASHERPLAIN
|
089154382A |
— | ||
|
0891543800
|
0891543800
08915-43800
WASHER-PLAIN
|
08915-43800 |
— | ||
| replacement | |||||
|
0891543800
|
0891543800
089154382A
WASHERPLAIN
|
089154382A |
— | ||
|
13001A
|
13001A
1303218000 Dowel-Camshaft8210--01 ~ ; E13S+E15S |
1303218000 |
from US $0.57 |
||
|
13010
|
13010
13010-01M00 Plate-Locating, Camshaft8210--01 ~ ; E13S+E15S |
13010-01M00 |
US $5.47 |
||
|
13015A
|
13015A
01111-00552
BOLT
8301--01 ~ ; E13S+E15S |
01111-00552 |
— | ||
|
13020
|
13020
13020-01M02 Camshaft Assy8210--01 ~ ; E13S |
13020-01M02 |
US $294.53 |
||
|
13024
|
13024
13024-01M00 Sprocket-Camshaft8210--01 ~ ; E13S+E15S; ｼﾖｳｹﾂ ﾌﾟ-ﾘ- |
13024-01M00 |
US $71.57 |
||
|
13024
|
13024
13024-01M01 Sprocket-Camshaft8210--01 ~ ; E13S+E15S; ﾊﾞﾝｷﾝ ﾌﾟ-ﾘ- |
13024-01M01 |
US $78.05 |
||
|
13024
|
13024
01111-00572 BOLT-SPROCKET,CAMSHAFT8210--01 ~ 8307--01; E13S+E15S; ﾊﾞﾝｷﾝ ﾌﾟ-ﾘ- ﾆ ｼﾖｳ |
01111-00572 |
US $1.73 |
||
|
13024
|
13024
01111-00661 BOLT-SPROCKET,CAMSHAFT8307--01 ~ 8805--01; E13S+E15S; L=14 ﾊﾞﾝｷﾝ ﾌﾟ-ﾘ- ﾖｳ |
01111-00661 |
US $1.73 |
||
|
13024
|
13024
01111-00691 BOLT-SPROCKET,CAMSHAFT8210--01 ~ 8805--01; E13S+E15S; L=19 ｼﾖｳｹﾂ ﾌﾟ-ﾘ- ﾖｳ |
01111-00691 |
US $1.73 |
||
|
13024
|
13024
09340-0010P Washer-Plain8210--01 ~ 8805--01; E13S+E15S |
09340-0010P |
US $1.73 |
||
|
13024
|
13024
08915-53610 WASHER-LOCK8210--01 ~ 8302--01; E13S+E15S |
08915-53610 |
US $1.73 |
||
|
13024
|
13024
13026-01M00 Washer-Lock8302--01 ~ ; E13S+E15S |
13026-01M00 |
US $2.45 |
||
|
13024A
|
13024A
01111-00572 BOLT-SPROCKET,CAMSHAFT8210--01 ~ 8307--01; E13S+E15S; ﾊﾞﾝｷﾝ ﾌﾟ-ﾘ- ﾆ ｼﾖｳ |
01111-00572 |
US $1.73 |
||
|
13024A
|
13024A
01111-00661 BOLT-SPROCKET,CAMSHAFT8307--01 ~ 8805--01; E13S+E15S; L=14 ﾊﾞﾝｷﾝ ﾌﾟ-ﾘ- ﾖｳ |
01111-00661 |
US $1.73 |
||
|
13024A
|
13024A
01111-00691 BOLT-SPROCKET,CAMSHAFT8210--01 ~ 8805--01; E13S+E15S; L=19 ｼﾖｳｹﾂ ﾌﾟ-ﾘ- ﾖｳ |
01111-00691 |
US $1.73 |
||
|
13024C
|
13024C
09340-0010P Washer-Plain8210--01 ~ 8805--01; E13S+E15S |
09340-0010P |
US $1.73 |
||
|
13024D
|
13024D
08915-53610 WASHER-LOCK8210--01 ~ 8302--01; E13S+E15S |
08915-53610 |
US $1.73 |
||
|
13024D
|
13024D
13026-01M00 Washer-Lock8302--01 ~ ; E13S+E15S |
13026-01M00 |
US $2.45 |
||
|
13028M
|
13028M
AY440NS028 Belt-Timing8210--01 ~ ; E13S; ﾂﾊﾞｷﾓﾄ |
AY440NS028 |
US $106.27 |
||
|
13070D
|
13070D
08915-53610 WASHER-LOCK8210--01 ~ 8302--01; E13S+E15S |
08915-53610 |
US $1.73 |
||
|
13070D
|
13070D
13171-01M00 Washer-Lock8302--01 ~ ; E13S+E15S |
13171-01M00 |
US $1.73 |
||
|
13070H
|
13070H
13072-01M00 Spring-Tensioner8210--01 ~ ; E13S+E15S |
13072-01M00 |
from US $1.30 |
||
|
13070M
|
13070M
AY460NS002 Tensioner Assy-Belt8210--01 ~ ; E13S+E15S |
AY460NS002 |
US $104.40 |
||
|
13161
|
13161
13160-01M00
Jackshaft Assy
8210--01 ~ ; E13S+E15S |
13160-01M00 |
— | ||
|
13161
|
13161
01111-00572 BOLT-SPROCKET,CAMSHAFT8210--01 ~ 8307--01; E13S+E15S; ﾊﾞﾝｷﾝ ﾌﾟ-ﾘ- ﾆ ｼﾖｳ |
01111-00572 |
US $1.73 |
||
|
13161
|
13161
01111-00661 BOLT-SPROCKET,CAMSHAFT8307--01 ~ ; E13S+E15S; L=14 ﾊﾞﾝｷﾝ ﾌﾟ-ﾘ- ﾖｳ |
01111-00661 |
US $1.73 |
||
|
13161
|
13161
01111-00681 BOLT-JACKSHAFT8210--01 ~ 8805--01; E13S+E15S; L=17.5 ｼﾖｳｹﾂ ﾌﾟ-ﾘ- ﾖｳ |
01111-00681 |
US $1.73 |
||
|
13161A
|
13161A
01111-00572 BOLT-SPROCKET,CAMSHAFT8210--01 ~ 8307--01; E13S+E15S; ﾊﾞﾝｷﾝ ﾌﾟ-ﾘ- ﾆ ｼﾖｳ |
01111-00572 |
US $1.73 |
||
|
13161A
|
13161A
01111-00661 BOLT-SPROCKET,CAMSHAFT8307--01 ~ ; E13S+E15S; L=14 ﾊﾞﾝｷﾝ ﾌﾟ-ﾘ- ﾖｳ |
01111-00661 |
US $1.73 |
||
|
13161A
|
13161A
01111-00681 BOLT-JACKSHAFT8210--01 ~ 8805--01; E13S+E15S; L=17.5 ｼﾖｳｹﾂ ﾌﾟ-ﾘ- ﾖｳ |
01111-00681 |
US $1.73 |
||
|
13170
|
13170
13170-01M00 Pulley-Jackshaft8210--01 ~ ; E13S+E15S; ｼﾖｳｹﾂ ﾌﾟ-ﾘ- |
13170-01M00 |
US $29.81 |
||
|
13170
|
13170
13170-01M02 Pulley-Jackshaft8210--01 ~ ; E13S+E15S; ﾊﾞﾝｷﾝ ﾌﾟ-ﾘ- |
13170-01M02 |
US $32.98 |
||
|
13201
|
13201
13201-01M00 Valve-Intake8210--01 ~ ; E13S+E15S |
13201-01M00 |
US $22.75 |
||
| replacement | |||||
|
13201
|
13201
13201-05M00
Valve-Intake
8210--01 ~ ; E13S+E15S |
13201-05M00 |
— | ||
|
13202
|
13202
13202-01M00 Valve-Exhaust8210--01 ~ 8612--01; E13S+E15S |
13202-01M00 |
US $29.23 |
||
|
13202
|
13202
13202-50A00 Valve-Exhaust8612--01 ~ ; E13S+E15S |
13202-50A00 |
US $29.23 |
||
|
13203
|
13203
13203-01M00 Spring-Valve, Outer8210--01 ~ ; E13S+E15S |
13203-01M00 |
US $5.04 |
||
|
13203
|
13203
13203-01M00 Spring-Valve, Outer8210--01 ~ ; E13S+E15S |
13203-01M00 |
US $5.04 |
||
|
13205
|
13205
13205-01M00 Seat-Valve Spring, Outer8210--01 ~ ; E13S+E15S |
13205-01M00 |
US $2.02 |
||
|
13205
|
13205
13205-01M00 Seat-Valve Spring, Outer8210--01 ~ ; E13S+E15S |
13205-01M00 |
US $2.02 |
||
|
13207
|
13207
13207-01M01 Seal-Oil, Valve8210--01 ~ ; E13S+E15S |
13207-01M01 |
US $5.18 |
||
|
13207
|
13207
13207-01M01 Seal-Oil, Valve8210--01 ~ ; E13S+E15S |
13207-01M01 |
US $5.18 |
||
|
13209
|
13209
13209-01M00 Retainer-valve spring8210--01 ~ ; E13S+E15S |
13209-01M00 |
US $3.46 |
||
|
13209
|
13209
13209-01M00 Retainer-valve spring8210--01 ~ ; E13S+E15S |
13209-01M00 |
US $3.46 |
||
|
13210
|
13210
13210-01M01 Collet-Valve Spring8210--01 ~ ; E13S+E15S |
13210-01M01 |
US $1.93 |
||
|
13210
|
13210
13210-01M01 Collet-Valve Spring8210--01 ~ ; E13S+E15S |
13210-01M01 |
US $1.93 |
||
|
13221A
|
13221A
1325401M00 Bolt-Stopper8302--01 ~ ; E13S+E15S |
1325401M00 |
from US $3.88 |
||
|
13221A
|
13221A
1325401M00 Bolt-Stopper8302--01 ~ ; E13S+E15S |
1325401M00 |
from US $3.88 |
||
|
13222A
|
13222A
01111-00552
BOLT
8805--01 ~ ; E13S+E15S; |
01111-00552 |
— | ||
|
13222A
|
13222A
13224-15M00 Bolt-Rocker Shaft8210--01 ~ 8805--01; E13S+E15S |
13224-15M00 |
US $3.46 |
||
|
13222C
|
13222C
01311-00501 WASHER-PLAIN8307--01 ~ ; E13S+E15S |
01311-00501 |
US $1.73 |
||
|
13234
|
13234
13287-W0400 Screw-Adjust, Valve Rocker8210--01 ~ ; E13S+E15S |
13287-W0400 |
US $5.55 |
||
|
13234
|
13234
0122500112 NUT-LOCK,ROCKER PIVOT SCREW8210--01 ~ 8704--01; E13S+E15S |
0122500112 |
US $1.73 |
||
|
13234
|
13234
13288-H5000 Nut-Lock, Rocker Pivot Screw8704--01 ~ ; E13S+E15S |
13288-H5000 |
from US $0.57 |
||
|
13234A
|
13234A
0122500112 NUT-LOCK,ROCKER PIVOT SCREW8210--01 ~ 8704--01; E13S+E15S |
0122500112 |
US $1.73 |
||
|
13234A
|
13234A
13288-H5000 Nut-Lock, Rocker Pivot Screw8704--01 ~ ; E13S+E15S |
13288-H5000 |
from US $0.57 |
||
|
13252
|
13252
13252-01M00 Shaft-Rocker8210--01 ~ ; E13S+E15S |
13252-01M00 |
US $52.56 |
||
|
13255M
|
13255M
13255-01M00 Retainer-Rocker Shaft8210--01 ~ ; E13S+E15S |
13255-01M00 |
US $3.46 |
||
|
13255M
|
13255M
13255-01M00 Retainer-Rocker Shaft8210--01 ~ ; E13S+E15S |
13255-01M00 |
US $3.46 |
||
|
13255N
|
13255N
13260-01M00 Retainer-Rocker Shaft, Center8210--01 ~ ; E13S+E15S |
13260-01M00 |
US $2.02 |
||
|
13256
|
13256
13256-01M00 Spring-Rocker8210--01 ~ ; E13S+E15S |
13256-01M00 |
US $2.02 |
||
|
13256
|
13256
13256-01M00 Spring-Rocker8210--01 ~ ; E13S+E15S |
13256-01M00 |
US $2.02 |
||
|
13257M
|
13257M
13257-01M01
Rocker-Valve
8210--01 ~ 8404--01; E13S+E15S; ｾﾝﾀｸ ｼﾖｳ ｱﾂｷﾞ |
13257-01M01 |
— | ||
|
13257M
|
13257M
13257-01M02
Rocker-Valve
8210--01 ~ 8402--01; E13S+E15S; ｾﾝﾀｸ ｼﾖｳ ﾆﾎﾝ ﾋﾟｽﾄﾝﾘﾝ ｸﾞ |
13257-01M02 |
— | ||
|
13257M
|
13257M
13257-01M03 Rocker-Valve8404--01 ~ 8805--01; E13S+E15S; ｾﾝﾀｸ ｼﾖｳ ｱﾂｷﾞ |
13257-01M03 |
US $21.89 |
||
|
13257M
|
13257M
13257-01M05 Rocker-Valve8805--01 ~ ; E13S+E15S; ｾﾝﾀｸ ｼﾖｳ ﾆﾎﾝ ﾋﾟｽﾄﾝﾘﾝ ｸﾞ |
13257-01M05 |
US $28.66 |
||
|
13257M
|
13257M
13257-01M13 Rocker-Valve8402--01 ~ 8509--01; E13S+E15S; ﾆﾎﾝ ﾋﾟｽﾄﾝﾘﾝｸﾞ |
13257-01M13 |
US $23.04 |
||
|
13257M
|
13257M
13257-01M01
Rocker-Valve
8210--01 ~ 8404--01; E13S+E15S; ｾﾝﾀｸ ｼﾖｳ ｱﾂｷﾞ |
13257-01M01 |
— | ||
|
13257M
|
13257M
13257-01M02
Rocker-Valve
8210--01 ~ 8402--01; E13S+E15S; ｾﾝﾀｸ ｼﾖｳ ﾆﾎﾝ ﾋﾟｽﾄﾝﾘﾝ ｸﾞ |
13257-01M02 |
— | ||
|
13257M
|
13257M
13257-01M03 Rocker-Valve8404--01 ~ 8805--01; E13S+E15S; ｾﾝﾀｸ ｼﾖｳ ｱﾂｷﾞ |
13257-01M03 |
US $21.89 |
||
|
13257M
|
13257M
13257-01M05 Rocker-Valve8805--01 ~ ; E13S+E15S; ｾﾝﾀｸ ｼﾖｳ ﾆﾎﾝ ﾋﾟｽﾄﾝﾘﾝ ｸﾞ |
13257-01M05 |
US $28.66 |
||
|
13257M
|
13257M
13257-01M13 Rocker-Valve8402--01 ~ 8509--01; E13S+E15S; ﾆﾎﾝ ﾋﾟｽﾄﾝﾘﾝｸﾞ |
13257-01M13 |
US $23.04 |
||
