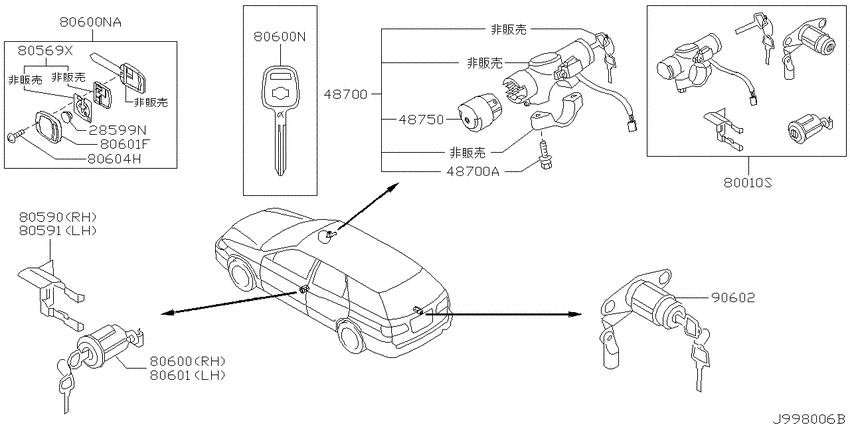

Key set & blank key (2002-08-01 ~ 2005-12-01; V) Diagram Nissan WINGROAD/AD/EXPERT
- Year
- 2005 - 2012
- Sales region
- Japan
- Engine
- QG18DE
- drive
- 2WD
- grade
- L/G
- body
- V
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
28599N
|
28599N
28599C9900 Battery-Key9906--01 ~ 0001--01; *V.(L/G+LX/G) |
28599C9900 |
US $4.32 |
||
|
48700
|
48700
D8700-6J300 Lock Set-Steering0101--01 ~ 0512--01; EV.2WD.YD22DD.(LX/G+L/G).AT +V.2WD.YD22DD.VX/G +V.4WD.YD22DD +V.QG18DE |
D8700-6J300 |
US $159.84 |
||
|
48700
|
48700
D8700-6J301 Lock Set-Steering9906--01 ~ 0101--01; EV.2WD.YD22DD.(LX/G+L/G).AT +V.2WD.YD22DD.VX/G +V.4WD.YD22DD +V.QG18DE |
D8700-6J301 |
US $133.20 |
||
|
48700
|
48700
48703-06F00 Screw-Steering Lock9906--01 ~ 0512--01; V |
48703-06F00 |
US $2.45 |
||
|
48700A
|
48700A
48703-06F00 Screw-Steering Lock9906--01 ~ 0512--01; V |
48703-06F00 |
US $2.45 |
||
|
48750
|
48750
487500M010 Switch-Ignition9906--01 ~ 0001--01; V |
487500M010 |
from US $34.43 |
||
|
80010S
|
80010S
K9810-WA410 ｷ- ｾﾂﾄ,ｼﾘﾝﾀﾞ- ﾛﾂｸ9906--01 ~ 0101--01; HV.2WD.YD22DD.(LX/G+L/G).AT +V.4WD.YD22DD.(LX/G+L/G) +V.QG18DE.(L/G+LX/G) |
K9810-WA410 |
US $277.92 |
||
|
80010S
|
80010S
K9810-WA411 ｷ- ｾﾂﾄ,ｼﾘﾝﾀﾞ- ﾛﾂｸ0101--01 ~ 0208--01; HV.2WD.YD22DD.(LX/G+L/G).AT +V.4WD.YD22DD.(LX/G+L/G) +V.QG18DE.(L/G+LX/G) |
K9810-WA411 |
US $277.92 |
||
|
80010S
|
80010S
K9810-WA510 ｷ- ｾﾂﾄ,ｼﾘﾝﾀﾞ- ﾛﾂｸ9906--01 ~ 0101--01; K*V.2WD.YD22DD.(LX/G+L/G).AT +*V.4WD.YD22DD.(LX/G+L/G) +*V.QG18DE.(L/G+LX/G) |
K9810-WA510 |
US $594.72 |
||
|
80010S
|
80010S
K9810-WA511 ｷ- ｾﾂﾄ,ｼﾘﾝﾀﾞ- ﾛﾂｸ0101--01 ~ 0208--01; K*V.2WD.YD22DD.(LX/G+L/G).AT +*V.4WD.YD22DD.(LX/G+L/G) +*V.QG18DE.(L/G+LX/G) |
K9810-WA511 |
US $594.72 |
||
|
80010S
|
80010S
K9810WA910 ﾛﾂｸｷ- ｾﾂﾄ0208--01 ~ 0512--01; HV.2WD.YD22DD.(LX/G+L/G).AT +V.4WD.YD22DD.(LX/G+L/G) +V.QG18DE.(L/G+LX/G) |
K9810WA910 |
US $277.92 |
||
|
80010S
|
80010S
K9810-WA920 ｷ- ｾﾂﾄ,ｼﾘﾝﾀﾞ- ﾛﾂｸ0208--01 ~ 0512--01; K*V.2WD.YD22DD.(LX/G+L/G).AT +*V.4WD.YD22DD.(LX/G+L/G) +*V.QG18DE.(L/G+LX/G) |
K9810-WA920 |
US $540.91 |
||
|
80569X
|
80569X
285A1-C9920
Print Board Assy-Remote
9906--01 ~ 0001--01; *V.(L/G+LX/G) |
285A1-C9920 |
— | ||
| replacement | |||||
|
80569X
|
80569X
285A1C9910 ﾌﾟﾘﾝﾄ ﾎﾞ-ﾄﾞ ｱﾂｾ9906--01 ~ 0001--01; *V.(L/G+LX/G) |
285A1C9910 |
US $131.95 |
||
|
80569X
|
80569X
285A1C9924 Print Board Assy-Remote0208--01 ~ 0512--01; *V.(L/G+LX/G) |
285A1C9924 |
US $107.43 |
||
|
80590
|
80590
80590-WA100 Clip-Retainer, Cylinder Lock Rh9906--01 ~ 0512--01; V |
80590-WA100 |
US $6.48 |
||
|
80591
|
80591
80591-WA100 Clip-Retainer, Cylinder Lock Lh9906--01 ~ 0512--01; V |
80591-WA100 |
US $6.48 |
||
|
80600
|
80600
H0600-3J100 Cylinder Set-Door Lock, Rh9906--01 ~ 0001--01; V |
H0600-3J100 |
US $40.61 |
||
|
80600
|
80600
80678-WA000 Stay-Key Cylinder, Rh9906--01 ~ 0512--01; V |
80678-WA000 |
US $2.59 |
||
|
80600
|
80600
H0564-4P000 Key-Blank, Master9906--01 ~ 0001--01; V.(L/G+LX/G) |
H0564-4P000 |
US $9.15 |
||
|
80600
|
80600
H0564AU100 Key-Blank, Master0208--01 ~ 0512--01; V.(L/G+LX/G) |
H0564AU100 |
from US $5.51 |
||
|
80600
|
80600
H0564-C9920 Key-Blank, Master9906--01 ~ 0001--01; *V.(L/G+LX/G); [B208] |
H0564-C9920 |
US $141.42 |
||
|
80600
|
80600
H0564-C9924
Key-Blank, Master
0208--01 ~ 0512--01; *V.(L/G+LX/G); [B517] |
H0564-C9924 |
— | ||
|
80600N
|
80600N
H0564-4P000 Key-Blank, Master9906--01 ~ 0001--01; V.(L/G+LX/G) |
H0564-4P000 |
US $9.15 |
||
|
80600N
|
80600N
H0564AU100 Key-Blank, Master0208--01 ~ 0512--01; V.(L/G+LX/G) |
H0564AU100 |
from US $5.51 |
||
|
80600N
|
80600N
H0564-C9920 Key-Blank, Master9906--01 ~ 0001--01; *V.(L/G+LX/G); [B208] |
H0564-C9920 |
US $141.42 |
||
|
80600N
|
80600N
H0564-C9924
Key-Blank, Master
0208--01 ~ 0512--01; *V.(L/G+LX/G); [B517] |
H0564-C9924 |
— | ||
|
80600NA
|
80600NA
H0564-C9920 Key-Blank, Master9906--01 ~ 0001--01; *V.(L/G+LX/G); [B208] |
H0564-C9920 |
US $141.42 |
||
|
80600NA
|
80600NA
H0564-C9924
Key-Blank, Master
0208--01 ~ 0512--01; *V.(L/G+LX/G); [B517] |
H0564-C9924 |
— | ||
|
80601
|
80601
H0601-3J100 Cylinder Set-Door Lock, Lh9906--01 ~ 0001--01; V |
H0601-3J100 |
US $44.64 |
||
| replacement | |||||
|
80601
|
80601
H0600-3J125 Cylinder Set-Door Lock, Rh9906--01 ~ 0001--01; V |
H0600-3J125 |
US $40.61 |
||
|
80601
|
80601
285A0C9912 Cover-Case9906--01 ~ 0001--01; *V.(L/G+LX/G) |
285A0C9912 |
US $22.32 |
||
|
80601
|
80601
285A0C9920 Cover-Case0101--01 ~ 0208--01; K*V.2WD.YD22DD.(LX/G+L/G).AT +*V.4WD.YD22DD.(LX/G+L/G) +*V.QG18DE.(L/G+LX/G) |
285A0C9920 |
US $48.39 |
||
|
80601
|
80601
285A0C9924 Cover-Case0208--01 ~ 0512--01; *V.(L/G+LX/G) |
285A0C9924 |
US $37.15 |
||
|
80601
|
80601
80679-WA000 Stay-Key Cylinder, Lh9906--01 ~ 0512--01; V |
80679-WA000 |
US $14.98 |
||
|
80601
|
80601
285A0C9920 Cover-Case9906--01 ~ 0208--01; *V.(L/G+LX/G) |
285A0C9920 |
US $48.39 |
||
|
80601F
|
80601F
285A0C9912 Cover-Case9906--01 ~ 0001--01; *V.(L/G+LX/G) |
285A0C9912 |
US $22.32 |
||
|
80601F
|
80601F
285A0C9920 Cover-Case0101--01 ~ 0208--01; K*V.2WD.YD22DD.(LX/G+L/G).AT +*V.4WD.YD22DD.(LX/G+L/G) +*V.QG18DE.(L/G+LX/G) |
285A0C9920 |
US $48.39 |
||
|
80601F
|
80601F
285A0C9924 Cover-Case0208--01 ~ 0512--01; *V.(L/G+LX/G) |
285A0C9924 |
US $37.15 |
||
|
80604H
|
80604H
23132C9900 Screw9906--01 ~ 0001--01; *V.(L/G+LX/G) |
23132C9900 |
US $6.09 |
||
|
90602
|
90602
K0600-WA400 ｼﾘﾝﾀﾞ- ｾﾂﾄ,ﾊﾞﾂｸ ﾄﾞｱ ﾛﾂｸ9906--01 ~ 0001--01; V |
K0600-WA400 |
US $82.22 |
||
