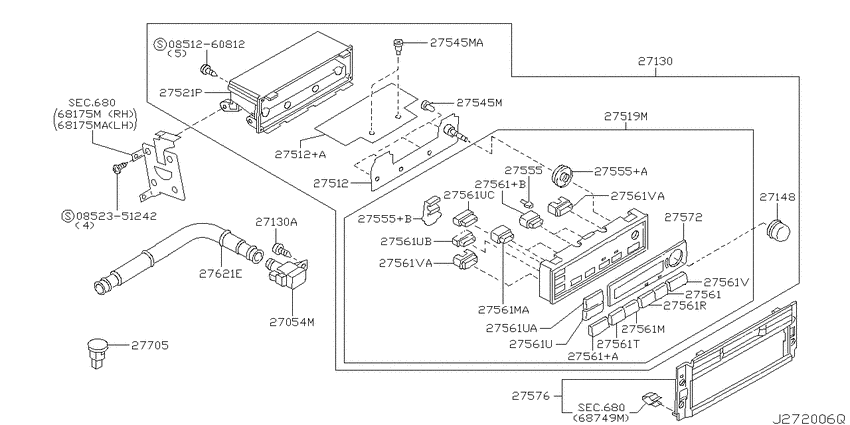

Control unit (2000-10-01 ~ 2003-06-01; オートエアコン; W.SR20VET +W.X) Diagram Nissan X-TRAIL
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 4WD
- transmission
- AT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0851260812
|
0851260812
08512-60812
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08512-60812 |
— | ||
|
0852351242
|
0852351242
0852351242
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
0852351242 |
— | ||
|
27054M
|
27054M
2772015U00
Sensor-Incar
0010--01 ~ ; W.SR20VET +W.X |
2772015U00 |
— | ||
| replacement | |||||
|
27054M
|
27054M
27720-3AA0A Sensor-Incar0010--01 ~ ; W.SR20VET +W.X |
27720-3AA0A |
from US $31.10 |
||
|
27130
|
27130
27500-8H300
ｺﾝﾄﾛ-ﾙ ｱﾂｾﾝﾌﾞﾘ-
0010--01 ~ 0110--01; W.X |
27500-8H300 |
— | ||
|
27130
|
27130
27500-8H301
ｺﾝﾄﾛ-ﾙ ｱﾂｾﾝﾌﾞﾘ-
0110--01 ~ 0201--01; W.X |
27500-8H301 |
— | ||
|
27130
|
27130
27500-8H302
Controller Assy-Air Conditiner
0201--01 ~ 0306--01; W.X |
27500-8H302 |
— | ||
|
27130
|
27130
27500-EQ000
ｺﾝﾄﾛ-ﾙ ｱﾂｾﾝﾌﾞﾘ-
0306--01 ~ 0512--01; W.X |
27500-EQ000 |
— | ||
|
27130
|
27130
27500ES50A
ｺﾝﾄﾛ-ﾙ assy
0512--01 ~ ; W.X |
27500ES50A |
— | ||
|
27130
|
27130
0145100581 SCREW0010--01 ~ ; W.SR20VET +W.X |
0145100581 |
from US $1.67 |
||
|
27130A
|
27130A
0145100581 SCREW0010--01 ~ ; W.SR20VET +W.X |
0145100581 |
from US $1.67 |
||
|
27148
|
27148
27560-8H301
Knob-Control
0010--01 ~ 0306--01; W.SR20VET +W.X |
27560-8H301 |
— | ||
|
27512
|
27512
27512-8H310
Amplifier-Control
0010--01 ~ 0306--01; W.SR20VET +W.X |
27512-8H310 |
— | ||
|
27512
|
27512
27512-8H320
Amplifier-Control
0010--01 ~ 0306--01; W.X |
27512-8H320 |
— | ||
|
27512+A
|
27512+A
27512-8H320
Amplifier-Control
0010--01 ~ 0306--01; W.X |
27512-8H320 |
— | ||
|
27519M
|
27519M
27519-8H300
Case-Controller
0010--01 ~ 0306--01; W.SR20VET +W.X |
27519-8H300 |
— | ||
|
27521P
|
27521P
27518-8H301
Cover-Control
0010--01 ~ 0306--01; W.SR20VET +W.X |
27518-8H301 |
— | ||
|
27545M
|
27545M
275451W600 Lamp Assy-Heater Control0010--01 ~ 0306--01; W.SR20VET +W.X |
275451W600 |
from US $6.81 |
||
|
27545M
|
27545M
275458E100 LAMP ASSY-HEATER CONTROL0010--01 ~ 0306--01; W.SR20VET +W.X |
275458E100 |
US $6.60 |
||
|
27545MA
|
27545MA
275458E100 LAMP ASSY-HEATER CONTROL0010--01 ~ 0306--01; W.SR20VET +W.X |
275458E100 |
US $6.60 |
||
|
27555
|
27555
27555-8H301
Lens-Heater Controller
0010--01 ~ 0306--01; W.SR20VET +W.X |
27555-8H301 |
— | ||
|
27555
|
27555
27555-8H302
Lens-Heater Controller
0010--01 ~ 0306--01; W.SR20VET +W.X |
27555-8H302 |
— | ||
|
27555
|
27555
27555-8H303
Lens-Heater Controller
0010--01 ~ 0306--01; W.SR20VET +W.X |
27555-8H303 |
— | ||
|
27555+A
|
27555+A
27555-8H302
Lens-Heater Controller
0010--01 ~ 0306--01; W.SR20VET +W.X |
27555-8H302 |
— | ||
|
27555+B
|
27555+B
27555-8H303
Lens-Heater Controller
0010--01 ~ 0306--01; W.SR20VET +W.X |
27555-8H303 |
— | ||
|
27561
|
27561
27568-8H301
Button-Air Conditioner
0010--01 ~ 0306--01; W.SR20VET +W.X |
27568-8H301 |
— | ||
|
27561
|
27561
275A0-VD20A
Button-Air Conditioner
0512--01 ~ ; W.SR20VET +W.X; ﾌｧﾝ |
275A0-VD20A |
— | ||
|
27561
|
27561
275A0-8H300
Button-Air Conditioner
0010--01 ~ 0306--01; W.SR20VET +W.X |
275A0-8H300 |
— | ||
|
27561
|
27561
275A3-VD20A
Button-Air Conditioner
0512--01 ~ ; W.SR20VET +W.X; ﾃﾝﾌﾟ |
275A3-VD20A |
— | ||
|
27561
|
27561
27568-8H302
Button-Air Conditioner
0010--01 ~ 0306--01; W.SR20VET +W.X |
27568-8H302 |
— | ||
|
27561
|
27561
27562-8H300
Button-Ventilator
0010--01 ~ 0306--01; W.SR20VET +W.X |
27562-8H300 |
— | ||
|
27561
|
27561
27562-8H301
Button-Ventilator
0010--01 ~ 0306--01; W.SR20VET +W.X |
27562-8H301 |
— | ||
|
27561
|
27561
27566-8H300
Button-Defroster
0010--01 ~ 0306--01; W.SR20VET +W.X |
27566-8H300 |
— | ||
|
27561
|
27561
275A1-8H300
Button-Fan
0010--01 ~ 0306--01; W.SR20VET +W.X |
275A1-8H300 |
— | ||
|
27561
|
27561
275A1-EQ000
Button-Fan
0306--01 ~ 0512--01; W.SR20VET +W.X |
275A1-EQ000 |
— | ||
|
27561
|
27561
27567-8H301
Button-Recirculation
0010--01 ~ 0306--01; W.SR20VET +W.X |
27567-8H301 |
— | ||
|
27561
|
27561
27567-8H302
Button-Recirculation
0010--01 ~ 0306--01; W.SR20VET +W.X |
27567-8H302 |
— | ||
|
27561
|
27561
27567-8H303
Button-Recirculation
0010--01 ~ 0306--01; W.SR20VET +W.X |
27567-8H303 |
— | ||
|
27561
|
27561
27567-8H304
Button-Recirculation
0010--01 ~ 0306--01; W.SR20VET +W.X |
27567-8H304 |
— | ||
|
27561
|
27561
27561-8H300
Button-Auto Air Conditioner
0010--01 ~ 0306--01; W.SR20VET +W.X |
27561-8H300 |
— | ||
|
27561
|
27561
27561-8H301
Button-Auto Air Conditioner
0010--01 ~ 0306--01; W.SR20VET +W.X |
27561-8H301 |
— | ||
|
27561
|
27561
275A4-CC000
Button-Mode
0512--01 ~ ; W.SR20VET +W.X; ﾓｰﾄﾞ[B517] |
275A4-CC000 |
— | ||
|
27561
|
27561
275A4-EQ000
Button-Mode
0306--01 ~ 0512--01; W.SR20VET +W.X |
275A4-EQ000 |
— | ||
|
27561+A
|
27561+A
275A0-8H300
Button-Air Conditioner
0010--01 ~ 0306--01; W.SR20VET +W.X |
275A0-8H300 |
— | ||
|
27561+A
|
27561+A
275A3-VD20A
Button-Air Conditioner
0512--01 ~ ; W.SR20VET +W.X; ﾃﾝﾌﾟ |
275A3-VD20A |
— | ||
|
27561+B
|
27561+B
27568-8H302
Button-Air Conditioner
0010--01 ~ 0306--01; W.SR20VET +W.X |
27568-8H302 |
— | ||
|
27561M
|
27561M
27562-8H300
Button-Ventilator
0010--01 ~ 0306--01; W.SR20VET +W.X |
27562-8H300 |
— | ||
|
27561M
|
27561M
27562-8H301
Button-Ventilator
0010--01 ~ 0306--01; W.SR20VET +W.X |
27562-8H301 |
— | ||
|
27561MA
|
27561MA
27562-8H301
Button-Ventilator
0010--01 ~ 0306--01; W.SR20VET +W.X |
27562-8H301 |
— | ||
|
27561R
|
27561R
27566-8H300
Button-Defroster
0010--01 ~ 0306--01; W.SR20VET +W.X |
27566-8H300 |
— | ||
|
27561T
|
27561T
275A1-8H300
Button-Fan
0010--01 ~ 0306--01; W.SR20VET +W.X |
275A1-8H300 |
— | ||
|
27561T
|
27561T
275A1-EQ000
Button-Fan
0306--01 ~ 0512--01; W.SR20VET +W.X |
275A1-EQ000 |
— | ||
|
27561U
|
27561U
27567-8H301
Button-Recirculation
0010--01 ~ 0306--01; W.SR20VET +W.X |
27567-8H301 |
— | ||
|
27561U
|
27561U
27567-8H302
Button-Recirculation
0010--01 ~ 0306--01; W.SR20VET +W.X |
27567-8H302 |
— | ||
|
27561U
|
27561U
27567-8H303
Button-Recirculation
0010--01 ~ 0306--01; W.SR20VET +W.X |
27567-8H303 |
— | ||
|
27561U
|
27561U
27567-8H304
Button-Recirculation
0010--01 ~ 0306--01; W.SR20VET +W.X |
27567-8H304 |
— | ||
|
27561UA
|
27561UA
27567-8H302
Button-Recirculation
0010--01 ~ 0306--01; W.SR20VET +W.X |
27567-8H302 |
— | ||
|
27561UB
|
27561UB
27567-8H303
Button-Recirculation
0010--01 ~ 0306--01; W.SR20VET +W.X |
27567-8H303 |
— | ||
|
27561UC
|
27561UC
27567-8H304
Button-Recirculation
0010--01 ~ 0306--01; W.SR20VET +W.X |
27567-8H304 |
— | ||
|
27561V
|
27561V
27561-8H300
Button-Auto Air Conditioner
0010--01 ~ 0306--01; W.SR20VET +W.X |
27561-8H300 |
— | ||
|
27561V
|
27561V
27561-8H301
Button-Auto Air Conditioner
0010--01 ~ 0306--01; W.SR20VET +W.X |
27561-8H301 |
— | ||
|
27561VA
|
27561VA
27561-8H301
Button-Auto Air Conditioner
0010--01 ~ 0306--01; W.SR20VET +W.X |
27561-8H301 |
— | ||
|
27561VA
|
27561VA
27561-8H301
Button-Auto Air Conditioner
0010--01 ~ 0306--01; W.SR20VET +W.X |
27561-8H301 |
— | ||
|
27572
|
27572
275728H310
Panel-Finisher
0010--01 ~ 0306--01; W.SR20VET +W.X |
275728H310 |
— | ||
|
27576
|
27576
27575-8H300
Finisher-Controller, Air Conditioner
0010--01 ~ 0306--01; W; [A602] |
27575-8H300 |
— | ||
|
27621E
|
27621E
27727-0W700 Duct-Aspirator0610--01 ~ ; W.SR20VET +W.X |
27727-0W700 |
US $14.40 |
||
|
27621E
|
27621E
27727-70T00 Duct-Aspirator0010--01 ~ 0108--01; W.SR20VET +W.X |
27727-70T00 |
US $11.09 |
||
|
27621E
|
27621E
27727-8H301 Duct-Aspirator0108--01 ~ 0306--01; W.SR20VET +W.X |
27727-8H301 |
US $7.63 |
||
|
27621E
|
27621E
27727-AU001 Duct-Aspirator0306--01 ~ 0610--01; W.SR20VET +W.X |
27727-AU001 |
US $8.21 |
||
|
27705
|
27705
27721-4P000
Sensor Assy-Sun
0010--01 ~ ; W.SR20VET +W.X |
27721-4P000 |
— | ||
| replacement | |||||
|
27705
|
27705
27721-3AA0A Sensor Assy-Sun0010--01 ~ ; W.SR20VET +W.X |
27721-3AA0A |
from US $33.17 |
||
|
