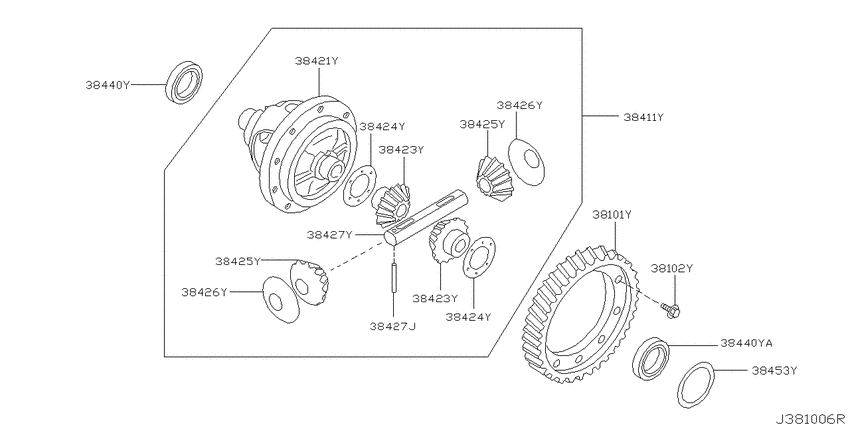

Front final drive (2000-10-01 ~ ; 4WD.QR20DE.AT) Diagram Nissan X-TRAIL
- Year
- 2000 - 2012
- Sales region
- Japan
- Engine
- QR20DE
- drive
- 4WD
- transmission
- AT
- grade
- X
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
38101Y
|
38101Y
38101-80X19 Gear-Final Drive0010--01 ~ 0305--01; 4WD.QR20DE.AT |
38101-80X19 |
US $200.16 |
||
|
38101Y
|
38101Y
38101-81X06 Gear-Final Drive0305--01 ~ ; 4WD.QR20DE.AT |
38101-81X06 |
US $152.64 |
||
|
38102Y
|
38102Y
3810280X00 Bolt-Drive Gear0010--01 ~ ; 4WD.QR20DE.AT |
3810280X00 |
from US $1.20 |
||
|
38411Y
|
38411Y
38411-81X21 Case Compl-Differential0010--01 ~ ; 4WD.QR20DE.AT |
38411-81X21 |
US $774.55 |
||
|
38421Y
|
38421Y
38421-81X21 Case-Differential0010--01 ~ ; 4WD.QR20DE.AT |
38421-81X21 |
US $372.41 |
||
|
38423Y
|
38423Y
38423-81X00 Gear-Side0010--01 ~ ; 4WD.QR20DE.AT |
38423-81X00 |
US $100.80 |
||
|
38423Y
|
38423Y
38423-81X00 Gear-Side0010--01 ~ ; 4WD.QR20DE.AT |
38423-81X00 |
US $100.80 |
||
|
38424Y
|
38424Y
38424-81X00 Washer-Thrust, Side Gear0010--01 ~ ; 4WD.QR20DE.AT; T=0.75 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-81X00 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X01 Washer-Thrust, Side Gear0010--01 ~ ; 4WD.QR20DE.AT; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-81X01 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X02 Washer-Thrust, Side Gear0010--01 ~ ; 4WD.QR20DE.AT; T=0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-81X02 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X03 Washer-Thrust, Side Gear0010--01 ~ ; 4WD.QR20DE.AT; T=0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-81X03 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-81X04 Washer-Thrust, Side Gear0010--01 ~ ; 4WD.QR20DE.AT; T=0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-81X04 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-81X00 Washer-Thrust, Side Gear0010--01 ~ ; 4WD.QR20DE.AT; T=0.75 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-81X00 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X01 Washer-Thrust, Side Gear0010--01 ~ ; 4WD.QR20DE.AT; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-81X01 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X02 Washer-Thrust, Side Gear0010--01 ~ ; 4WD.QR20DE.AT; T=0.85 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-81X02 |
US $4.85 |
||
|
38424Y
|
38424Y
38424-81X03 Washer-Thrust, Side Gear0010--01 ~ ; 4WD.QR20DE.AT; T=0.90 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-81X03 |
US $4.18 |
||
|
38424Y
|
38424Y
38424-81X04 Washer-Thrust, Side Gear0010--01 ~ ; 4WD.QR20DE.AT; T=0.95 ｾﾝﾀｸｼﾃ ｼﾖｳ |
38424-81X04 |
US $4.18 |
||
|
38425Y
|
38425Y
38425-81X00 Pinion-Mate0010--01 ~ 0103--01; 4WD.QR20DE.AT |
38425-81X00 |
US $47.95 |
||
|
38425Y
|
38425Y
38425-81X01 Pinion-Mate0103--01 ~ ; 4WD.QR20DE.AT |
38425-81X01 |
US $43.49 |
||
|
38425Y
|
38425Y
38425-81X00 Pinion-Mate0010--01 ~ 0103--01; 4WD.QR20DE.AT |
38425-81X00 |
US $47.95 |
||
|
38425Y
|
38425Y
38425-81X01 Pinion-Mate0103--01 ~ ; 4WD.QR20DE.AT |
38425-81X01 |
US $43.49 |
||
|
38426Y
|
38426Y
38426-81X00 Washer-Thrust, Pinion Mate0010--01 ~ ; 4WD.QR20DE.AT |
38426-81X00 |
US $3.46 |
||
|
38426Y
|
38426Y
38426-81X00 Washer-Thrust, Pinion Mate0010--01 ~ ; 4WD.QR20DE.AT |
38426-81X00 |
US $3.46 |
||
|
38427J
|
38427J
38428U1500 Pin-Lock, Pinion Shaft0010--01 ~ ; 4WD.QR20DE.AT |
38428U1500 |
from US $0.50 |
||
|
38427Y
|
38427Y
38427-81X01
Shaft-Pinion Mate
0010--01 ~ ; 4WD.QR20DE.AT |
38427-81X01 |
— | ||
|
38440Y
|
38440Y
31408-1XD02 Bearing-Differential Side0209--01 ~ 0512--01; 4WD.QR20DE.AT; ﾐｷﾞ ﾖｳ |
31408-1XD02 |
US $35.14 |
||
|
38440Y
|
38440Y
31408-80X15 Bearing-Differential Side0010--01 ~ 0209--01; 4WD.QR20DE.AT; ﾐｷﾞ ﾖｳ |
31408-80X15 |
US $46.80 |
||
|
38440Y
|
38440Y
31408-1XD01 Bearing-Differential Side0209--01 ~ 0512--01; 4WD.QR20DE.AT; ﾋﾀﾞﾘ ﾖｳ |
31408-1XD01 |
US $35.14 |
||
|
38440Y
|
38440Y
31408-80X14 Bearing-Differential Side0010--01 ~ 0209--01; 4WD.QR20DE.AT; ﾋﾀﾞﾘ ﾖｳ |
31408-80X14 |
US $55.58 |
||
|
38440YA
|
38440YA
31408-1XD01 Bearing-Differential Side0209--01 ~ 0512--01; 4WD.QR20DE.AT; ﾋﾀﾞﾘ ﾖｳ |
31408-1XD01 |
US $35.14 |
||
|
38440YA
|
38440YA
31408-80X14 Bearing-Differential Side0010--01 ~ 0209--01; 4WD.QR20DE.AT; ﾋﾀﾞﾘ ﾖｳ |
31408-80X14 |
US $55.58 |
||
|
38453Y
|
38453Y
31438-80X00 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.48,ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X00 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X01 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.52 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X01 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X02 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.56 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X02 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X03 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.60 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X03 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X04 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.64 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X04 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X05 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.68 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X05 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X06 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.72 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X06 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X07 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.76 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X07 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X08 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.80 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X08 |
from US $4.38 |
||
|
38453Y
|
38453Y
31438-80X09 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.84 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X09 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X10 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.88 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X10 |
US $5.47 |
||
|
38453Y
|
38453Y
31438-80X11 Shim-Adjust, Side Bearing0010--01 ~ ; 4WD.QR20DE.AT; T=0.92 ｾﾝﾀｸｼﾃ ｼﾖｳ |
31438-80X11 |
US $5.47 |
