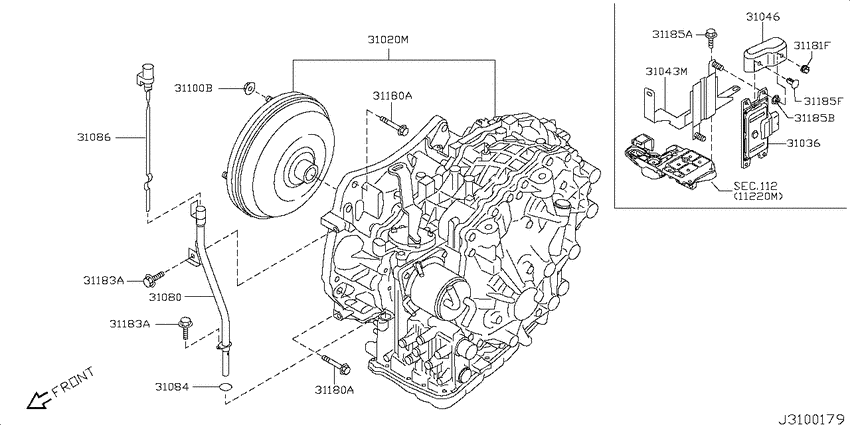

Auto transmission,transaxle & fitting (2007-08-01 ~ ; &アッセンブリー&フィッティング パーツ; CVT) Diagram Nissan X-TRAIL
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 4WD
- transmission
- CVT
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
112
|
Engine & transmission mounting
112
|
||||
|
112
|
Engine & transmission mounting
112
|
||||
|
31020M
|
31020M
310201XF0C
Transaxle Assy-Automatic (CVT)
0708--01 ~ ; 4WD.CVT |
310201XF0C |
— | ||
|
31036
|
31036
31036JG13A Control Unit-Shift0708--01 ~ ; 4WD.CVT |
31036JG13A |
US $722.16 |
||
|
31043M
|
31043M
31043-JG00A Brkt-Auto Trans Cont0708--01 ~ ; CVT |
31043-JG00A |
US $38.88 |
||
|
31046
|
31046
31046-JG00A Protr-Cvt Cont0708--01 ~ ; CVT |
31046-JG00A |
US $9.79 |
||
|
31080
|
31080
31080JD300
Pipe Assy-Oil Charging
0708--01 ~ ; CVT |
31080JD300 |
— | ||
| replacement | |||||
|
31080
|
31080
31080-JD36A Pipe Assy-Oil Charging0708--01 ~ ; CVT |
31080-JD36A |
US $42.97 |
||
|
31084
|
31084
31084M750A Seal-O Ring0708--01 ~ ; CVT |
31084M750A |
US $1.67 |
||
|
31086
|
31086
31086-JD300 Gauge Assy-Oil Level0708--01 ~ ; 4WD.CVT |
31086-JD300 |
US $16.99 |
||
|
31100B
|
31100B
31365-CA00A Nut0708--01 ~ ; CVT |
31365-CA00A |
from US $1.58 |
||
|
31180A
|
31180A
31377JD30A Bolt0708--01 ~ ; CVT |
31377JD30A |
US $2.45 |
||
|
31180A
|
31180A
31377JD30A Bolt0708--01 ~ ; CVT |
31377JD30A |
US $2.45 |
||
|
31181F
|
31181F
6384889900 Clip0708--01 ~ ; CVT |
6384889900 |
US $1.73 |
||
|
31183A
|
31183A
01125N6011 Bolt0708--01 ~ ; CVT |
01125N6011 |
from US $2.21 |
||
|
31183A
|
31183A
01125N6011 Bolt0708--01 ~ ; CVT |
01125N6011 |
from US $2.21 |
||
|
31185A
|
31185A
01456-N8011 Screw0708--01 ~ ; CVT |
01456-N8011 |
US $1.73 |
||
|
31185B
|
31185B
01225N6011 Nut0708--01 ~ ; CVT |
01225N6011 |
from US $0.50 |
||
|
31185F
|
31185F
01553-06371 CLIP0708--01 ~ ; CVT |
01553-06371 |
US $1.73 |
||
