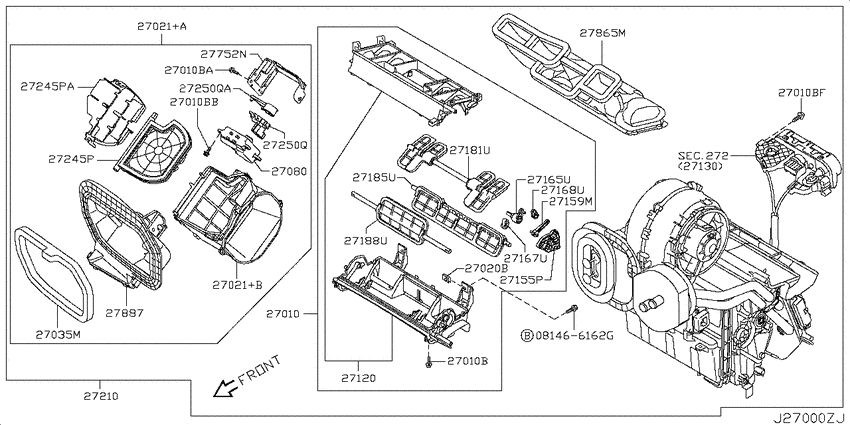

Heater & blower unit (2007-08-01 ~ ; ﾌﾞﾛｱｰ ﾕﾆｯﾄ(NO.2)ﾏﾆｭｱﾙ; W) Diagram Nissan X-TRAIL
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 4WD
- transmission
- CVT
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162G
|
081466162G
081466162G Bolt-hexagon |
081466162G |
from US $0.67 |
||
|
27010
|
27010
27110-JG00A Heating Unit Assy-Front0708--01 ~ ; W.S |
27110-JG00A |
US $192.96 |
||
|
27010
|
27010
27110-JG01A Heating Unit Assy-Front0708--01 ~ ; *W.S |
27110-JG01A |
US $175.68 |
||
|
27010
|
27010
271112Y00A Screw0708--01 ~ ; W |
271112Y00A |
US $1.73 |
||
|
27010
|
27010
271112Y00A Screw0708--01 ~ 0802--01; W.S |
271112Y00A |
US $1.73 |
||
|
27010
|
27010
27111-2Y00B Screw0708--01 ~ ; W |
27111-2Y00B |
US $0.86 |
||
|
27010
|
27010
271112Y00A Screw0708--01 ~ 0803--01; *W.S |
271112Y00A |
US $1.73 |
||
|
27010
|
27010
01456-00461 SCREW0708--01 ~ ; W |
01456-00461 |
US $1.73 |
||
|
27010
|
27010
27199-2J00A Screw0708--01 ~ ; W.S |
27199-2J00A |
US $1.73 |
||
|
27010
|
27010
0145100581 SCREW0708--01 ~ ; W.S |
0145100581 |
from US $1.67 |
||
|
27010B
|
27010B
271112Y00A Screw0708--01 ~ ; W |
271112Y00A |
US $1.73 |
||
|
27010B
|
27010B
271112Y00A Screw0708--01 ~ 0802--01; W.S |
271112Y00A |
US $1.73 |
||
|
27010B
|
27010B
27111-2Y00B Screw0708--01 ~ ; W |
27111-2Y00B |
US $0.86 |
||
|
27010B
|
27010B
271112Y00A Screw0708--01 ~ 0803--01; *W.S |
271112Y00A |
US $1.73 |
||
|
27010B
|
27010B
01456-00461 SCREW0708--01 ~ ; W |
01456-00461 |
US $1.73 |
||
|
27010B
|
27010B
27199-2J00A Screw0708--01 ~ ; W.S |
27199-2J00A |
US $1.73 |
||
|
27010B
|
27010B
0145100581 SCREW0708--01 ~ ; W.S |
0145100581 |
from US $1.67 |
||
|
27010BA
|
27010BA
271112Y00A Screw0708--01 ~ 0802--01; W.S |
271112Y00A |
US $1.73 |
||
|
27010BB
|
27010BB
27111-2Y00B Screw0708--01 ~ ; W |
27111-2Y00B |
US $0.86 |
||
|
27010BF
|
27010BF
0145100581 SCREW0708--01 ~ ; W.S |
0145100581 |
from US $1.67 |
||
|
27020B
|
27020B
0124100011 NUT0708--01 ~ ; W |
0124100011 |
from US $2.21 |
||
|
27021+A
|
27021+A
27236-JG00A Case-Blower0708--01 ~ ; W.S |
27236-JG00A |
US $180 |
||
|
27021+A
|
27021+A
27236-JG01A Case-Blower0708--01 ~ ; *W.S |
27236-JG01A |
US $180 |
||
|
27021+B
|
27021+B
27237-CY000 Case-Blower0708--01 ~ ; W.S |
27237-CY000 |
US $48.38 |
||
|
27021+B
|
27021+B
27237-JG00A Case-Blower0708--01 ~ ; *W.S |
27237-JG00A |
US $48.38 |
||
|
27035M
|
27035M
28714-JG00B Seal0708--01 ~ ; W.S |
28714-JG00B |
US $1.73 |
||
|
27080
|
27080
27730-EN000 Actuator-Air Intake Box0708--01 ~ ; *W.S |
27730-EN000 |
US $40.61 |
||
|
27080
|
27080
27730-JG00A Actuator-Air Intake Box0708--01 ~ ; W.S |
27730-JG00A |
US $44.64 |
||
|
27120
|
27120
27120-JG00A Case Assy-Front Heater Unit0708--01 ~ ; W.S |
27120-JG00A |
US $100.94 |
||
|
27120
|
27120
27120-JG01A Case Assy-Front Heater Unit0708--01 ~ ; *W.S |
27120-JG01A |
US $91.73 |
||
|
27155P
|
27155P
27155-CY000 Link-Main0708--01 ~ ; *W.S |
27155-CY000 |
US $3.94 |
||
|
27155P
|
27155P
27155-JG00A Link-Main0708--01 ~ ; W.S |
27155-JG00A |
US $3.74 |
||
|
27159M
|
27159M
27159-EN000 Link-Foot0708--01 ~ ; W |
27159-EN000 |
US $29.09 |
||
|
27165U
|
27165U
27165-EN000 Lever-Vent0708--01 ~ ; W |
27165-EN000 |
US $1.58 |
||
|
27167U
|
27167U
27167-CY000 Lever-Def0708--01 ~ ; W |
27167-CY000 |
US $1.73 |
||
|
27168U
|
27168U
27168-EN000 Lever-Foot0708--01 ~ ; W |
27168-EN000 |
US $3.17 |
||
|
27181U
|
27181U
27181-JG01A Door Assy-Vent, No.10708--01 ~ ; W |
27181-JG01A |
US $11.52 |
||
|
27185U
|
27185U
27185-EN000 Door Assy-Foot0708--01 ~ ; W |
27185-EN000 |
US $11.52 |
||
|
27188U
|
27188U
27188-CY000 Door Assy-Def0708--01 ~ ; W |
27188-CY000 |
US $12.10 |
||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
272
|
Control unit
272
|
||||
|
27210
|
27210
27210-JG01A Blower Assy-Air Conditioner0708--01 ~ ; *W.S |
27210-JG01A |
US $1,540 |
||
|
27210
|
27210
27210-JG01C Blower Assy-Air Conditioner0708--01 ~ ; W.S |
27210-JG01C |
US $1,416 |
||
|
27245P
|
27245P
27245-JG00A Door-Intake Blower, Front0708--01 ~ ; *W.S |
27245-JG00A |
US $13.39 |
||
|
27245P
|
27245P
27245-JG01A Door-Intake Blower, Front0708--01 ~ ; W.S |
27245-JG01A |
US $14.69 |
||
|
27245P
|
27245P
27886-JG00A Door-Intake Blower, Front0708--01 ~ ; W |
27886-JG00A |
US $13.39 |
||
|
27245PA
|
27245PA
27886-JG00A Door-Intake Blower, Front0708--01 ~ ; W |
27886-JG00A |
US $13.39 |
||
|
27250Q
|
27250Q
27253-JG01A Lever0708--01 ~ ; W.S |
27253-JG01A |
US $4.75 |
||
|
27250Q
|
27250Q
27253-JG02A Lever0708--01 ~ ; *W.S |
27253-JG02A |
US $4.32 |
||
|
27250Q
|
27250Q
27253-JG01A Lever0708--01 ~ ; W.S |
27253-JG01A |
US $4.75 |
||
|
27250QA
|
27250QA
27253-JG01A Lever0708--01 ~ ; W.S |
27253-JG01A |
US $4.75 |
||
|
27752N
|
27752N
27752-EN000 Bracket-Actuator0708--01 ~ ; *W.S |
27752-EN000 |
US $4.90 |
||
|
27752N
|
27752N
27752-JG00A Bracket-Actuator0708--01 ~ ; W.S |
27752-JG00A |
US $5.33 |
||
|
27865M
|
27865M
27865-JG00A Adapter-Center Vent & Def0708--01 ~ ; W |
27865-JG00A |
US $51.55 |
||
|
27887
|
27887
27887-JG00A Duct-Intake, Fresh0708--01 ~ ; W |
27887-JG00A |
US $44.64 |
||
