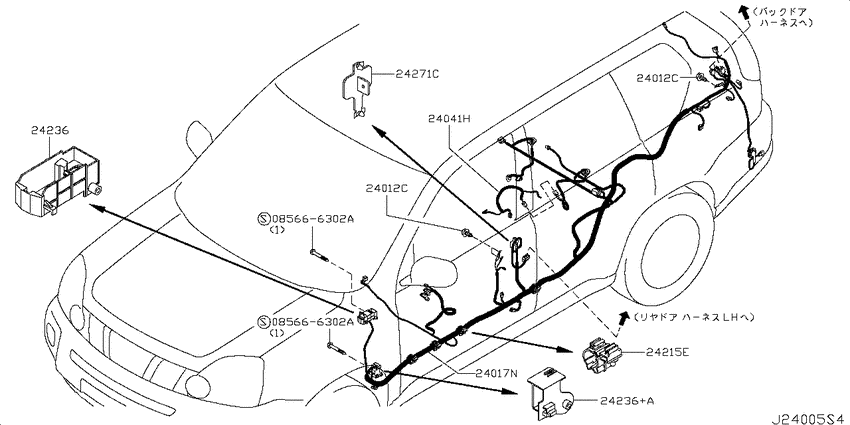

Wiring (2007-08-01 ~ ; ﾎﾞﾃﾞｨ ﾊｰﾈｽ RH; W.MR20DE) Diagram Nissan X-TRAIL
- Year
- 2007 - 2012
- Sales region
- Japan
- Engine
- MR20DE
- drive
- 4WD
- transmission
- CVT
- grade
- S
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
085666302A
|
085666302A
085666302A
SCREWTAPPING
|
085666302A |
— | ||
|
085666302A
|
085666302A
085666302A
SCREWTAPPING
|
085666302A |
— | ||
|
24012C
|
24012C
0145600411 SCREW0708--01 ~ ; W.MR20DE |
0145600411 |
US $1.67 |
||
|
24012C
|
24012C
0145600411 SCREW0708--01 ~ ; W.MR20DE |
0145600411 |
US $1.67 |
||
|
24017N
|
24017N
24015-1A30A Harness-Body, Lh0708--01 ~ ; *W.MR20DE.S; [K116] |
24015-1A30A |
US $594.72 |
||
|
24017N
|
24017N
24015-1A30B Harness-Body, Lh0708--01 ~ ; *W.MR20DE.S; [K116] |
24015-1A30B |
US $594.72 |
||
|
24017N
|
24017N
24015-1A30C Harness-Body, Lh0708--01 ~ ; *W.MR20DE.S; [K116] |
24015-1A30C |
US $594.72 |
||
|
24017N
|
24017N
24015-1A30D Harness-Body, Lh0708--01 ~ ; *W.MR20DE.S; [K116] |
24015-1A30D |
US $594.72 |
||
|
24017N
|
24017N
24015-1A30E Harness-Body, Lh0708--01 ~ ; *W.MR20DE.S; [K116] |
24015-1A30E |
US $594.72 |
||
|
24017N
|
24017N
24015-JG00A Harness-Body, Lh0708--01 ~ ; W.MR20DE |
24015-JG00A |
US $331.34 |
||
|
24017N
|
24017N
24015JG01A Harness-Body, Lh0708--01 ~ ; *W.MR20DE |
24015JG01A |
US $331.34 |
||
|
24017N
|
24017N
24015-JG01B Harness-Body, Lh0708--01 ~ ; *W.MR20DE |
24015-JG01B |
US $331.34 |
||
|
24017N
|
24017N
24015-JG02A Harness-Body, Lh0708--01 ~ ; *W.MR20DE |
24015-JG02A |
US $331.34 |
||
|
24017N
|
24017N
24015-JG02B Harness-Body, Lh0708--01 ~ ; *W.MR20DE |
24015-JG02B |
US $331.34 |
||
|
24017N
|
24017N
24015-JG03A Harness-Body, Lh0708--01 ~ ; *W.MR20DE |
24015-JG03A |
US $331.34 |
||
|
24017N
|
24017N
24015-JG03B Harness-Body, Lh0708--01 ~ ; *W.MR20DE |
24015-JG03B |
US $331.34 |
||
|
24017N
|
24017N
24015-JG04A Harness-Body, Lh0708--01 ~ ; *W.MR20DE |
24015-JG04A |
US $331.34 |
||
|
24017N
|
24017N
24015-JG04B Harness-Body, Lh0708--01 ~ ; *W.MR20DE |
24015-JG04B |
US $331.34 |
||
|
24041H
|
24041H
24077-JG00A Harness-Chassis0708--01 ~ ; W.4WD.CVT +W.6MT |
24077-JG00A |
US $40.61 |
||
|
24215E
|
24215E
24210JG00A Clip-Wiring Harness0708--01 ~ ; W.MR20DE |
24210JG00A |
US $3.17 |
||
|
24236
|
24236
24346-JG02A Bracket-Connector0708--01 ~ ; W.MR20DE |
24346-JG02A |
US $14.69 |
||
|
24236
|
24236
24346-JG03A Bracket-Connector0708--01 ~ ; W.MR20DE |
24346-JG03A |
US $14.69 |
||
|
24236+A
|
24236+A
24346-JG03A Bracket-Connector0708--01 ~ ; W.MR20DE |
24346-JG03A |
US $14.69 |
||
|
24271C
|
24271C
24275-CA000 Protector-Harness0708--01 ~ ; W.MR20DE |
24275-CA000 |
from US $5.18 |
