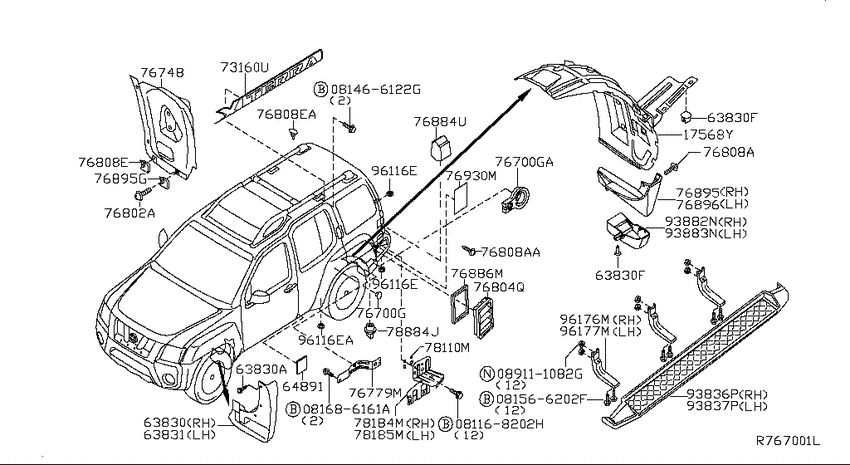

Body side fitting (2005-09-01 ~ 2007-08-01; W) Diagram Nissan XTERRA
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Engine
- VQ40DE
- drive
- 2WD
- transmission
- 6MT
- grade
- OFFROAD
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081168202H
|
081168202H
081168202H Bolt-hexagon |
081168202H |
US $0.63 |
||
|
081466122G
|
081466122G
081466122G Bolt-hexagon |
081466122G |
US $2.36 |
||
|
081566202F
|
081566202F
081566202F
Bolt-hexagon
|
081566202F |
— | ||
|
081686161A
|
081686161A
081686161A
Bolt
|
081686161A |
— | ||
|
089111082G
|
089111082G
089111082G NUTHEX |
089111082G |
from US $0.52 |
||
|
17568Y
|
17568Y
76766-EA00A Protector-Filler Tube2005-09-01 ~ 2007-08-01; W; , |
76766-EA00A |
US $40.26 |
||
|
63830
|
63830
63850-EA000
Mudguard Set-Front Fender, Rh
2005-09-01 ~ 2007-08-01; *W; , |
63850-EA000 |
— | ||
|
63830
|
63830
0145100891 SCREW2005-09-01 ~ 2007-08-01; *W; , |
0145100891 |
from US $1.02 |
||
|
63830
|
63830
01281-00022
GROMMET
2005-09-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); , |
01281-00022 |
— | ||
|
63830A
|
63830A
0145100891 SCREW2005-09-01 ~ 2007-08-01; *W; , |
0145100891 |
from US $1.02 |
||
|
63830F
|
63830F
01281-00022
GROMMET
2005-09-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); , |
01281-00022 |
— | ||
|
63830F
|
63830F
01281-00022
GROMMET
2005-09-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); , |
01281-00022 |
— | ||
|
63831
|
63831
63851-EA000
Mudguard Set-Front Fender, Lh
2005-09-01 ~ 2007-08-01; *W; , |
63851-EA000 |
— | ||
|
64891
|
64891
74849-EA50A
Cover-Hole
2005-09-01 ~ 2007-08-01; W; , |
74849-EA50A |
— | ||
|
73160U
|
73160U
73160-EA000
Decal-Side Rail
2005-09-01 ~ 2006-08-01; W; , |
73160-EA000 |
— | ||
|
73160U
|
73160U
73160-EA00A
Decal-Side Rail
2006-08-01 ~ 2007-08-01; W; , |
73160-EA00A |
— | ||
|
76700G
|
76700G
74816AX000 Plug-Rubber2005-09-01 ~ 2007-08-01; W; , |
74816AX000 |
from US $0.83 |
||
|
76700G
|
76700G
74816-EA00A
Plug-Rubber
2005-09-01 ~ 2007-08-01; W; , |
74816-EA00A |
— | ||
|
76700GA
|
76700GA
74816-EA00A
Plug-Rubber
2005-09-01 ~ 2007-08-01; W; , |
74816-EA00A |
— | ||
|
76748
|
76748
76748-EA00A
Protector-Rear Wheel House, Rh
2005-09-01 ~ 2007-01-01; W; , |
76748-EA00A |
— | ||
|
76748
|
76748
76748-EA00B
Protector-Rear Wheel House, Rh
2007-01-01 ~ 2007-08-01; W; , |
76748-EA00B |
— | ||
|
76779M
|
76779M
76779-EA000
Bracket Assy
2005-09-01 ~ 2007-08-01; W; , |
76779-EA000 |
— | ||
|
76804Q
|
76804Q
76804-EA000
Drafter-Air
2005-09-01 ~ 2007-08-01; W; , |
76804-EA000 |
— | ||
|
76808A
|
76808A
0145100891 SCREW2005-09-01 ~ 2007-08-01; *W.(S+BASECAMP+OFFROAD); , |
0145100891 |
from US $1.02 |
||
|
76808A
|
76808A
0145100841 SCREW2005-09-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); , |
0145100841 |
from US $0.94 |
||
|
76808AA
|
76808AA
0145100841 SCREW2005-09-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); , |
0145100841 |
from US $0.94 |
||
|
76808E
|
76808E
768820M000 Clip2005-09-01 ~ 2007-08-01; W; , |
768820M000 |
from US $3.15 |
||
|
76808E
|
76808E
0155309241 CLAMP2005-09-01 ~ 2007-08-01; W; , |
0155309241 |
from US $0.82 |
||
|
76808EA
|
76808EA
0155309241 CLAMP2005-09-01 ~ 2007-08-01; W; , |
0155309241 |
from US $0.82 |
||
|
76884U
|
76884U
76884-EA00A
Insulator-Body Side
2005-09-01 ~ 2007-08-01; W; , |
76884-EA00A |
— | ||
|
76886M
|
76886M
76886-7S000
Felt-Body Side
2005-09-01 ~ 2007-08-01; W; , |
76886-7S000 |
— | ||
|
76895
|
76895
78810-EA00A
Mudguard Set-Rear, Rh
2005-09-01 ~ 2007-08-01; *W; , |
78810-EA00A |
— | ||
|
76895
|
76895
0155309241 CLAMP2005-09-01 ~ 2007-08-01; *W; , |
0155309241 |
from US $0.82 |
||
|
76895G
|
76895G
0155309241 CLAMP2005-09-01 ~ 2007-08-01; *W; , |
0155309241 |
from US $0.82 |
||
|
76896
|
76896
78811-EA00A
Mudguard Set-Rear, Lh
2005-09-01 ~ 2007-08-01; *W; , |
78811-EA00A |
— | ||
|
76930M
|
76930M
76883-EA00A
Insulator-Center Pillar
2005-09-01 ~ 2007-08-01; W; , |
76883-EA00A |
— | ||
|
78110M
|
78110M
01352-0004U
Seal
2005-09-01 ~ 2007-08-01; W; , |
01352-0004U |
— | ||
|
78184M
|
78184M
78184-EA000
Bracket Assy-Side Step, Rh
2005-09-01 ~ 2007-08-01; W; , |
78184-EA000 |
— | ||
|
78185M
|
78185M
78185-EA000
Bracket Assy-Side Step, Lh
2005-09-01 ~ 2007-08-01; W; , |
78185-EA000 |
— | ||
|
78884J
|
78884J
922354M400 Valve-Air Drafter2005-09-01 ~ 2007-08-01; W; , |
922354M400 |
from US $2.72 |
||
|
93882N
|
93882N
93882-EA000 Wind defl-rear wheelhouse,rh2005-09-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); , |
93882-EA000 |
US $22.20 |
||
|
93883N
|
93883N
93883-EA000 Wind defl-rear wheelhouse,lh2005-09-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); , |
93883-EA000 |
US $22.35 |
||
|
96116E
|
96116E
0165801361 PLUG-RUBBER2005-09-01 ~ 2007-08-01; W; , |
0165801361 |
US $3.18 |
||
|
96116E
|
96116E
01658-00531
PLUG
2005-09-01 ~ 2007-08-01; W; , |
01658-00531 |
— | ||
| replacement | |||||
|
96116E
|
96116E
74816AL500 Plug2005-09-01 ~ 2007-08-01; W; , |
74816AL500 |
US $1.93 |
||
|
96116E
|
96116E
0165801361 PLUG-RUBBER2005-09-01 ~ 2007-08-01; W; , |
0165801361 |
US $3.18 |
||
|
96116E
|
96116E
01658-00531
PLUG
2005-09-01 ~ 2007-08-01; W; , |
01658-00531 |
— | ||
| replacement | |||||
|
96116E
|
96116E
74816AL500 Plug2005-09-01 ~ 2007-08-01; W; , |
74816AL500 |
US $1.93 |
||
|
96116EA
|
96116EA
01658-00531
PLUG
2005-09-01 ~ 2007-08-01; W; , |
01658-00531 |
— | ||
| replacement | |||||
|
96116EA
|
96116EA
74816AL500 Plug2005-09-01 ~ 2007-08-01; W; , |
74816AL500 |
US $1.93 |
||
