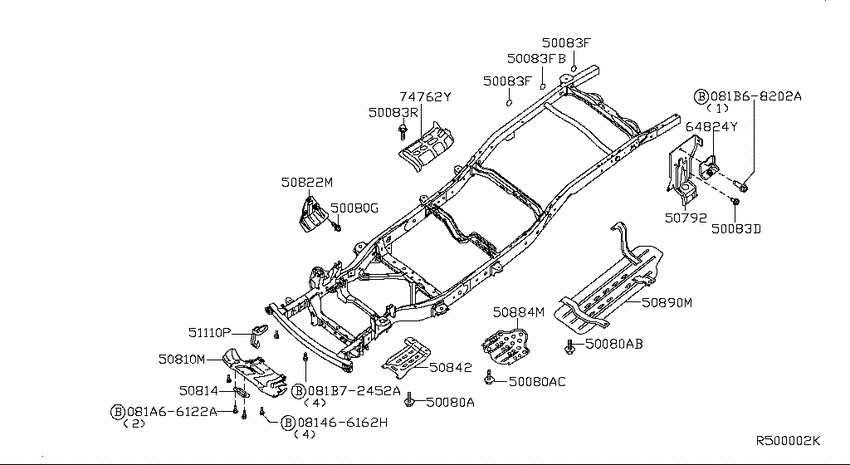

Frame (2005-09-01 ~ 2005-12-01; UNDER COVER & TOW; W) Diagram Nissan XTERRA
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Engine
- VQ40DE
- drive
- 2WD
- transmission
- 6MT
- grade
- OFFROAD
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466162H
|
081466162H
081466162H Bolt-hexagon |
081466162H |
from US $0.72 |
||
|
081A66122A
|
081A66122A
081A6-6122A
BOLTFLANGEHEX
|
081A6-6122A |
— | ||
|
081B68202A
|
081B68202A
081B6-8202A
Bolt
|
081B6-8202A |
— | ||
|
081B72452A
|
081B72452A
081B7-2452A Bolt-flange |
081B7-2452A |
US $1.54 |
||
|
50080A
|
50080A
0112106561 BOLT2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
0112106561 |
from US $0.70 |
||
|
50080A
|
50080A
0112106561 BOLT2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
0112106561 |
from US $0.70 |
||
|
50080AC
|
50080AC
0112106561 BOLT2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
0112106561 |
from US $0.70 |
||
|
50080G
|
50080G
0155309321 CLIP2005-09-01 ~ 2007-08-01; W; , |
0155309321 |
US $0.97 |
||
|
50083D
|
50083D
01466-00171 SCREW2005-09-01 ~ 2007-08-01; W; , |
01466-00171 |
US $2.21 |
||
|
50083F
|
50083F
01658-0003U
Plug
2005-09-01 ~ 2007-08-01; W; , |
01658-0003U |
— | ||
|
50083F
|
50083F
01658-0008U
Plug
2005-09-01 ~ 2007-08-01; W; , |
01658-0008U |
— | ||
|
50083F
|
50083F
01658-0003U
Plug
2005-09-01 ~ 2007-08-01; W; , |
01658-0003U |
— | ||
|
50083F
|
50083F
01658-0008U
Plug
2005-09-01 ~ 2007-08-01; W; , |
01658-0008U |
— | ||
|
50083FB
|
50083FB
01658-0008U
Plug
2005-09-01 ~ 2007-08-01; W; , |
01658-0008U |
— | ||
|
50083R
|
50083R
748G9-8J000 Rivet2005-09-01 ~ 2007-08-01; W; , |
748G9-8J000 |
from US $0.57 |
||
|
50792
|
50792
50792-EA000
Bracket Assy-Canister
2005-09-01 ~ 2007-08-01; W; , |
50792-EA000 |
— | ||
|
50810M
|
50810M
50810-EA000
Cover-Under, Front
2005-09-01 ~ 2005-12-01; W; , |
50810-EA000 |
— | ||
|
50810M
|
50810M
50810-EA00A
Cover-Under, Front
2005-12-01 ~ 2007-08-01; W; , |
50810-EA00A |
— | ||
|
50814
|
50814
50814-EA000
Cover-Under, Center
2005-09-01 ~ 2007-08-01; W; , |
50814-EA000 |
— | ||
|
50822M
|
50822M
50822-EA000 Splash Guard2005-09-01 ~ 2007-08-01; W; , |
50822-EA000 |
US $6.16 |
||
|
50842
|
50842
50842-7S000
Cover-Under, Engine Rh
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
50842-7S000 |
— | ||
|
50890M
|
50890M
50890-EA000
Cover Assy-Fuel Tank
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
50890-EA000 |
— | ||
|
51110P
|
51110P
51112-EA000
Towing Hook Assy-Front, Rh
2005-09-01 ~ 2007-08-01; W; , |
51112-EA000 |
— | ||
|
64824Y
|
64824Y
50791-EA000
Bracket Assy-Canister
2005-09-01 ~ 2007-08-01; W; , |
50791-EA000 |
— | ||
|
74762Y
|
74762Y
74762-EA000
Heat Insulator-Rear Floor
2005-09-01 ~ 2007-08-01; W; , |
74762-EA000 |
— |
