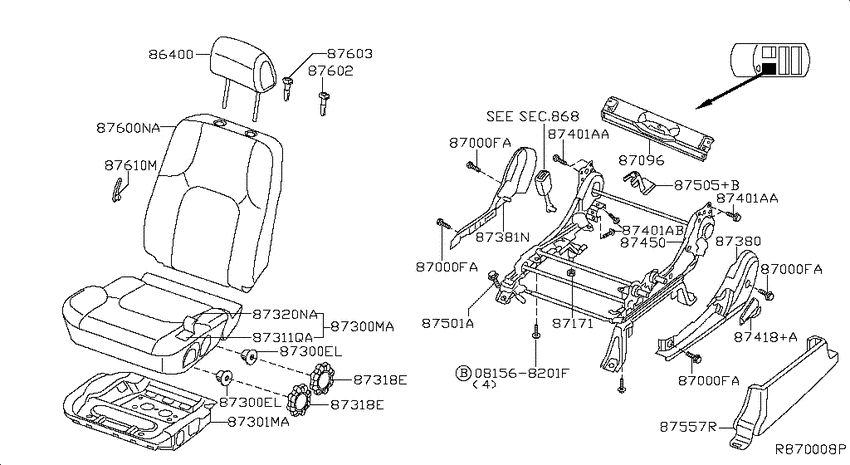

Front seat (2005-09-01 ~ 2007-08-01; LH SEAT (MANUAL SAB); *W) Diagram Nissan XTERRA
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Engine
- VQ40DE
- drive
- 2WD
- transmission
- 6MT
- grade
- OFFROAD
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081568201F
|
081568201F
08156-8201F
BOLTHEXPP WW
|
08156-8201F |
— | ||
|
86400
|
86400
86400-EA403
Head rest assy-front seat
2005-09-01 ~ 2006-02-01; W.OFFROAD; , |
86400-EA403 |
— | ||
|
86400
|
86400
86400-EA804
Head rest assy-front seat
2005-09-01 ~ 2006-02-01; W.OFFROAD; , |
86400-EA804 |
— | ||
|
86400
|
86400
86400-ZP15B
Head rest assy-front seat
2006-02-01 ~ 2007-08-01; W.OFFROAD; , |
86400-ZP15B |
— | ||
|
86400
|
86400
86400-ZP45A
Head rest assy-front seat
2006-02-01 ~ 2007-08-01; W.OFFROAD; , |
86400-ZP45A |
— | ||
|
86400
|
86400
86430-EA460
Headrest assy-rear seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
86430-EA460 |
— | ||
|
86400
|
86400
86430-ZP35B
Headrest assy-rear seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
86430-ZP35B |
— | ||
|
868
|
Front seat belt
868
|
||||
|
87000FA
|
87000FA
01454-0014U
Screw
2005-09-01 ~ 2007-08-01; W; FNSHR, SWTCH FASTENR |
01454-0014U |
— | ||
|
87000FA
|
87000FA
01454-0014U
Screw
2005-09-01 ~ 2007-08-01; W; FNSHR, SWTCH FASTENR |
01454-0014U |
— | ||
|
87000FA
|
87000FA
01454-0014U
Screw
2005-09-01 ~ 2007-08-01; W; FNSHR, SWTCH FASTENR |
01454-0014U |
— | ||
|
87000FA
|
87000FA
01454-0014U
Screw
2005-09-01 ~ 2007-08-01; W; FNSHR, SWTCH FASTENR |
01454-0014U |
— | ||
|
87096
|
87096
87096-EA000
Tether Assy-Front Seat
2005-09-01 ~ 2007-08-01; W; , |
87096-EA000 |
— | ||
|
87171
|
87171
87171-EA000
Gasket
2006-09-01 ~ 2007-08-01; *W; , |
87171-EA000 |
— | ||
|
87300EL
|
87300EL
01533-0001U
Clip
2006-09-01 ~ 2007-08-01; *W.(SE+OFFROAD); LUMBAR LEVER CLIP |
01533-0001U |
— | ||
|
87300EL
|
87300EL
01533-0001U
Clip
2006-09-01 ~ 2007-08-01; *W.(SE+OFFROAD); LUMBAR LEVER CLIP |
01533-0001U |
— | ||
|
87300MA
|
87300MA
87350-EA443
Cushion assy-front seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87350-EA443 |
— | ||
|
87300MA
|
87300MA
87350-EA844
Cushion assy-front seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87350-EA844 |
— | ||
|
87301MA
|
87301MA
87351-EA000
Frame Assy-Cushion, Front Seat
2005-09-01 ~ 2007-08-01; W; , |
87351-EA000 |
— | ||
|
87311QA
|
87311QA
87361-EA000
Pad Assy-Cushion, Front Seat
2005-09-01 ~ 2007-08-01; W; , |
87361-EA000 |
— | ||
|
87318E
|
87318E
87346-EA00C
Knob-Lifter Lever
2005-09-01 ~ 2007-08-01; W.(S+SE+OFFROAD); , |
87346-EA00C |
— | ||
|
87318E
|
87318E
87346-EA00C
Knob-Lifter Lever
2005-09-01 ~ 2007-08-01; W.(S+SE+OFFROAD); , |
87346-EA00C |
— | ||
|
87320NA
|
87320NA
87370-EA443
Trim assy-front seat cushion
2005-09-01 ~ 2007-08-01; *W.OFFROAD; , |
87370-EA443 |
— | ||
|
87320NA
|
87320NA
87370-EA844
Trim assy-front seat cushion
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87370-EA844 |
— | ||
|
87380
|
87380
87380-EA002
Finisher Assy-Cushion, Front Seat Lh
2005-09-01 ~ 2007-08-01; W; , |
87380-EA002 |
— | ||
|
87381N
|
87381N
87381-EA002
Finisher-Cushion, Front Seat Inner Lh
2005-09-01 ~ 2007-08-01; W; , |
87381-EA002 |
— | ||
|
87401AA
|
87401AA
01121-0071U
Bolt
2005-09-01 ~ 2007-08-01; W; ADJ TO BACK |
01121-0071U |
— | ||
|
87401AA
|
87401AA
01121-0071U
Bolt
2005-09-01 ~ 2007-08-01; W; ADJ TO BACK |
01121-0071U |
— | ||
|
87401AB
|
87401AB
01125-0071U
Bolt
2005-09-01 ~ 2007-08-01; W; NVH ASSY TO ADJ |
01125-0071U |
— | ||
|
87418+A
|
87418+A
87468-EA002 Knob-reclining device2005-09-01 ~ 2007-08-01; W; , |
87468-EA002 |
US $10.60 |
||
|
87450
|
87450
87450-EA000
Adjuster assy-front seat,lh
2005-09-01 ~ 2005-11-01; W.(S+SE+OFFROAD); , |
87450-EA000 |
— | ||
|
87450
|
87450
87450-ZP00C
Adjuster assy-front seat,lh
2006-09-01 ~ 2007-08-01; *W.(S+SE+OFFROAD); , |
87450-ZP00C |
— | ||
|
87501A
|
87501A
01121-0036U Bolt2005-09-01 ~ 2007-08-01; W; , |
01121-0036U |
US $1.79 |
||
|
87505+B
|
87505+B
87558-EA002
Cover-Seat Slide
2005-09-01 ~ 2007-08-01; W; RR INR LH |
87558-EA002 |
— | ||
|
87557R
|
87557R
87557-EA00C
Cover-Seat Slide, Front Outer Lh
2005-09-01 ~ 2007-08-01; W; COVER-SEAT SLIDE,OTR |
87557-EA00C |
— | ||
|
87600NA
|
87600NA
87650-EA443
Back assy-front seat with side air bag
2005-09-01 ~ 2007-08-01; *W.OFFROAD; SAB SEAT BACK |
87650-EA443 |
— | ||
|
87600NA
|
87600NA
87650-EA864
Back assy-front seat with side air bag
2005-09-01 ~ 2007-08-01; *W.OFFROAD; SAB SEAT BACK |
87650-EA864 |
— | ||
|
87602
|
87602
87602-EA002
Holder Assy-Headrest, Lock
2005-09-01 ~ 2007-08-01; W; , |
87602-EA002 |
— | ||
|
87603
|
87603
87603-EA002
Holder Assy-Headrest, Free
2005-09-01 ~ 2007-08-01; W; , |
87603-EA002 |
— | ||
|
87610M
|
87610M
87610-EA002
Lever-Front Seat Back
2005-09-01 ~ 2007-08-01; W.(S+SE+OFFROAD); , |
87610-EA002 |
— | ||
