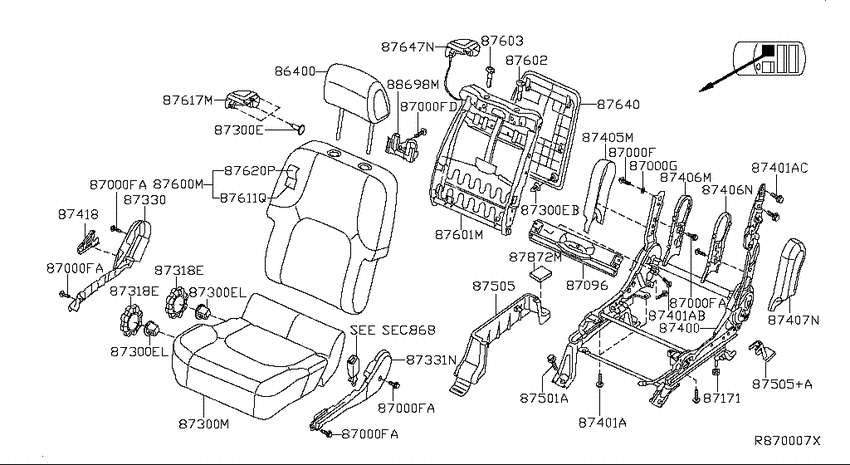

Front seat (2005-09-01 ~ 2007-08-01; RH SEAT (FOLD FLAT) YEAR7; *W) Diagram Nissan XTERRA
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Engine
- VQ40DE
- drive
- 2WD
- transmission
- 6MT
- grade
- OFFROAD
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
86400
|
86400
86400-EA403
Head rest assy-front seat
2005-09-01 ~ 2006-02-01; W.OFFROAD; , |
86400-EA403 |
— | ||
|
86400
|
86400
86400-EA804
Head rest assy-front seat
2005-09-01 ~ 2006-02-01; W.OFFROAD; , |
86400-EA804 |
— | ||
|
86400
|
86400
86400-ZP15B
Head rest assy-front seat
2006-02-01 ~ 2007-08-01; W.OFFROAD; , |
86400-ZP15B |
— | ||
|
86400
|
86400
86400-ZP45A
Head rest assy-front seat
2006-02-01 ~ 2007-08-01; W.OFFROAD; , |
86400-ZP45A |
— | ||
|
86400
|
86400
86430-EA460
Headrest assy-rear seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
86430-EA460 |
— | ||
|
86400
|
86400
86430-ZP35B
Headrest assy-rear seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
86430-ZP35B |
— | ||
|
868
|
Front seat belt
868
|
||||
|
87000F
|
87000F
01455-0010U
Screw
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); FOLD FLAT OTB ADJ TO |
01455-0010U |
— | ||
|
87000F
|
87000F
01454-0014U
Screw
2005-09-01 ~ 2007-08-01; W; FNSHR, SWTCH FASTENR |
01454-0014U |
— | ||
|
87000F
|
87000F
01456-0023U
Screw
2005-09-01 ~ 2007-08-01; W.(S+SE+OFFROAD); LMBR ASSY TO BCK FRM |
01456-0023U |
— | ||
|
87000F
|
87000F
01451-0026U
Screw
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); DAMPER ASSY TO BACK |
01451-0026U |
— | ||
|
87000FA
|
87000FA
01454-0014U
Screw
2005-09-01 ~ 2007-08-01; W; FNSHR, SWTCH FASTENR |
01454-0014U |
— | ||
|
87000FA
|
87000FA
01454-0014U
Screw
2005-09-01 ~ 2007-08-01; W; FNSHR, SWTCH FASTENR |
01454-0014U |
— | ||
|
87000FA
|
87000FA
01454-0014U
Screw
2005-09-01 ~ 2007-08-01; W; FNSHR, SWTCH FASTENR |
01454-0014U |
— | ||
|
87000FA
|
87000FA
01454-0014U
Screw
2005-09-01 ~ 2007-08-01; W; FNSHR, SWTCH FASTENR |
01454-0014U |
— | ||
|
87000FA
|
87000FA
01454-0014U
Screw
2005-09-01 ~ 2007-08-01; W; FNSHR, SWTCH FASTENR |
01454-0014U |
— | ||
|
87000FD
|
87000FD
01451-0026U
Screw
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); DAMPER ASSY TO BACK |
01451-0026U |
— | ||
|
87000G
|
87000G
01311-0006U
Washer-Plain
2006-09-01 ~ 2007-08-01; *W.(SE+OFFROAD); , |
01311-0006U |
— | ||
|
87096
|
87096
87096-EA000
Tether Assy-Front Seat
2005-09-01 ~ 2007-08-01; W; , |
87096-EA000 |
— | ||
|
87171
|
87171
87171-EA000
Gasket
2006-09-01 ~ 2007-08-01; *W; , |
87171-EA000 |
— | ||
|
87300E
|
87300E
01553-0131U
Clip
2006-02-01 ~ 2007-08-01; W.(SE+OFFROAD); , |
01553-0131U |
— | ||
|
87300E
|
87300E
869012J020 Panel-Console, A2006-02-01 ~ 2007-08-01; *W.(SE+OFFROAD); BACKBOARD CLIP |
869012J020 |
from US $1.73 |
||
|
87300E
|
87300E
01533-0001U
Clip
2006-09-01 ~ 2007-08-01; *W.(SE+OFFROAD); LUMBAR LEVER CLIP |
01533-0001U |
— | ||
|
87300EB
|
87300EB
869012J020 Panel-Console, A2006-02-01 ~ 2007-08-01; *W.(SE+OFFROAD); BACKBOARD CLIP |
869012J020 |
from US $1.73 |
||
|
87300EL
|
87300EL
01533-0001U
Clip
2006-09-01 ~ 2007-08-01; *W.(SE+OFFROAD); LUMBAR LEVER CLIP |
01533-0001U |
— | ||
|
87300EL
|
87300EL
01533-0001U
Clip
2006-09-01 ~ 2007-08-01; *W.(SE+OFFROAD); LUMBAR LEVER CLIP |
01533-0001U |
— | ||
|
87300M
|
87300M
87300-EA443
Cushion assy-front seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87300-EA443 |
— | ||
|
87300M
|
87300M
87300-EA804
Cushion assy-front seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; ODS: SVC ASSY ONLY |
87300-EA804 |
— | ||
|
87300M
|
87300M
87300-ZP65B
Cushion assy-front seat
2006-09-01 ~ 2007-08-01; *W.OFFROAD; ODS: SVC ASSY ONLY |
87300-ZP65B |
— | ||
|
87300M
|
87300M
87300-ZP75A
Cushion assy-front seat
2006-09-01 ~ 2007-08-01; *W.OFFROAD; , |
87300-ZP75A |
— | ||
|
87300M
|
87300M
87350-EA443
Cushion assy-front seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87350-EA443 |
— | ||
|
87300M
|
87300M
87350-EA844
Cushion assy-front seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87350-EA844 |
— | ||
|
87318E
|
87318E
87346-EA00C
Knob-Lifter Lever
2005-09-01 ~ 2007-08-01; W.(S+SE+OFFROAD); , |
87346-EA00C |
— | ||
|
87318E
|
87318E
87346-EA00C
Knob-Lifter Lever
2005-09-01 ~ 2007-08-01; W.(S+SE+OFFROAD); , |
87346-EA00C |
— | ||
|
87330
|
87330
87330-EA002
Finisher Assy-Cushion, Front Seat Rh
2005-09-01 ~ 2007-08-01; W; , |
87330-EA002 |
— | ||
|
87331N
|
87331N
87331-EA002
Finisher-Cushion, Front Seat Inner Rh
2005-09-01 ~ 2007-08-01; W; , |
87331-EA002 |
— | ||
|
87400
|
87400
87400-EA120
Adjuster assy-front seat,rh
2005-09-01 ~ 2005-11-01; W.(SE+OFFROAD); , |
87400-EA120 |
— | ||
|
87400
|
87400
87400-ZP10C
Adjuster Assy-Front Seat, Rh
2005-11-01 ~ 2007-08-01; W.(SE+OFFROAD); , |
87400-ZP10C |
— | ||
|
87401A
|
87401A
01121-0090U
Bolt
2005-09-01 ~ 2007-08-01; W; ADJ TO BACK |
01121-0090U |
— | ||
|
87401A
|
87401A
01121-0071U
Bolt
2005-09-01 ~ 2007-08-01; W; ADJ TO BACK |
01121-0071U |
— | ||
|
87401A
|
87401A
01125-0071U
Bolt
2005-09-01 ~ 2007-08-01; W; NVH ASSY TO ADJ |
01125-0071U |
— | ||
|
87401A
|
87401A
01125-0070U
Bolt
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); FOLD FLAT OTB BACK T |
01125-0070U |
— | ||
|
87401AB
|
87401AB
01125-0071U
Bolt
2005-09-01 ~ 2007-08-01; W; NVH ASSY TO ADJ |
01125-0071U |
— | ||
|
87401AC
|
87401AC
01125-0070U
Bolt
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); FOLD FLAT OTB BACK T |
01125-0070U |
— | ||
|
87405M
|
87405M
87445-EA002
Cover-Reclining Device, Front Seat Otr Rh
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); , |
87445-EA002 |
— | ||
|
87406M
|
87406M
87446-EA002
Cover-Reclining Device, Front Seat Inner
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); , |
87446-EA002 |
— | ||
|
87406N
|
87406N
87448-EA002
Cover-Reclining Device, Lh
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); , |
87448-EA002 |
— | ||
|
87407N
|
87407N
87447-EA002
Cover-Reclining Device, Rh Outer
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); , |
87447-EA002 |
— | ||
|
87418
|
87418
87418-EA002
Knob-Reclining Device Lever
2005-09-01 ~ 2007-08-01; W; , |
87418-EA002 |
— | ||
|
87418
|
87418
87468-EA002 Knob-reclining device2005-09-01 ~ 2007-08-01; W; , |
87468-EA002 |
US $10.60 |
||
|
87501A
|
87501A
01121-0036U Bolt2005-09-01 ~ 2007-08-01; W; , |
01121-0036U |
US $1.79 |
||
|
87505
|
87505
87507-EA00C
Cover-Seat Slide
2005-09-01 ~ 2007-08-01; W; , |
87507-EA00C |
— | ||
|
87505
|
87505
87507-ZP00C
Cover-seat slide
2006-09-01 ~ 2007-08-01; *W.OFFROAD; OFF ROAD |
87507-ZP00C |
— | ||
|
87505
|
87505
87508-EA002
Cover-Seat Slide
2005-09-01 ~ 2007-08-01; W; RR INR RH |
87508-EA002 |
— | ||
|
87505
|
87505
87558-EA002
Cover-Seat Slide
2005-09-01 ~ 2007-08-01; W; RR INR LH |
87558-EA002 |
— | ||
|
87505+A
|
87505+A
87508-EA002
Cover-Seat Slide
2005-09-01 ~ 2007-08-01; W; RR INR RH |
87508-EA002 |
— | ||
|
87600M
|
87600M
87600-EA473
Back assy-front seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87600-EA473 |
— | ||
|
87600M
|
87600M
87600-EA804
Back assy-front seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87600-EA804 |
— | ||
|
87600M
|
87600M
87650-EA483
Back assy-front seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87650-EA483 |
— | ||
|
87600M
|
87600M
87650-EA844
Back assy-front seat
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87650-EA844 |
— | ||
|
87601M
|
87601M
87601-EA120
Frame assy-front seat back
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); , |
87601-EA120 |
— | ||
|
87601M
|
87601M
87651-EA000
Frame assy-front seat back
2005-09-01 ~ 2007-08-01; W; , |
87651-EA000 |
— | ||
|
87602
|
87602
87602-EA002
Holder Assy-Headrest, Lock
2005-09-01 ~ 2007-08-01; W; , |
87602-EA002 |
— | ||
|
87603
|
87603
87603-EA002
Holder Assy-Headrest, Free
2005-09-01 ~ 2007-08-01; W; , |
87603-EA002 |
— | ||
|
87611Q
|
87611Q
87611-ZP42A
Pad-front seat back
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); , |
87611-ZP42A |
— | ||
|
87611Q
|
87611Q
87661-ZP43A
Pad-front seat back
2005-09-01 ~ 2007-08-01; W; , |
87661-ZP43A |
— | ||
|
87617M
|
87617M
87617-EA002
Lever-Front Seat Back
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); , |
87617-EA002 |
— | ||
|
87617M
|
87617M
87872-EA00A
Cap-Bolt
2005-09-01 ~ 2007-08-01; *W.(SE+OFFROAD); , |
87872-EA00A |
— | ||
|
87620P
|
87620P
87620-ZP12D
Trim assy-front seat back
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87620-ZP12D |
— | ||
|
87620P
|
87620P
87620-ZP46A
Trim assy-front seat back
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87620-ZP46A |
— | ||
|
87620P
|
87620P
87670-ZP15A
Trim assy-front seat back
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87670-ZP15A |
— | ||
|
87620P
|
87620P
87670-ZP15B
Trim assy-front seat back
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87670-ZP15B |
— | ||
|
87640
|
87640
87640-EA413
Board assy-front seat back
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87640-EA413 |
— | ||
|
87640
|
87640
87640-EA804
Board assy-front seat back
2005-09-01 ~ 2007-08-01; W.OFFROAD; , |
87640-EA804 |
— | ||
|
87647N
|
87647N
87647-EA002
Lever-Front Seat Back
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); , |
87647-EA002 |
— | ||
|
87872M
|
87872M
87872-EA00A
Cap-Bolt
2006-09-01 ~ 2007-08-01; *W.(SE+OFFROAD); , |
87872-EA00A |
— | ||
|
87872M
|
87872M
87872-EA00C
Cap-Bolt
2005-09-01 ~ 2007-08-01; *W.(SE+OFFROAD); , |
87872-EA00C |
— | ||
|
88698M
|
88698M
87655-EA000
Damper assy-dynamic
2005-09-01 ~ 2007-08-01; W.(SE+OFFROAD); , |
87655-EA000 |
— | ||
