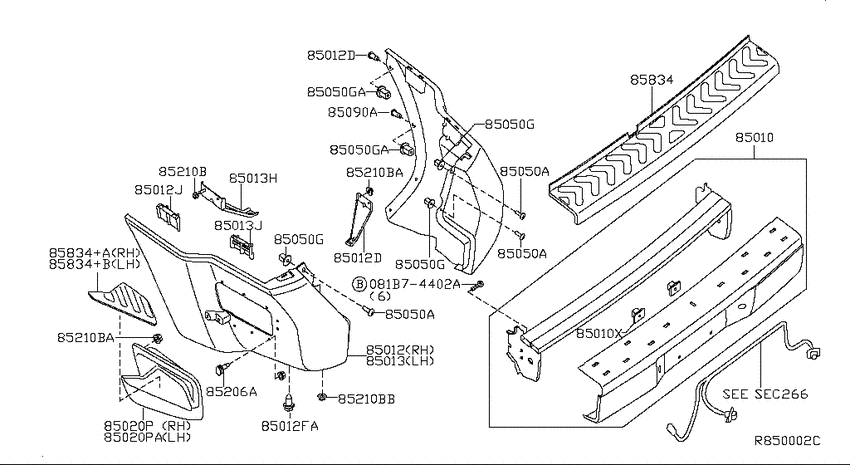

Rear bumper (2005-09-01 ~ 2007-08-01; W) Diagram Nissan XTERRA
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Engine
- VQ40DE
- drive
- 2WD
- transmission
- 6MT
- grade
- OFFROAD
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081B74402A
|
081B74402A
081B7-4402A
BOLT
|
081B7-4402A |
— | ||
|
266
|
Licence plate lamp
266
|
||||
|
85010
|
85010
H5010-EA000
Bumper assy-rear
2005-09-01 ~ 2006-07-01; W; , |
H5010-EA000 |
— | ||
|
85010
|
85010
H5010-ZP30A Bumper assy-rear2006-07-01 ~ 2007-08-01; W; , |
H5010-ZP30A |
US $702.93 |
||
|
85010
|
85010
0165100223 GROMMET-SCREW2005-09-01 ~ 2007-08-01; W; , |
0165100223 |
US $1.73 |
||
|
85010X
|
85010X
0165100223 GROMMET-SCREW2005-09-01 ~ 2007-08-01; W; , |
0165100223 |
US $1.73 |
||
|
85012
|
85012
H5024-EA00A
Fascia-rear bumper,rh
2005-09-01 ~ 2007-08-01; W; , |
H5024-EA00A |
— | ||
|
85012
|
85012
85220-EA000 Bracket-rear bumper side2005-09-01 ~ 2007-08-01; W; , |
85220-EA000 |
US $8.25 |
||
|
85012
|
85012
0155309241 CLAMP2005-09-01 ~ 2007-08-01; W; , |
0155309241 |
from US $0.82 |
||
|
85012
|
85012
85226-EA000 Bracket-rear bumper side,rh2005-09-01 ~ 2007-08-01; W; , |
85226-EA000 |
US $20.18 |
||
|
85012D
|
85012D
85220-EA000 Bracket-rear bumper side2005-09-01 ~ 2007-08-01; W; , |
85220-EA000 |
US $8.25 |
||
|
85012D
|
85012D
85220-EA000 Bracket-rear bumper side2005-09-01 ~ 2007-08-01; W; , |
85220-EA000 |
US $8.25 |
||
|
85012FA
|
85012FA
0155309241 CLAMP2005-09-01 ~ 2007-08-01; W; , |
0155309241 |
from US $0.82 |
||
|
85012J
|
85012J
85226-EA000 Bracket-rear bumper side,rh2005-09-01 ~ 2007-08-01; W; , |
85226-EA000 |
US $20.18 |
||
|
85013
|
85013
H5025-EA00A Fascia-rear bumper,lh2005-09-01 ~ 2007-08-01; W; , |
H5025-EA00A |
US $232.84 |
||
|
85013
|
85013
85221-EA000 Bracket-rear bumper side,lh2005-09-01 ~ 2007-08-01; W; , |
85221-EA000 |
US $30.91 |
||
|
85013
|
85013
85227-EA000 Bracket-rear bumper side,lh2005-09-01 ~ 2007-08-01; W; , |
85227-EA000 |
US $14.73 |
||
|
85013H
|
85013H
85221-EA000 Bracket-rear bumper side,lh2005-09-01 ~ 2007-08-01; W; , |
85221-EA000 |
US $30.91 |
||
|
85013J
|
85013J
85227-EA000 Bracket-rear bumper side,lh2005-09-01 ~ 2007-08-01; W; , |
85227-EA000 |
US $14.73 |
||
|
85020P
|
85020P
85020-EA000 Step-rear fascia2005-09-01 ~ 2007-08-01; W; , |
85020-EA000 |
US $48.23 |
||
|
85020P
|
85020P
85021-EA000 Step-rear fascia2005-09-01 ~ 2007-08-01; W; , |
85021-EA000 |
US $42.74 |
||
|
85020PA
|
85020PA
85021-EA000 Step-rear fascia2005-09-01 ~ 2007-08-01; W; , |
85021-EA000 |
US $42.74 |
||
|
85050A
|
85050A
63849-4N000 Screw2005-09-01 ~ 2007-06-01; W; , |
63849-4N000 |
US $0.86 |
||
|
85050A
|
85050A
63849-4N00A Screw2007-06-01 ~ 2007-08-01; W; , |
63849-4N00A |
US $0.86 |
||
|
85050A
|
85050A
63849-4N000 Screw2005-09-01 ~ 2007-06-01; W; , |
63849-4N000 |
US $0.86 |
||
|
85050A
|
85050A
63849-4N00A Screw2007-06-01 ~ 2007-08-01; W; , |
63849-4N00A |
US $0.86 |
||
|
85050A
|
85050A
63849-4N000 Screw2005-09-01 ~ 2007-06-01; W; , |
63849-4N000 |
US $0.86 |
||
|
85050A
|
85050A
63849-4N00A Screw2007-06-01 ~ 2007-08-01; W; , |
63849-4N00A |
US $0.86 |
||
|
85050G
|
85050G
01281-0010U
Grommet
2005-09-01 ~ 2007-08-01; W; , |
01281-0010U |
— | ||
|
85050G
|
85050G
0128100831 GROMMET-SCREW2005-09-01 ~ 2007-08-01; W; , |
0128100831 |
from US $0.89 |
||
|
85050G
|
85050G
01281-0010U
Grommet
2005-09-01 ~ 2007-08-01; W; , |
01281-0010U |
— | ||
|
85050G
|
85050G
0128100831 GROMMET-SCREW2005-09-01 ~ 2007-08-01; W; , |
0128100831 |
from US $0.89 |
||
|
85050G
|
85050G
01281-0010U
Grommet
2005-09-01 ~ 2007-08-01; W; , |
01281-0010U |
— | ||
|
85050G
|
85050G
0128100831 GROMMET-SCREW2005-09-01 ~ 2007-08-01; W; , |
0128100831 |
from US $0.89 |
||
|
85050GA
|
85050GA
0128100831 GROMMET-SCREW2005-09-01 ~ 2007-08-01; W; , |
0128100831 |
from US $0.89 |
||
|
85050GA
|
85050GA
0128100831 GROMMET-SCREW2005-09-01 ~ 2007-08-01; W; , |
0128100831 |
from US $0.89 |
||
|
85090A
|
85090A
0145100841 SCREW2005-09-01 ~ 2007-08-01; W; , |
0145100841 |
from US $0.94 |
||
|
85206A
|
85206A
0115100015 BOLT2005-09-01 ~ 2007-08-01; W; , |
0115100015 |
US $4.32 |
||
|
85210B
|
85210B
0122100081 NUT2005-09-01 ~ 2007-08-01; W; , |
0122100081 |
US $1.73 |
||
|
85210B
|
85210B
01225-0012U Nut2005-09-01 ~ 2007-08-01; W; , |
01225-0012U |
US $1.33 |
||
|
85210B
|
85210B
0122500371 NUT2007-03-01 ~ 2007-08-01; W; , |
0122500371 |
US $1.73 |
||
|
85210BA
|
85210BA
01225-0012U Nut2005-09-01 ~ 2007-08-01; W; , |
01225-0012U |
US $1.33 |
||
|
85210BA
|
85210BA
01225-0012U Nut2005-09-01 ~ 2007-08-01; W; , |
01225-0012U |
US $1.33 |
||
|
85210BB
|
85210BB
0122500371 NUT2007-03-01 ~ 2007-08-01; W; , |
0122500371 |
US $1.73 |
||
|
85834
|
85834
85071-EA000 Finisher-rear bumper,center2005-09-01 ~ 2007-08-01; W; , |
85071-EA000 |
US $27.03 |
||
|
85834
|
85834
85070-EA010 Finisher-rear bumper,center2005-09-01 ~ 2007-08-01; W; , |
85070-EA010 |
US $22.13 |
||
|
85834
|
85834
85071-EA010 Finisher-rear bumper,center2005-09-01 ~ 2007-08-01; W; , |
85071-EA010 |
US $21.66 |
||
|
85834+A
|
85834+A
85070-EA010 Finisher-rear bumper,center2005-09-01 ~ 2007-08-01; W; , |
85070-EA010 |
US $22.13 |
||
|
85834+B
|
85834+B
85071-EA010 Finisher-rear bumper,center2005-09-01 ~ 2007-08-01; W; , |
85071-EA010 |
US $21.66 |
||
