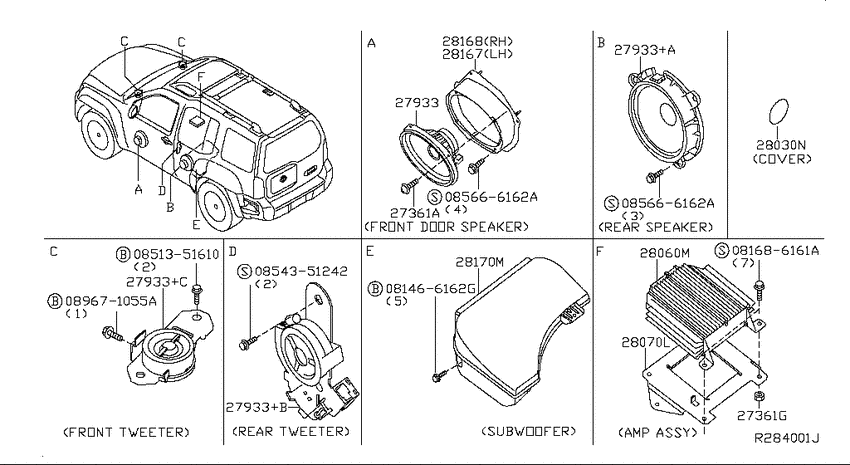

Speaker (2005-09-01 ~ 2007-08-01; W) Diagram Nissan XTERRA
- Year
- 2005 - 2007
- Sales region
- U.S.A.
- Engine
- VQ40DE
- drive
- 2WD
- transmission
- 6MT
- grade
- OFFROAD
- body
- W
- emission
- FED
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081686161A
|
081686161A
081686161A
Bolt
|
081686161A |
— | ||
|
0851351610
|
0851351610
08513-51610
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08513-51610 |
— | ||
|
0854351242
|
0854351242
0854351242 SCREWTAPPING |
0854351242 |
from US $0.54 |
||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
085666162A
|
085666162A
085666162A SCREWTAPPING |
085666162A |
US $2.21 |
||
|
089671055A
|
089671055A
08967-1055A
ﾅﾂﾄ,ｽﾌﾟﾘﾝｸﾞ
|
08967-1055A |
— | ||
|
27361A
|
27361A
01456-00631 SCREW2005-09-01 ~ 2007-08-01; W; , |
01456-00631 |
US $1.93 |
||
|
27361G
|
27361G
01281-00112
GROMMET-SCREW
2005-09-01 ~ 2007-08-01; W; , |
01281-00112 |
— | ||
| replacement | |||||
|
27361G
|
27361G
0128101231 GROMMET-SCREW2005-09-01 ~ 2007-08-01; W; , |
0128101231 |
from US $2.24 |
||
|
27933
|
27933
28157-EC000
Speaker Unit
2005-09-01 ~ 2007-08-01; *W.OFFROAD; SPEAKER UNIT 6X9 |
28157-EC000 |
— | ||
|
27933
|
27933
28157-ET000 Speaker Unit2005-09-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); SPEAKER UNIT 6X9 |
28157-ET000 |
US $144.19 |
||
|
27933
|
27933
28156-8S200
Speaker Unit
2005-09-01 ~ 2007-08-01; *W.OFFROAD; SPEAKER UNIT 6.5 |
28156-8S200 |
— | ||
|
27933
|
27933
28156-EA000
Speaker Unit
2005-09-01 ~ 2006-06-01; W.(S+BASECAMP+OFFROAD); SPEAKER UNIT 6.5 |
28156-EA000 |
— | ||
|
27933
|
27933
28156-EA00A
Speaker Unit
2006-06-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); SPEAKER UNIT 6.5 |
28156-EA00A |
— | ||
|
27933
|
27933
28138-EA000
Speaker Unit
2005-09-01 ~ 2007-08-01; *W.OFFROAD; SPEAKER ASSY-RF |
28138-EA000 |
— | ||
|
27933
|
27933
28148-EA000
Speaker Unit
2005-09-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); SPEAKER ASSY-FR |
28148-EA000 |
— | ||
|
27933
|
27933
28152-ET200
Speaker Unit
2005-09-01 ~ 2007-08-01; *W.OFFROAD; SPEAKER UNIT 2.5 |
28152-ET200 |
— | ||
|
27933+A
|
27933+A
28156-8S200
Speaker Unit
2005-09-01 ~ 2007-08-01; *W.OFFROAD; SPEAKER UNIT 6.5 |
28156-8S200 |
— | ||
|
27933+A
|
27933+A
28156-EA000
Speaker Unit
2005-09-01 ~ 2006-06-01; W.(S+BASECAMP+OFFROAD); SPEAKER UNIT 6.5 |
28156-EA000 |
— | ||
|
27933+A
|
27933+A
28156-EA00A
Speaker Unit
2006-06-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); SPEAKER UNIT 6.5 |
28156-EA00A |
— | ||
|
27933+B
|
27933+B
28138-EA000
Speaker Unit
2005-09-01 ~ 2007-08-01; *W.OFFROAD; SPEAKER ASSY-RF |
28138-EA000 |
— | ||
|
27933+C
|
27933+C
28148-EA000
Speaker Unit
2005-09-01 ~ 2007-08-01; W.(S+BASECAMP+OFFROAD); SPEAKER ASSY-FR |
28148-EA000 |
— | ||
|
27933+C
|
27933+C
28152-ET200
Speaker Unit
2005-09-01 ~ 2007-08-01; *W.OFFROAD; SPEAKER UNIT 2.5 |
28152-ET200 |
— | ||
|
28030N
|
28030N
64892W5000 Unit Assy-Divider Tachometer2005-09-01 ~ 2007-08-01; W; , |
64892W5000 |
from US $0.96 |
||
|
28060M
|
28060M
28060-EA000
Amp Assy-Speaker
2005-09-01 ~ 2007-08-01; *W.OFFROAD; , |
28060-EA000 |
— | ||
|
28070L
|
28070L
28070-EB000
Bracket-Audio
2005-09-01 ~ 2007-08-01; *W.OFFROAD; , |
28070-EB000 |
— | ||
|
28167
|
28167
28167-EA000
Bracket-Front Speaker, Lh
2005-09-01 ~ 2007-08-01; W; , |
28167-EA000 |
— | ||
|
28168
|
28168
28166-EA000
Bracket-Speaker, Rh
2005-09-01 ~ 2007-08-01; W; , |
28166-EA000 |
— | ||
|
28170M
|
28170M
28170-EA000
Box-Sub Woofer
2005-09-01 ~ 2007-08-01; *W.OFFROAD; , |
28170-EA000 |
— | ||
