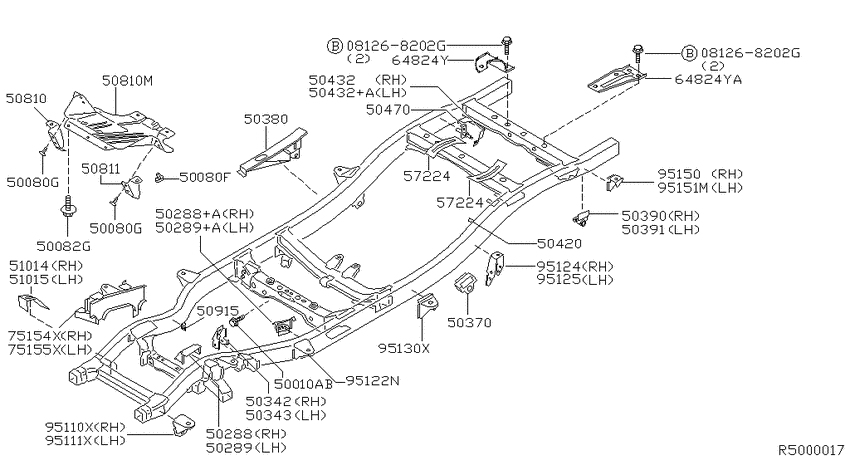

Frame (2001-07-01 ~ ; BRACKET & UNDERCOVER; W.KA24DE) Diagram Nissan XTERRA
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- KA24DE
- drive
- 2WD
- transmission
- MT
- body
- W
- trim lvl
- XE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081268202G
|
081268202G
081268202G
Bolt-hexagon
|
081268202G |
— | ||
|
081268202G
|
081268202G
081268202G
Bolt-hexagon
|
081268202G |
— | ||
|
50010AB
|
50010AB
0112503161 BOLT2000-07-01 ~ ; W.KA24DE; , |
0112503161 |
from US $0.93 |
||
|
50080F
|
50080F
01658-01531 PLUG2000-07-01 ~ ; W.KA24DE; , |
01658-01531 |
US $2.45 |
||
|
50080G
|
50080G
0155301182 CLIP2000-07-01 ~ ; W.KA24DE; , |
0155301182 |
from US $0.59 |
||
|
50080G
|
50080G
0155301182 CLIP2000-07-01 ~ ; W.KA24DE; , |
0155301182 |
from US $0.59 |
||
|
50082G
|
50082G
0145600031 SCREW2000-07-01 ~ ; W.KA24DE; , |
0145600031 |
from US $1.11 |
||
|
50288
|
50288
50310-3S530
Bracket assy-engine mounting,rh
2001-07-01 ~ ; W.KA24DE; , |
50310-3S530 |
— | ||
|
50288
|
50288
50320-01G30
Bracket assy-engine mounting,rh
2000-07-01 ~ ; W.KA24DE; , |
50320-01G30 |
— | ||
|
50288+A
|
50288+A
50320-01G30
Bracket assy-engine mounting,rh
2000-07-01 ~ ; W.KA24DE; , |
50320-01G30 |
— | ||
|
50289
|
50289
50311-3S530
Bracket assy-engine mounting,lh
2000-07-01 ~ ; W.KA24DE; , |
50311-3S530 |
— | ||
|
50289
|
50289
50321-01G30
Bracket assy-engine mounting,lh
2000-07-01 ~ ; W.KA24DE; , |
50321-01G30 |
— | ||
|
50289+A
|
50289+A
50321-01G30
Bracket assy-engine mounting,lh
2000-07-01 ~ ; W.KA24DE; , |
50321-01G30 |
— | ||
|
50342
|
50342
50342-4S130
Bracket-Differential Mounting, Rear Rh
2000-07-01 ~ ; W.KA24DE; , |
50342-4S130 |
— | ||
|
50343
|
50343
50343-4S130
Bracket-differential mounting,rear lh
1999-05-01 ~ 2000-07-01; W.KA24DE; , |
50343-4S130 |
— | ||
| replacement | |||||
|
50343
|
50343
50343-9Z400
Bracket-differential mounting,rear lh
1999-05-01 ~ 2000-07-01; W.KA24DE; , |
50343-9Z400 |
— | ||
|
50343
|
50343
50343-9Z430
Bracket-Differential Mounting, Rear Lh
2000-07-01 ~ ; W.KA24DE; , |
50343-9Z430 |
— | ||
|
50370
|
50370
50381-7Z030
Bracket Assy-Rear Spring, Front Lh
2000-07-01 ~ ; W.KA24DE; , |
50381-7Z030 |
— | ||
|
50380
|
50380
50380-7Z030
Bracket Assy-Rear Spring, Front Rh
2000-07-01 ~ ; W.KA24DE; , |
50380-7Z030 |
— | ||
|
50390
|
50390
50390-7Z030
Bracket Assy-Rear Spring, Rear Rh
2000-07-01 ~ ; W.KA24DE; , |
50390-7Z030 |
— | ||
|
50391
|
50391
50391-7Z030
Bracket Assy-Rear Spring, Rear Lh
2000-07-01 ~ ; W.KA24DE; , |
50391-7Z030 |
— | ||
|
50420
|
50420
50421-15G30
Bracket Assy-Rear Shock Absorber
1999-05-01 ~ 2000-07-01; W.KA24DE; , |
50421-15G30 |
— | ||
|
50432
|
50432
50432-7Z030
Bracket-Rear Stabilizer Mounting
2001-07-01 ~ ; W.KA24DE; , |
50432-7Z030 |
— | ||
|
50432
|
50432
50433-7Z030
Bracket-Rear Stabilizer Mounting
2001-07-01 ~ ; W.KA24DE; , |
50433-7Z030 |
— | ||
|
50432+A
|
50432+A
50433-7Z030
Bracket-Rear Stabilizer Mounting
2001-07-01 ~ ; W.KA24DE; , |
50433-7Z030 |
— | ||
|
50470
|
50470
50470-15G30
Bracket Assy-Exhaust
2000-07-01 ~ ; W.KA24DE; , |
50470-15G30 |
— | ||
|
50810
|
50810
50816-8B400
Cover-Splash, Rh
2000-07-01 ~ ; W.KA24DE; , |
50816-8B400 |
— | ||
|
50810
|
50810
50810-3S500
Cover-Under, Front
2000-07-01 ~ ; W.KA24DE; , |
50810-3S500 |
— | ||
|
50810M
|
50810M
50810-3S500
Cover-Under, Front
2000-07-01 ~ ; W.KA24DE; , |
50810-3S500 |
— | ||
|
50811
|
50811
50817-8B400
Cover-Splash, Lh
2000-07-01 ~ ; W.KA24DE; , |
50817-8B400 |
— | ||
|
50915
|
50915
50915-31G30
Bracket-clutch hose
1999-05-01 ~ 2000-07-01; W.KA24DE; , |
50915-31G30 |
— | ||
|
51014
|
51014
51014-7Z030
Reinforce-1St Cross Member
2000-07-01 ~ ; W.KA24DE; , |
51014-7Z030 |
— | ||
|
51015
|
51015
51015-7Z030
Reinforce-1St Cross Member
2000-07-01 ~ ; W.KA24DE; , |
51015-7Z030 |
— | ||
|
57224
|
57224
57224-7Z030
Stopper Assy-Spare Wheel
2000-07-01 ~ ; W.KA24DE; , |
57224-7Z030 |
— | ||
|
57224
|
57224
57224-7Z030
Stopper Assy-Spare Wheel
2000-07-01 ~ ; W.KA24DE; , |
57224-7Z030 |
— | ||
|
64824Y
|
64824Y
50790-3S501
Bracket assy-canister
2000-07-01 ~ 2000-08-01; W.KA24DE; , |
50790-3S501 |
— | ||
|
64824Y
|
64824Y
50790-8Z400
Bracket assy-canister
2001-07-01 ~ ; W.KA24DE; , |
50790-8Z400 |
— | ||
|
64824Y
|
64824Y
50790-9Z410
Bracket assy-canister
2000-08-01 ~ 2001-07-01; W.KA24DE; , |
50790-9Z410 |
— | ||
|
64824Y
|
64824Y
50791-3S601
Bracket assy-canister
2000-07-01 ~ ; W.KA24DE; , |
50791-3S601 |
— | ||
|
64824YA
|
64824YA
50791-3S601
Bracket assy-canister
2000-07-01 ~ ; W.KA24DE; , |
50791-3S601 |
— | ||
|
75154X
|
75154X
50210-3S530
Bracket assy-fr suspension upper link rh
2000-07-01 ~ ; W.KA24DE; , |
50210-3S530 |
— | ||
|
75155X
|
75155X
50211-3S530
Bracket assy-fr suspension upper link lh
2000-07-01 ~ ; W.KA24DE; , |
50211-3S530 |
— | ||
|
95110X
|
95110X
95110-7Z030
Bracket assy-cab mounting,1st rh
2000-07-01 ~ ; W.KA24DE; , |
95110-7Z030 |
— | ||
|
95111X
|
95111X
95111-7Z030
Bracket assy-cab mounting,1st lh
2000-07-01 ~ ; W.KA24DE; , |
95111-7Z030 |
— | ||
|
95122N
|
95122N
95122-3S630
Bracket-cab mounting,2nd
2000-07-01 ~ ; W.KA24DE; , |
95122-3S630 |
— | ||
|
95124
|
95124
95142-7Z030
Bracket-cab body,4th rh
2000-07-01 ~ ; W.KA24DE; , |
95142-7Z030 |
— | ||
|
95125
|
95125
95143-7Z030
Bracket-cab body,4th lh
2000-07-01 ~ ; W.KA24DE; , |
95143-7Z030 |
— | ||
|
95130X
|
95130X
95130-7Z030
Bracket assy-cab mounting,3rd
2000-07-01 ~ ; W.KA24DE; , |
95130-7Z030 |
— | ||
|
95150
|
95150
95150-7Z030
Bracket assy-cab mounting,rh
2000-07-01 ~ ; W.KA24DE; , |
95150-7Z030 |
— | ||
|
95151M
|
95151M
95151-7Z030
Bracket assy-cab mounting,lh
2000-07-01 ~ ; W.KA24DE; , |
95151-7Z030 |
— | ||
