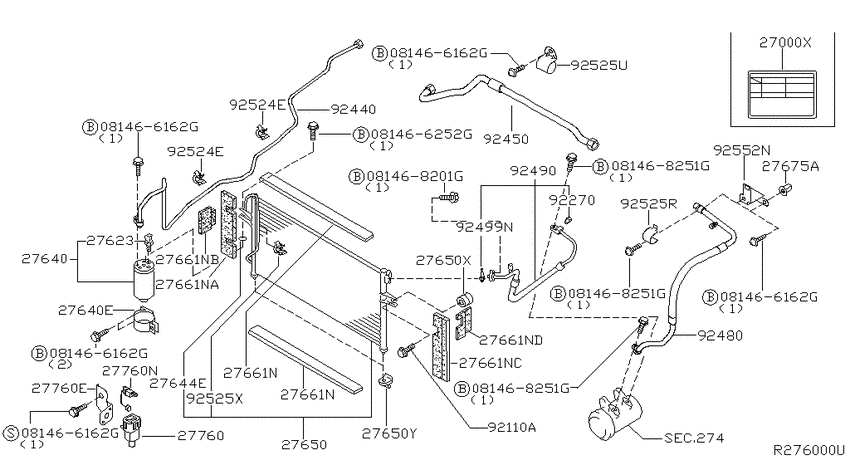

Condensor, liquid tank (2001-07-01 ~ 2002-09-01; W.(VG33E+VG33ER)) Diagram Nissan XTERRA
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- VG33E
- drive
- 2WD
- transmission
- MT
- body
- W
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
081466252G
|
081466252G
081466252G Bolt-hexagon |
081466252G |
from US $0.63 |
||
|
081468201G
|
081468201G
08146-8201G
Bolt-hexagon
|
08146-8201G |
— | ||
|
081468251G
|
081468251G
081468251G Bolt-hexagon |
081468251G |
US $0.91 |
||
|
081468251G
|
081468251G
081468251G Bolt-hexagon |
081468251G |
US $0.91 |
||
|
081468251G
|
081468251G
081468251G Bolt-hexagon |
081468251G |
US $0.91 |
||
|
27000X
|
27000X
27090-5B400
Label-Air Conditioner
1999-05-01 ~ 2000-07-01; W.SE; , |
27090-5B400 |
— | ||
|
27000X
|
27000X
27090-7B400
Label-Caution, Air Conditioner
2000-07-01 ~ 2001-07-01; W.SE; , |
27090-7B400 |
— | ||
|
27623
|
27623
92137-0W000 Switch Assy-Pressure2001-07-01 ~ 2002-09-01; W.(VG33E+VG33ER); , |
92137-0W000 |
from US $48.73 |
||
|
27623
|
27623
92137-4S100 Switch Assy-Pressure2000-07-01 ~ 2001-07-01; W.SE; , |
92137-4S100 |
US $115.49 |
||
|
27640
|
27640
92131-0Z800
Tank Assy-Liquid
2000-07-01 ~ 2001-04-01; W.SE; , |
92131-0Z800 |
— | ||
|
27640
|
27640
92131-7B400
Tank Assy-Liquid
2001-04-01 ~ 2001-07-01; W.SE; , |
92131-7B400 |
— | ||
|
27640
|
27640
92131-9E010
Tank Assy-Liquid
1999-05-01 ~ 2000-04-01; W.SE; , |
92131-9E010 |
— | ||
|
27640
|
27640
92133-4Z010
Tank Assy-Liquid
2003-01-01 ~ ; W.(VG33E+VG33ER); , |
92133-4Z010 |
— | ||
|
27640
|
27640
92135-8B400
Bracket-Liquid Tank
2000-07-01 ~ 2001-07-01; W.SE; , |
92135-8B400 |
— | ||
|
27640E
|
27640E
92135-8B400
Bracket-Liquid Tank
2000-07-01 ~ 2001-07-01; W.SE; , |
92135-8B400 |
— | ||
|
27644E
|
27644E
92471-N8210
O Ring
2000-07-01 ~ 2001-07-01; W.SE; , |
92471-N8210 |
— | ||
| replacement | |||||
|
27644E
|
27644E
92470HC050 O Ring2000-07-01 ~ 2001-07-01; W.SE; , |
92470HC050 |
from US $0.85 |
||
|
27650
|
27650
92110-3S501
Condenser Assy
1999-05-01 ~ 2000-07-01; *W.SE; , |
92110-3S501 |
— | ||
|
27650
|
27650
92110-7B400
Condenser Assy
1999-05-01 ~ 2000-05-01; W.SE; , |
92110-7B400 |
— | ||
|
27650
|
27650
92110-7B401
Condenser Assy
2000-07-01 ~ 2001-07-01; W.SE; , |
92110-7B401 |
— | ||
|
27650
|
27650
92110-7Z800
Condenser Assy
2001-07-01 ~ 2002-09-01; W.VG33E; , |
92110-7Z800 |
— | ||
|
27650
|
27650
92118-10V00
Mounting Rubber-Condenser, Upper
2000-07-01 ~ 2001-07-01; W.SE; , |
92118-10V00 |
— | ||
| replacement | |||||
|
27650
|
27650
9211810V0A Mounting-Rubber, Condenser Upper2000-07-01 ~ 2001-07-01; W.SE; , |
9211810V0A |
US $1.93 |
||
|
27650
|
27650
921192S400 Mounting Rubber-Condenser, Lower2000-07-01 ~ 2001-07-01; W.SE; , |
921192S400 |
US $4.18 |
||
|
27650X
|
27650X
92118-10V00
Mounting Rubber-Condenser, Upper
2000-07-01 ~ 2001-07-01; W.SE; , |
92118-10V00 |
— | ||
| replacement | |||||
|
27650X
|
27650X
9211810V0A Mounting-Rubber, Condenser Upper2000-07-01 ~ 2001-07-01; W.SE; , |
9211810V0A |
US $1.93 |
||
|
27650Y
|
27650Y
921192S400 Mounting Rubber-Condenser, Lower2000-07-01 ~ 2001-07-01; W.SE; , |
921192S400 |
US $4.18 |
||
|
27661N
|
27661N
92182-3S500
Seal-Condenser, Side
2001-07-01 ~ 2002-09-01; W.VG33E; , |
92182-3S500 |
— | ||
|
27661N
|
27661N
92184-8B400
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-8B400 |
— | ||
|
27661N
|
27661N
92184-3S510
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-3S510 |
— | ||
|
27661N
|
27661N
92184-3S501
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-3S501 |
— | ||
|
27661N
|
27661N
92184-3S511
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-3S511 |
— | ||
|
27661N
|
27661N
92182-3S500
Seal-Condenser, Side
2001-07-01 ~ 2002-09-01; W.VG33E; , |
92182-3S500 |
— | ||
|
27661N
|
27661N
92184-8B400
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-8B400 |
— | ||
|
27661N
|
27661N
92184-3S510
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-3S510 |
— | ||
|
27661N
|
27661N
92184-3S501
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-3S501 |
— | ||
|
27661N
|
27661N
92184-3S511
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-3S511 |
— | ||
|
27661NA
|
27661NA
92184-8B400
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-8B400 |
— | ||
|
27661NB
|
27661NB
92184-3S510
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-3S510 |
— | ||
|
27661NC
|
27661NC
92184-3S501
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-3S501 |
— | ||
|
27661ND
|
27661ND
92184-3S511
Seal-Condenser, Side
2000-07-01 ~ 2001-07-01; W.SE; , |
92184-3S511 |
— | ||
|
27675A
|
27675A
01281-00171 GROMMET-FUEL HOSE1999-05-01 ~ 2000-07-01; W.SE; , |
01281-00171 |
US $1.73 |
||
|
27760
|
27760
27722-31U00 Sensor Assy-Ambient2001-07-01 ~ ; W.SE; , |
27722-31U00 |
US $38.88 |
||
|
27760
|
27760
92313-7B400
Bracket-Ambient Sensor
2000-07-01 ~ 2001-07-01; W.SE; , |
92313-7B400 |
— | ||
|
27760
|
27760
92313-8Z400
Bracket-Ambient Sensor
2001-07-01 ~ ; W.(VG33E+VG33ER); , |
92313-8Z400 |
— | ||
|
27760
|
27760
92311-7B400
Switch-Ambient
2000-07-01 ~ 2001-07-01; W.SE; , |
92311-7B400 |
— | ||
|
27760E
|
27760E
92313-7B400
Bracket-Ambient Sensor
2000-07-01 ~ 2001-07-01; W.SE; , |
92313-7B400 |
— | ||
|
27760E
|
27760E
92313-8Z400
Bracket-Ambient Sensor
2001-07-01 ~ ; W.(VG33E+VG33ER); , |
92313-8Z400 |
— | ||
|
27760N
|
27760N
92311-7B400
Switch-Ambient
2000-07-01 ~ 2001-07-01; W.SE; , |
92311-7B400 |
— | ||
|
92110A
|
92110A
0143600511 BOLT2000-07-01 ~ 2001-07-01; W.SE; , |
0143600511 |
US $1.93 |
||
|
92270
|
92270
92270-10Y00
Valve assy-safety
2000-07-01 ~ 2001-07-01; W.SE; , |
92270-10Y00 |
— | ||
| replacement | |||||
|
92270
|
92270
92270VC700
ﾊﾞﾙﾌﾞ ｱﾂｼｰ
2000-07-01 ~ 2001-07-01; W.SE; , |
92270VC700 |
— | ||
|
92440
|
92440
92440-1Z610
Pipe-front cooler,high
2001-11-01 ~ 2002-09-01; W.(VG33E+VG33ER); , |
92440-1Z610 |
— | ||
|
92440
|
92440
92440-1Z700
Pipe-front cooler,high
2002-09-01 ~ 2003-01-01; W.(VG33E+VG33ER); , |
92440-1Z700 |
— | ||
|
92440
|
92440
92440-1Z701
Pipe-front cooler,high
2003-01-01 ~ ; W.(VG33E+VG33ER); , |
92440-1Z701 |
— | ||
|
92440
|
92440
92440-7B400
Pipe-front cooler,high
2000-07-01 ~ 2001-07-01; W.SE; , |
92440-7B400 |
— | ||
|
92450
|
92450
92450-7B400
Pipe-front cooler,low
1999-05-01 ~ 2000-07-01; W.SE; , |
92450-7B400 |
— | ||
|
92450
|
92450
92450-7B401
Pipe-front cooler,low
2000-07-01 ~ 2001-02-01; W.SE; , |
92450-7B401 |
— | ||
|
92450
|
92450
92450-9Z001
Pipe-front cooler,low
2001-02-01 ~ 2001-07-01; W.SE; , |
92450-9Z001 |
— | ||
|
92480
|
92480
92480-7B400
Hose-flexible,low
1999-05-01 ~ 2000-07-01; *W.SE; , |
92480-7B400 |
— | ||
|
92480
|
92480
92480-7B410
Hose-flexible,low
1999-09-01 ~ 2000-07-01; W.SE; , |
92480-7B410 |
— | ||
|
92480
|
92480
92480-7B411
Hose-flexible,low
1999-05-01 ~ 1999-09-01; W.SE; , |
92480-7B411 |
— | ||
|
92480
|
92480
92480-7B412
Hose-flexible,low
2000-07-01 ~ 2001-02-01; W.SE; , |
92480-7B412 |
— | ||
|
92480
|
92480
92480-9Z012
Hose-flexible,low
2001-02-01 ~ 2001-07-01; W.SE; , |
92480-9Z012 |
— | ||
|
92490
|
92490
92490-1Z610
Hose-flexible,high
2002-09-01 ~ ; W.(VG33E+VG33ER); , |
92490-1Z610 |
— | ||
|
92490
|
92490
92490-7B400
Hose-flexible,high
1999-05-01 ~ 1999-06-01; W.SE; , |
92490-7B400 |
— | ||
|
92490
|
92490
92490-7B411
Hose-flexible,high
1999-06-01 ~ 2000-07-01; W.SE; , |
92490-7B411 |
— | ||
|
92490
|
92490
92490-7B412
Hose-flexible,high
2000-07-01 ~ 2001-07-01; W.SE; , |
92490-7B412 |
— | ||
|
92499N
|
92499N
92499-9Z420
Cap-charge valve
2000-07-01 ~ 2001-07-01; W.SE; , |
92499-9Z420 |
— | ||
|
92524E
|
92524E
17557-3B000
Clip
1999-05-01 ~ 2000-07-01; *W.SE; , |
17557-3B000 |
— | ||
|
92524E
|
92524E
17557-3B000
Clip
1999-05-01 ~ 2000-07-01; *W.SE; , |
17557-3B000 |
— | ||
|
92525R
|
92525R
92553-01G00
Clamp-Tube
2000-07-01 ~ 2001-07-01; W.SE; , |
92553-01G00 |
— | ||
| replacement | |||||
|
92525R
|
92525R
92553-VL30A
Clip
2000-07-01 ~ 2001-07-01; W.SE; , |
92553-VL30A |
— | ||
|
92525U
|
92525U
92554-7B400
Clip
2000-07-01 ~ 2001-07-01; W.SE; , |
92554-7B400 |
— | ||
|
92525X
|
92525X
92559-1M200
Clip
2000-07-01 ~ 2001-07-01; W.SE; , |
92559-1M200 |
— | ||
|
92552N
|
92552N
92552-01G01
Bracket-Clamp Tube
2000-07-01 ~ 2001-04-01; W.SE; , |
92552-01G01 |
— | ||
| replacement | |||||
|
92552N
|
92552N
92552-VL30A
Bracket-tube clip
2000-07-01 ~ 2001-04-01; W.SE; , |
92552-VL30A |
— | ||
|
92552N
|
92552N
92552-9Z400
Bracket-tube clip
2001-04-01 ~ 2001-07-01; W.SE; , |
92552-9Z400 |
— | ||
