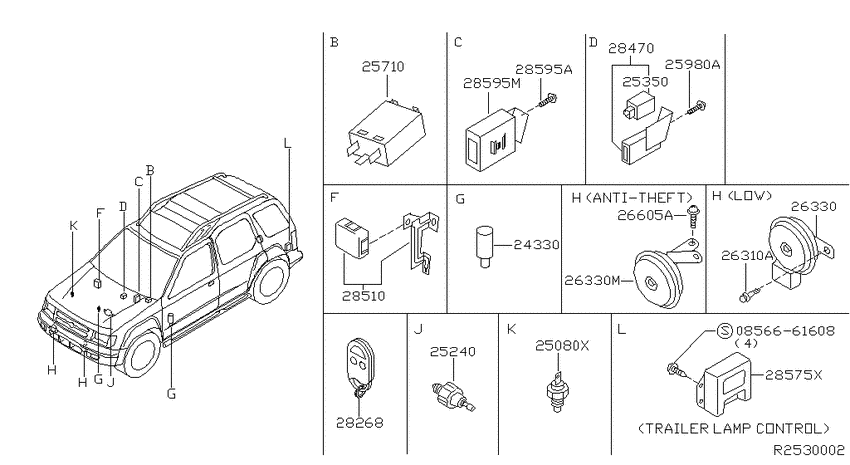

Electrical unit (1999-05-01 ~ 2000-07-01; SENSOR & UNIT (EXC AIR BAG); W) Diagram Nissan XTERRA
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- VG33E
- drive
- 2WD
- transmission
- MT
- body
- W
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0856661608
|
0856661608
08566-61608
ｽｸﾘﾕ-,ﾀﾂﾋﾟﾝｸﾞ
|
08566-61608 |
— | ||
|
24330
|
24330
24330C9900 Breaker Assy-Circuit, Power Window2002-09-01 ~ ; W.SE; , |
24330C9900 |
from US $22.32 |
||
|
24330
|
24330
24330C9960 Breaker Assy-Circuit, Power Window2001-07-01 ~ 2002-09-01; W.VG33E.SE +W.VG33ER; , |
24330C9960 |
from US $13.10 |
||
|
25080X
|
25080X
25080-0B000
Sensor-Temperature
2000-07-01 ~ 2001-07-01; W.VG33E; , |
25080-0B000 |
— | ||
|
25240
|
25240
25240-4M400 Switch Assy-Oil Pressure2001-07-01 ~ ; W; , |
25240-4M400 |
US $26.70 |
||
|
25240
|
25240
25240-89920 Switch Assy-Oil Pressure2000-07-01 ~ 2000-09-01; W; , |
25240-89920 |
US $21.31 |
||
| replacements | |||||
|
25240
|
25240
25240-89960
Switch Assy-Oil Pressure
2000-07-01 ~ 2000-09-01; W; , |
25240-89960 |
— | ||
| replacement | |||||
|
25240
|
25240
252408996E Switch Assy-Oil Pressure2000-07-01 ~ 2000-09-01; W; , |
252408996E |
from US $16.43 |
||
|
25240
|
25240
252408996E Switch Assy-Oil Pressure2000-07-01 ~ 2000-09-01; W; , |
252408996E |
from US $16.43 |
||
|
25240
|
25240
25240-89960
Switch Assy-Oil Pressure
2000-09-01 ~ 2001-07-01; W; , |
25240-89960 |
— | ||
| replacement | |||||
|
25240
|
25240
252408996E Switch Assy-Oil Pressure2000-09-01 ~ 2001-07-01; W; , |
252408996E |
from US $16.43 |
||
|
25350
|
25350
28456-1M201
Timer Assy-Rear Defogger
2000-07-01 ~ 2001-07-01; W; , |
28456-1M201 |
— | ||
|
25710
|
25710
25731-1M200
Flasher Unit
2000-07-01 ~ 2001-07-01; W; , |
25731-1M200 |
— | ||
|
25980A
|
25980A
01466-00022 Bolt2000-07-01 ~ 2001-07-01; W; , |
01466-00022 |
from US $0.74 |
||
|
26310A
|
26310A
01125-03231 BOLT2000-07-01 ~ 2001-07-01; W; , |
01125-03231 |
US $1.73 |
||
|
26330
|
26330
25620-7Z000
Horn Assy-Electric Low
2000-07-01 ~ 2001-07-01; W; , |
25620-7Z000 |
— | ||
|
26330
|
26330
25620-ZD30A
Horn Assy-Electric Low
2004-09-01 ~ ; W; , |
25620-ZD30A |
— | ||
|
26330
|
26330
25605-7B400
Horn Assy-Antitheft
2000-07-01 ~ 2001-07-01; *W.VG33E; , |
25605-7B400 |
— | ||
|
26330M
|
26330M
25605-7B400
Horn Assy-Antitheft
2000-07-01 ~ 2001-07-01; *W.VG33E; , |
25605-7B400 |
— | ||
|
26605A
|
26605A
0145600411 SCREW2000-07-01 ~ 2001-07-01; *W.VG33E; , |
0145600411 |
US $1.67 |
||
|
28268
|
28268
28268-7Z460
Switch Assy-Remote Control
2000-07-01 ~ 2001-07-01; *W.VG33E; , |
28268-7Z460 |
— | ||
|
28268
|
28268
28268-7Z800 Switch Assy-Remote Control2002-09-01 ~ ; W.SE; , |
28268-7Z800 |
US $146.67 |
||
|
28268
|
28268
28268-9B905
Switch Assy-Remote Control
1999-05-01 ~ 2000-07-01; *W.VG33E; , |
28268-9B905 |
— | ||
| replacement | |||||
|
28268
|
28268
28268-9B921
Switch assy-remote
1999-05-01 ~ 2000-07-01; *W.VG33E; , |
28268-9B921 |
— | ||
|
28470
|
28470
28470-7Z000
Timer Assy-Seat Belt
2000-07-01 ~ 2001-07-01; W; , |
28470-7Z000 |
— | ||
|
28510
|
28510
28510-4S100
Amplifier Assy-Windshield Wiper
2000-07-01 ~ 2001-07-01; W.SE; , |
28510-4S100 |
— | ||
|
28575X
|
28575X
28575-0B710
Controller Assy-Lighting
2000-07-01 ~ 2001-04-01; W.VG33E; , |
28575-0B710 |
— | ||
|
28575X
|
28575X
28575-7Z400
Controller Assy-Lighting
2001-07-01 ~ ; W.(VG33E+VG33ER); , |
28575-7Z400 |
— | ||
|
28575X
|
28575X
28575-7Z410
Controller Assy-Lighting
2001-04-01 ~ 2001-07-01; W.VG33E; , |
28575-7Z410 |
— | ||
|
28595A
|
28595A
01466-00022 Bolt2000-07-01 ~ 2001-07-01; *W.VG33E; , |
01466-00022 |
from US $0.74 |
||
|
28595M
|
28595M
28595-7Z000
Controller Assy-Smart Entrance
1999-05-01 ~ 2000-07-01; *W.VG33E; , |
28595-7Z000 |
— | ||
|
28595M
|
28595M
28595-7Z460
Controller Assy-Smart Entrance
2000-07-01 ~ 2001-07-01; *W.VG33E; , |
28595-7Z460 |
— | ||
|
28595M
|
28595M
28595-7Z800
Controller Assy-Smart Entrance
2002-09-01 ~ ; W.SE; , |
28595-7Z800 |
— | ||
