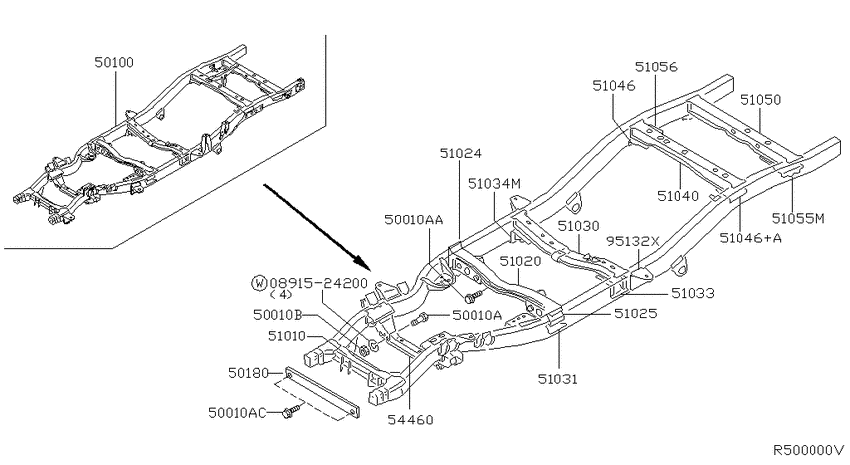

Frame (2000-07-01 ~ 2001-07-01; FRAME ASSY & CROSS MEMBER; W.VG33E) Diagram Nissan XTERRA
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- VG33E
- drive
- 2WD
- transmission
- MT
- body
- W
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0891524200
|
0891524200
08915-24200
Пружинная шайба
|
08915-24200 |
— | ||
|
50010A
|
50010A
01125-0018U
Bolt
2000-07-01 ~ 2001-07-01; W.VG33E; , |
01125-0018U |
— | ||
|
50010A
|
50010A
01125-0067U
Bolt
2004-03-01 ~ ; W.(VG33E+VG33ER); , |
01125-0067U |
— | ||
|
50010A
|
50010A
51027-3S500
Bolt
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51027-3S500 |
— | ||
|
50010A
|
50010A
0112503161 BOLT2000-07-01 ~ 2001-07-01; W.VG33E; , |
0112503161 |
from US $0.93 |
||
|
50010A
|
50010A
0112503161 BOLT2000-07-01 ~ 2001-07-01; W.VG33E; , |
0112503161 |
from US $0.93 |
||
|
50010AA
|
50010AA
51027-3S500
Bolt
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51027-3S500 |
— | ||
|
50010AC
|
50010AC
0112503161 BOLT2000-07-01 ~ 2001-07-01; W.VG33E; , |
0112503161 |
from US $0.93 |
||
|
50010B
|
50010B
0122500491 NUT ASSY-BEARING LOCK2000-07-01 ~ 2001-07-01; W.VG33E; , |
0122500491 |
from US $3.06 |
||
|
50100
|
50100
50100-7Z210
Frame assy
1999-05-01 ~ 2000-07-01; W.VG33E; , |
50100-7Z210 |
— | ||
|
50100
|
50100
50100-7Z211
Frame assy
2000-07-01 ~ 2001-07-01; W.VG33E; , |
50100-7Z211 |
— | ||
|
50100
|
50100
50100-7Z810
Frame assy
2001-07-01 ~ 2002-09-01; W.(VG33E+VG33ER); , |
50100-7Z810 |
— | ||
|
50100
|
50100
50100-7Z811
Frame assy
2002-09-01 ~ ; W.(VG33E+VG33ER); , |
50100-7Z811 |
— | ||
|
50180
|
50180
50180-7Z000
Member assy-cross,front sideextension
1999-05-01 ~ 2000-07-01; W.VG33E; , |
50180-7Z000 |
— | ||
|
50180
|
50180
50180-7Z021
Member assy-cross,front sideextension
2000-07-01 ~ 2001-07-01; W.VG33E; , |
50180-7Z021 |
— | ||
|
50180
|
50180
50180-7Z022
Member Assy-Cross, Front Side Extension
2001-07-01 ~ ; W.(VG33E+VG33ER); , |
50180-7Z022 |
— | ||
|
51010
|
51010
51010-7Z030
Member Assy-1St Cross
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51010-7Z030 |
— | ||
|
51020
|
51020
51021-2S530
Member-2Nd Cross
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51021-2S530 |
— | ||
|
51024
|
51024
51024-4S130
Bracket-2Nd Cross Member, Rh
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51024-4S130 |
— | ||
|
51025
|
51025
51025-4S130
Bracket-2nd cross member,lh
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51025-4S130 |
— | ||
|
51030
|
51030
51030-7Z035
Member assy-cross,3rd
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51030-7Z035 |
— | ||
|
51030
|
51030
51030-8Z830
Member Assy-3Rd Cross
2001-07-01 ~ ; W.(VG33E+VG33ER); , |
51030-8Z830 |
— | ||
|
51031
|
51031
51026-2S530
Member-3Rd Cross, Upper
2001-07-01 ~ ; W.(VG33E+VG33ER); , |
51026-2S530 |
— | ||
|
51033
|
51033
51035-74P30
Gusset Assy-3Rd Cross Member
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51035-74P30 |
— | ||
|
51034M
|
51034M
51034-74P30
Gusset-3Rd Cross Member
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51034-74P30 |
— | ||
|
51040
|
51040
51040-8B430
Member Assy-4Th Cross
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51040-8B430 |
— | ||
|
51046
|
51046
51042-15G30
Gusset-cross member,a
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51042-15G30 |
— | ||
|
51046
|
51046
51042-7Z830
Gusset-Cross Member, A
2002-09-01 ~ ; W.(VG33E+VG33ER); , |
51042-7Z830 |
— | ||
|
51046
|
51046
51043-15G30
Gusset-Cross Member, A
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51043-15G30 |
— | ||
|
51046+A
|
51046+A
51043-15G30
Gusset-Cross Member, A
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51043-15G30 |
— | ||
|
51050
|
51050
51050-7Z030
Member Assy-5Th Cross
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51050-7Z030 |
— | ||
|
51055M
|
51055M
51055-3S630
Gusset-5Th Cross Member, Lh
1999-05-01 ~ 2000-07-01; W.VG33E; , |
51055-3S630 |
— | ||
|
51056
|
51056
51054-3S630
Gusset-Cross Member, C
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51054-3S630 |
— | ||
|
54460
|
54460
51090-3S530
Member Assy-Cross, Front Suspension
2000-07-01 ~ 2001-07-01; W.VG33E; , |
51090-3S530 |
— | ||
|
95132X
|
95132X
95132-7Z030
Bracket-cab mounting,3rd
2000-07-01 ~ 2001-07-01; W.VG33E; , |
95132-7Z030 |
— |
