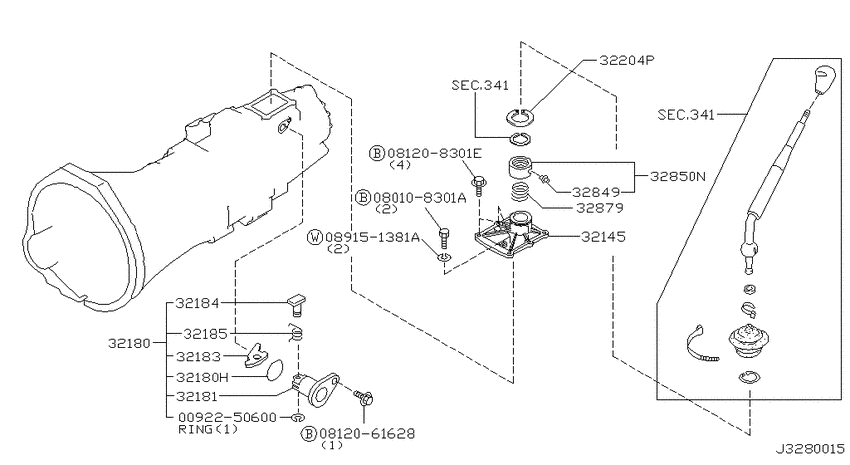

Transmission shift control (1999-05-01 ~ 2000-07-01; HOUSING & CHECKING ASSY(FS5R30A); 2WD.VG33E.MT +2WD.AT) Diagram Nissan XTERRA
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- VG33E
- drive
- 2WD
- transmission
- MT
- body
- W
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0092250600
|
0092250600
00922-50600
ﾘﾝｸﾞ,ｽﾅﾂﾌﾟ
|
00922-50600 |
— | ||
|
080108301A
|
080108301A
08010-8301A
Bolt-hexagon
|
08010-8301A |
— | ||
|
0812061628
|
0812061628
0812061628 Bolt-hexagon |
0812061628 |
from US $2.21 |
||
|
081208301E
|
081208301E
08120-8301E
Bolt-hexagon
|
08120-8301E |
— | ||
|
32145
|
32145
32515-4S500
Housing-Shift Control
2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
32515-4S500 |
— | ||
|
32180
|
32180
32180-01G64 Checking Assy-Reverse2005-01-01 ~ ; 2WD.(VG33E+VG33ER).MT; , |
32180-01G64 |
US $26.06 |
||
|
32180
|
32180
32180-01G65
Checking Assy-Reverse
2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
32180-01G65 |
— | ||
| replacement | |||||
|
32180
|
32180
32180-01GGA
ﾘﾊﾞ-ｽ ﾁｴﾂｸ ASSY
2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
32180-01GGA |
— | ||
|
32180
|
32180
32180-01G6A
Checking Assy-Reverse
2006-12-01 ~ ; 2WD.(VG33E+VG33ER).MT; , |
32180-01G6A |
— | ||
|
32180
|
32180
31933X0100 Seal-O Ring2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
31933X0100 |
US $0.81 |
||
|
32180
|
32180
32182-EA000 Seal-O Ring2005-01-01 ~ ; 2WD.(VG33E+VG33ER).MT; , |
32182-EA000 |
US $1.73 |
||
|
32180H
|
32180H
31933X0100 Seal-O Ring2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
31933X0100 |
US $0.81 |
||
|
32180H
|
32180H
32182-EA000 Seal-O Ring2005-01-01 ~ ; 2WD.(VG33E+VG33ER).MT; , |
32182-EA000 |
US $1.73 |
||
|
32181
|
32181
32186-01G63 Sleeve-Reverse Checking2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
32186-01G63 |
US $17.57 |
||
|
32183
|
32183
32183-31G00 Cam-Reverse Checking2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
32183-31G00 |
US $4.03 |
||
|
32183
|
32183
32183-31G0A
Cam-Reverse Checking
2006-12-01 ~ ; 2WD.(VG33E+VG33ER).MT; , |
32183-31G0A |
— | ||
|
32183
|
32183
32183-31G10 Cam-Reverse Checking2001-07-01 ~ ; 2WD.(VG33E+VG33ER).MT; , |
32183-31G10 |
US $4.18 |
||
|
32184
|
32184
32184-V5003 Shaft Set-Cam2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
32184-V5003 |
US $2.45 |
||
|
32185
|
32185
32185-E9801 Spring-Reverse Checking2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
32185-E9801 |
US $1.73 |
||
|
32204P
|
32204P
32204V5004 Ring-Snap, Control Lever2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
32204V5004 |
from US $2.07 |
||
|
32849
|
32849
32849-V5003 Pin-Control Arm2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
32849-V5003 |
US $4.03 |
||
|
32850N
|
32850N
32870V5003 Socket Assy-Control Lever1999-05-01 ~ 2000-07-01; 2WD.VG33E.MT; , |
32870V5003 |
from US $18.71 |
||
|
32879
|
32879
32879-01P04 Spring-Control Lever2000-07-01 ~ 2001-07-01; 2WD.VG33E.MT; , |
32879-01P04 |
from US $2.87 |
||
