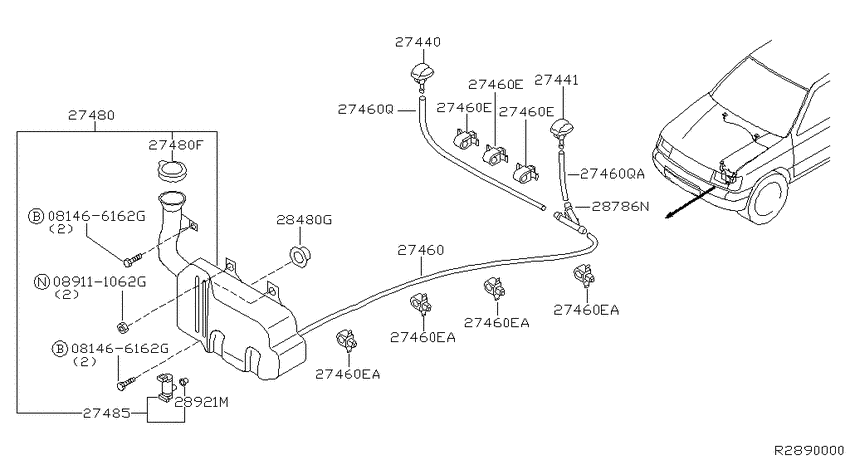

Windshield washer (2000-07-01 ~ 2001-07-01; FRONT; W) Diagram Nissan XTERRA
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- VG33E
- drive
- 2WD
- transmission
- MT
- body
- W
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
27440
|
27440
28930-3S500
Nozzle Assy-Washer, Rh
2000-07-01 ~ 2001-07-01; W; , |
28930-3S500 |
— | ||
|
27441
|
27441
28931-3S500
Nozzle Assy-Washer, Lh
2000-07-01 ~ 2001-07-01; W; , |
28931-3S500 |
— | ||
|
27460
|
27460
28940-3S520
Tube-Washer, Windshield
2000-07-01 ~ 2001-07-01; W; L=1950S/#B7461-89910 |
28940-3S520 |
— | ||
|
27460
|
27460
28940-9Z420
Tube-Washer, Windshield
2001-07-01 ~ ; W; L=1950S/#B7461-89910 |
28940-9Z420 |
— | ||
|
27460
|
27460
28982-7Z002
Grommet
2000-07-01 ~ 2001-07-01; W.SE; , |
28982-7Z002 |
— | ||
|
27460
|
27460
2894561Y00 Clip2000-07-01 ~ 2001-07-01; W; , |
2894561Y00 |
US $6.48 |
||
|
27460
|
27460
28945-7Z000 Clip1999-05-01 ~ 2000-07-01; W.SE; , |
28945-7Z000 |
US $2.30 |
||
|
27460
|
27460
28945-7Z010
Clip
2000-07-01 ~ 2001-07-01; W.SE; , |
28945-7Z010 |
— | ||
|
27460
|
27460
28945-8B400
Clip
2000-07-01 ~ 2001-07-01; W; , |
28945-8B400 |
— | ||
|
27460
|
27460
2894517V00 Clip2000-07-01 ~ 2001-07-01; W.SE; , |
2894517V00 |
from US $0.82 |
||
|
27460
|
27460
28940-3S500
Tube-Washer, Windshield
2000-07-01 ~ 2001-07-01; W; L=420 S/#B7461-89910 |
28940-3S500 |
— | ||
|
27460
|
27460
28940-3S510
Tube-Washer, Windshield
2000-07-01 ~ 2001-07-01; W; L=120 S/#B7461-89910 |
28940-3S510 |
— | ||
|
27460E
|
27460E
28945-8B400
Clip
2000-07-01 ~ 2001-07-01; W; , |
28945-8B400 |
— | ||
|
27460E
|
27460E
2894517V00 Clip2000-07-01 ~ 2001-07-01; W.SE; , |
2894517V00 |
from US $0.82 |
||
|
27460E
|
27460E
28945-8B400
Clip
2000-07-01 ~ 2001-07-01; W; , |
28945-8B400 |
— | ||
|
27460E
|
27460E
2894517V00 Clip2000-07-01 ~ 2001-07-01; W.SE; , |
2894517V00 |
from US $0.82 |
||
|
27460E
|
27460E
28945-8B400
Clip
2000-07-01 ~ 2001-07-01; W; , |
28945-8B400 |
— | ||
|
27460E
|
27460E
2894517V00 Clip2000-07-01 ~ 2001-07-01; W.SE; , |
2894517V00 |
from US $0.82 |
||
|
27460EA
|
27460EA
2894517V00 Clip2000-07-01 ~ 2001-07-01; W.SE; , |
2894517V00 |
from US $0.82 |
||
|
27460EA
|
27460EA
2894517V00 Clip2000-07-01 ~ 2001-07-01; W.SE; , |
2894517V00 |
from US $0.82 |
||
|
27460EA
|
27460EA
2894517V00 Clip2000-07-01 ~ 2001-07-01; W.SE; , |
2894517V00 |
from US $0.82 |
||
|
27460EA
|
27460EA
2894517V00 Clip2000-07-01 ~ 2001-07-01; W.SE; , |
2894517V00 |
from US $0.82 |
||
|
27460Q
|
27460Q
28940-3S500
Tube-Washer, Windshield
2000-07-01 ~ 2001-07-01; W; L=420 S/#B7461-89910 |
28940-3S500 |
— | ||
|
27460Q
|
27460Q
28940-3S510
Tube-Washer, Windshield
2000-07-01 ~ 2001-07-01; W; L=120 S/#B7461-89910 |
28940-3S510 |
— | ||
|
27460QA
|
27460QA
28940-3S510
Tube-Washer, Windshield
2000-07-01 ~ 2001-07-01; W; L=120 S/#B7461-89910 |
28940-3S510 |
— | ||
|
27480
|
27480
28910-7Z001
Tank Assy-Windshield Washer
2000-07-01 ~ 2001-07-01; W.SE; , |
28910-7Z001 |
— | ||
|
27480
|
27480
28910-7Z800
Tank Assy-Windshield Washer
2001-07-01 ~ ; W; , |
28910-7Z800 |
— | ||
|
27480
|
27480
28913-8B700 Cap-Windshield Washer Tank2000-07-01 ~ 2000-11-01; W; , |
28913-8B700 |
US $5.11 |
||
|
27480F
|
27480F
28913-8B700 Cap-Windshield Washer Tank2000-07-01 ~ 2000-11-01; W; , |
28913-8B700 |
US $5.11 |
||
|
27485
|
27485
289201E400 Pump Assy-Washer2000-07-01 ~ 2000-11-01; W; , |
289201E400 |
US $27.86 |
||
|
27485
|
27485
28920VE000 Pump Assy-Washer2000-07-01 ~ 2001-07-01; W.SE; , |
28920VE000 |
US $33.82 |
||
|
28480G
|
28480G
24276-8B400
Protector
2000-07-01 ~ 2001-07-01; W; , |
24276-8B400 |
— | ||
|
28786N
|
28786N
28937-9E000
CONNECTOR-WASHER TUBE
2000-07-01 ~ 2001-07-01; W; , |
28937-9E000 |
— | ||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor2000-07-01 ~ 2000-11-01; W; , |
2892150Y00 |
US $4.57 |
||
|
28921M
|
28921M
2892150Y00 Packing-Washer Motor2000-07-01 ~ 2001-07-01; W.SE; , |
2892150Y00 |
US $4.57 |
