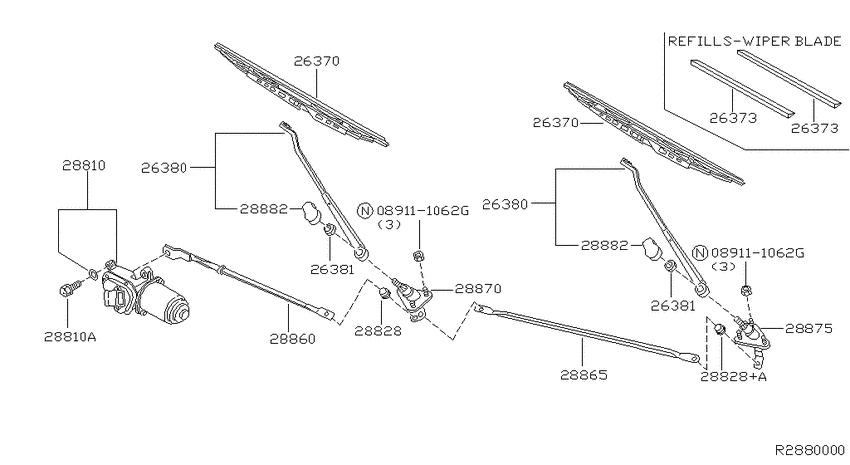

Windshield wiper (1999-05-01 ~ 2000-07-01; W) Diagram Nissan XTERRA
- Year
- 2000 - 2011
- Sales region
- U.S.A.
- Engine
- VG33E
- drive
- 2WD
- transmission
- MT
- body
- W
- trim lvl
- SE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
089111062G
|
089111062G
089111062G Nut-Spring |
089111062G |
from US $0.52 |
||
|
26370
|
26370
28890-7Z400
Blade Assy-Windshield Wiper
2001-06-01 ~ 2001-07-01; W; , |
28890-7Z400 |
— | ||
|
26370
|
26370
28890-8B410
Blade Assy-Windshield Wiper
2000-07-01 ~ 2001-06-01; W; , |
28890-8B410 |
— | ||
|
26370
|
26370
28890-8Z300
Blade Assy-Windshield Wiper
2002-08-01 ~ ; W; , |
28890-8Z300 |
— | ||
|
26370
|
26370
28890-7Z400
Blade Assy-Windshield Wiper
2001-06-01 ~ 2001-07-01; W; , |
28890-7Z400 |
— | ||
|
26370
|
26370
28890-8B410
Blade Assy-Windshield Wiper
2000-07-01 ~ 2001-06-01; W; , |
28890-8B410 |
— | ||
|
26370
|
26370
28890-8Z300
Blade Assy-Windshield Wiper
2002-08-01 ~ ; W; , |
28890-8Z300 |
— | ||
|
26373
|
26373
28895-8B410
Refill-Wiper Blade
2000-07-01 ~ 2001-07-01; W; , |
28895-8B410 |
— | ||
|
26373
|
26373
28895-8B410
Refill-Wiper Blade
2000-07-01 ~ 2001-07-01; W; , |
28895-8B410 |
— | ||
|
26380
|
26380
28880-8B400
Arm Assy-Windshield Wiper
2000-07-01 ~ 2001-07-01; W; , |
28880-8B400 |
— | ||
|
26380
|
26380
28880-8Z300 Arm Assy-Windshield Wiper2002-08-01 ~ ; W; , |
28880-8Z300 |
US $26.86 |
||
|
26380
|
26380
28880-8B400
Arm Assy-Windshield Wiper
2000-07-01 ~ 2001-07-01; W; , |
28880-8B400 |
— | ||
|
26380
|
26380
28880-8Z300 Arm Assy-Windshield Wiper2002-08-01 ~ ; W; , |
28880-8Z300 |
US $26.86 |
||
|
26381
|
26381
28889-01G00
Nut
2000-07-01 ~ 2001-07-01; W; , |
28889-01G00 |
— | ||
| replacement | |||||
|
26381
|
26381
2888901G0A Nut2000-07-01 ~ 2001-07-01; W; , |
2888901G0A |
from US $2.89 |
||
|
26381
|
26381
28889-01G00
Nut
2000-07-01 ~ 2001-07-01; W; , |
28889-01G00 |
— | ||
| replacement | |||||
|
26381
|
26381
2888901G0A Nut2000-07-01 ~ 2001-07-01; W; , |
2888901G0A |
from US $2.89 |
||
|
28810
|
28810
28810-3S500
Motor Assy-Windshield Wiper
1999-05-01 ~ 2000-07-01; W; , |
28810-3S500 |
— | ||
|
28810
|
28810
28810-9Z400
Motor Assy-Windshield Wiper
2000-07-01 ~ 2001-07-01; W; , |
28810-9Z400 |
— | ||
|
28810
|
28810
0143601741 SCREW2000-07-01 ~ 2001-07-01; W; , |
0143601741 |
US $1.73 |
||
|
28810A
|
28810A
0143601741 SCREW2000-07-01 ~ 2001-07-01; W; , |
0143601741 |
US $1.73 |
||
|
28828
|
28828
2882865F00 Seal-Ball Retainer1999-05-01 ~ 2000-07-01; W; , |
2882865F00 |
US $2.49 |
||
|
28828
|
28828
2882865F01 Seal-Ball Retainer2001-07-01 ~ ; W; , |
2882865F01 |
from US $1.83 |
||
|
28828
|
28828
2882865F01 Seal-Ball Retainer2000-07-01 ~ 2001-07-01; W; , |
2882865F01 |
from US $1.83 |
||
|
28828+A
|
28828+A
2882865F01 Seal-Ball Retainer2000-07-01 ~ 2001-07-01; W; , |
2882865F01 |
from US $1.83 |
||
|
28860
|
28860
28841-3S500
Link Assy-Connecting, No 1
1999-05-01 ~ 2000-07-01; W; , |
28841-3S500 |
— | ||
|
28860
|
28860
28841-9Z400
Link Assy-Connecting, No 1
2000-07-01 ~ 2001-07-01; W; , |
28841-9Z400 |
— | ||
|
28865
|
28865
28842-S3801
Link Assy-Connecting, No 2
2000-07-01 ~ 2001-07-01; W; , |
28842-S3801 |
— | ||
|
28870
|
28870
28850-01G60
Pivot Assy-Wiper, No 1
1999-05-01 ~ 2000-07-01; W; , |
28850-01G60 |
— | ||
| replacement | |||||
|
28870
|
28870
28850-VK90A
Pivot Assy-Wiper, No 1
1999-05-01 ~ 2000-07-01; W; , |
28850-VK90A |
— | ||
|
28870
|
28870
28850-9Z400
Pivot Assy-Wiper, No 1
2000-07-01 ~ 2001-07-01; W; , |
28850-9Z400 |
— | ||
|
28875
|
28875
28860-01G60
Pivot Assy-Wiper, No 2
1999-05-01 ~ 2000-07-01; W; , |
28860-01G60 |
— | ||
| replacement | |||||
|
28875
|
28875
28860-01G6A
Pivot Assy-Wiper, No 2
1999-05-01 ~ 2000-07-01; W; , |
28860-01G6A |
— | ||
|
28875
|
28875
28860-9Z400
Pivot Assy-Wiper, No 2
2000-07-01 ~ 2001-07-01; W; , |
28860-9Z400 |
— | ||
|
28882
|
28882
28882-8B400
Cover-Wiper Arm
2000-07-01 ~ 2001-07-01; W; , |
28882-8B400 |
— | ||
|
28882
|
28882
28882-8B400
Cover-Wiper Arm
2000-07-01 ~ 2001-07-01; W; , |
28882-8B400 |
— | ||
