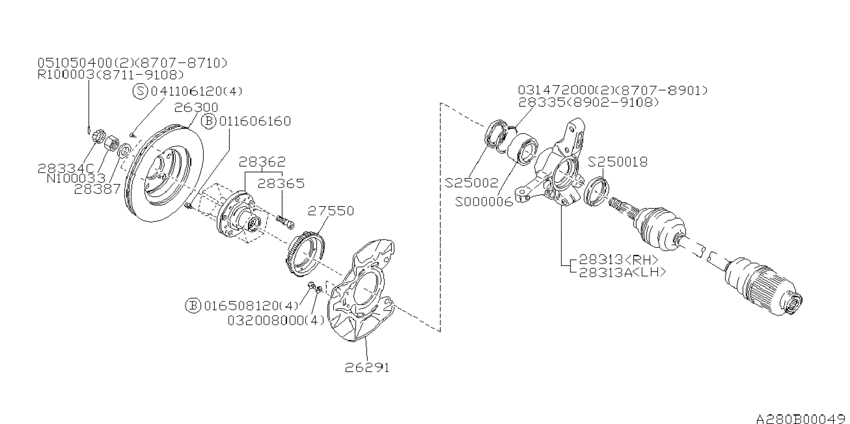

Front axle (2C.F4WD.VX; 1987-07-01~1991-08-01) Diagram Subaru ALCYONE
- Year
- 1987 - 1991
- Sales region
- Japan
- Engine
- ER27E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26291
|
26291
25143GA260 DISC COVER F1987-07-01 ~ 1991-08-01; 2C.VX |
25143GA260 |
US $23.65 |
||
|
26300
|
26300
25431GA220 BRAKE DISC F1987-07-01 ~ 1991-08-01; 2C.VX |
25431GA220 |
US $151.51 |
||
|
27550
|
27550
25344GA000 ﾄｰﾝ ﾎｲｰﾙ1987-07-01 ~ 1991-08-01; 2C.VX |
25344GA000 |
US $240.72 |
||
|
28313
|
28313
23511GA440 ﾊｳｼﾞﾝｸﾞ,ﾌﾛﾝﾄ ｱｸｽﾙ ﾗｲﾄ1987-07-01 ~ 1991-08-01; 2C.VX |
23511GA440 |
US $189.74 |
||
|
28313A
|
28313A
23511GA450 ﾊｳｼﾞﾝｸﾞ,ﾌﾛﾝﾄ ｱｸｽﾙ ﾚﾌﾄ1987-07-01 ~ 1991-08-01; 2C.VX |
23511GA450 |
US $189.74 |
||
|
28334C
|
28334C
23256GA000 ADJ CAP1987-07-01 ~ 1991-08-01; 2C.VX |
23256GA000 |
US $5.24 |
||
|
28335
|
28335
23245GA010 SNAP RINGDOJ1985-06-01 ~ 1991-08-01; 2C.(S4WD+F4WD) |
23245GA010 |
US $4.81 |
||
|
28335
|
28335
28035AA010 SNAP RING F1989-02-01 ~ 1991-08-01; 2C.VX |
28035AA010 |
from US $5.74 |
||
|
28362
|
28362
23610GA310 ﾊﾌﾞ ｺﾝﾌﾟﾘｰﾄ,ﾌﾛﾝﾄ ｱｸｽﾙ1987-07-01 ~ 1991-08-01; 2C.VX |
23610GA310 |
US $184.08 |
||
|
28365
|
28365
23621GA020 HUB BOLT1987-07-01 ~ 1991-08-01; 2C.VX |
23621GA020 |
US $3.96 |
||
|
28387
|
28387
23237GA010 WASHER1987-07-01 ~ 1991-08-01; 2C.VX |
23237GA010 |
US $7.08 |
||
|
N100033
|
N100033
902100033 NUT AXLE1987-07-01 ~ 1991-08-01; 2C.VX |
902100033 |
US $6.09 |
||
|
R100003
|
R100003
905100003 COTTER PIN1987-11-01 ~ 1991-08-01; 2C.VX |
905100003 |
US $0.28 |
||
|
S000006
|
S000006
906000006 TAPER ROLLER BEARING1987-07-01 ~ 1991-08-01; 2C.VX |
906000006 |
US $60.04 |
||
|
S250018
|
S250018
906250018 OIL SEAL IN1987-07-01 ~ 1991-08-01; 2C.VX |
906250018 |
from US $3.22 |
||
|
S25002
|
S25002
906250020 ｵｲﾙ ｼｰﾙ1987-07-01 ~ 1991-08-01; 2C.VX |
906250020 |
US $12.04 |
||
|
011606160
|
011606160
011606160 BOLTWASHER AY |
011606160 |
US $0.14 |
||
|
016508120
|
016508120
016508120
BOLT
|
016508120 |
— | ||
|
031472000
|
031472000
031472000 SNAP RINGIN |
031472000 |
US $5.52 |
||
|
032008000
|
032008000
032008000
SPRING WASHER
|
032008000 |
— | ||
|
051050400
|
051050400
051050400 COTTERPIN |
051050400 |
US $0.14 |
