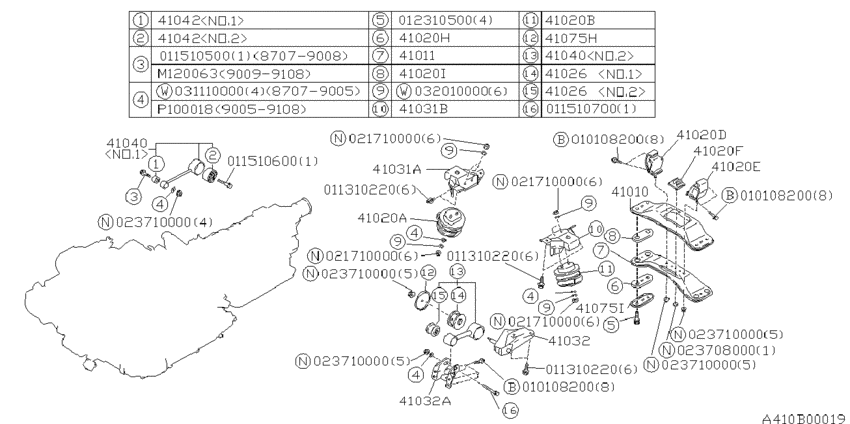

Engine mounting (E4AT.ER27E; 1985-06-01~1991-08-01) Diagram Subaru ALCYONE
- Year
- 1987 - 1991
- Sales region
- Japan
- Engine
- ER27E
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41010
|
41010
41021GA470 ｸﾛｽ ﾒﾝﾊﾞ ｱｾﾝﾌﾞﾘ1987-07-01 ~ 1991-08-01; ER27E |
41021GA470 |
US $89.92 |
||
|
41011
|
41011
41021GA390 CROSS MEMBER IN C4WD1987-07-01 ~ 1991-08-01; ER27E |
41021GA390 |
US $98.27 |
||
|
41020A
|
41020A
41022GA740 CUSHION RUBBER F RH1987-07-01 ~ 1991-08-01; ER27E |
41022GA740 |
US $161.42 |
||
|
41020D
|
41020D
41022GA800 CUSHION RUB R RH1987-07-01 ~ 1991-08-01; ER27E |
41022GA800 |
US $38.66 |
||
|
41020E
|
41020E
41022GA810 CUSHION RUB R LH1987-07-01 ~ 1991-08-01; ER27E |
41022GA810 |
US $38.66 |
||
|
41020F
|
41020F
41022GA820 STOPPER RUBBER1987-07-01 ~ 1991-08-01; ER27E |
41022GA820 |
US $8.50 |
||
|
41020H
|
41020H
41022GA400 CUSHION D1987-07-01 ~ 1991-08-01; ER27E |
41022GA400 |
US $5.81 |
||
|
41020I
|
41020I
41022GA200 CUSHION C1987-07-01 ~ 1991-08-01; ER27E |
41022GA200 |
US $5.81 |
||
|
41026
|
41026
41022GA770 BUSH BUFFER RODA1987-07-01 ~ 1991-08-01; ER27E; NO.1 |
41022GA770 |
US $17.70 |
||
|
41026
|
41026
41022GA780 BUSH BUFFER RODB1987-07-01 ~ 1991-08-01; ER27E; NO.2 |
41022GA780 |
US $17.70 |
||
|
41031A
|
41031A
41038GA960 BRKT COMPLFENG MTGRH1987-07-01 ~ 1991-08-01; ER27E |
41038GA960 |
US $40.64 |
||
|
41031B
|
41031B
41038GA970 BRKT COMPLFENG MTGLH1987-07-01 ~ 1991-08-01; ER27E |
41038GA970 |
US $40.64 |
||
|
41032
|
41032
41038GA800 BRKTACOMPLBUFFERROD1987-07-01 ~ 1991-08-01; ER27E |
41038GA800 |
US $47.15 |
||
|
41032A
|
41032A
41038GA830 BRKT B BUFFER ROD1987-07-01 ~ 1991-08-01; ER27E |
41038GA830 |
US $18.69 |
||
|
41040
|
41040
41040GA210 BUFFER ROD ASSY1987-07-01 ~ 1991-08-01; ER27E; NO.2 |
41040GA210 |
US $64.29 |
||
|
41040
|
41040
41041GA390 ROD ASSY PTG STPR1987-07-01 ~ 1989-01-01; ER27E; NO.1 |
41041GA390 |
US $47.15 |
||
|
41040
|
41040
41041GA391 ROD ASSY PTG STPR1989-02-01 ~ 1991-08-01; ER27E; NO.1 |
41041GA391 |
US $49.42 |
||
|
41042
|
41042
41022GA410
BUSH PTG STPR
1987-07-01 ~ 1991-08-01; ER27E; NO.2 |
41022GA410 |
— | ||
|
41042
|
41042
641038000 RUBBER BUSHSTP1987-07-01 ~ 1991-08-01; ER27E; NO.1 |
641038000 |
US $10.05 |
||
|
41075H
|
41075H
41025GA880 BUFFER RODBRKT ASSY1987-07-01 ~ 1991-08-01; ER27E |
41025GA880 |
US $6.09 |
||
|
41075I
|
41075I
41025GA360 PLATE AT1987-07-01 ~ 1991-08-01; ER27E |
41025GA360 |
US $6.23 |
||
|
M120063
|
M120063
901120063 BOLT AY1990-09-01 ~ 1991-08-01; ER27E |
901120063 |
US $1.27 |
||
|
P100018
|
P100018
903100018 WASHER105X24X231990-05-01 ~ 1991-08-01; ER27E |
903100018 |
US $0.42 |
||
|
010108200
|
010108200
010108200 FLANGE BOLTPLT |
010108200 |
from US $0.41 |
||
|
011310220
|
011310220
011310220
BOLTWASHER AY
|
011310220 |
— | ||
| replacement | |||||
|
011310220
|
011310220
901130017 BOLT ASSY M10X22 |
901130017 |
US $0.71 |
||
|
011510500
|
011510500
011510500 BOLTWASHER AY |
011510500 |
US $1.27 |
||
|
011510600
|
011510600
011510600 BOLTWASHER AY |
011510600 |
US $1.27 |
||
|
011510700
|
011510700
011510700 BOLT AY |
011510700 |
US $1.56 |
||
|
012310500
|
012310500
012310500 BOLT ASSY |
012310500 |
US $0.57 |
||
|
021710000
|
021710000
021710000 NUT |
021710000 |
US $0.28 |
||
|
023708000
|
023708000
023708000
Nut
|
023708000 |
— | ||
| replacement | |||||
|
023708000
|
023708000
902600003 Nut |
902600003 |
US $0.57 |
||
|
023710000
|
023710000
023710000
FLANGE NUT
|
023710000 |
— | ||
| replacement | |||||
|
023710000
|
023710000
902370051 NUT FLG MID |
902370051 |
US $0.45 |
||
|
031110000
|
031110000
031110000 WASHER |
031110000 |
from US $0.07 |
||
|
032010000
|
032010000
032010000 SPRING WASHER |
032010000 |
US $0.28 |
||
