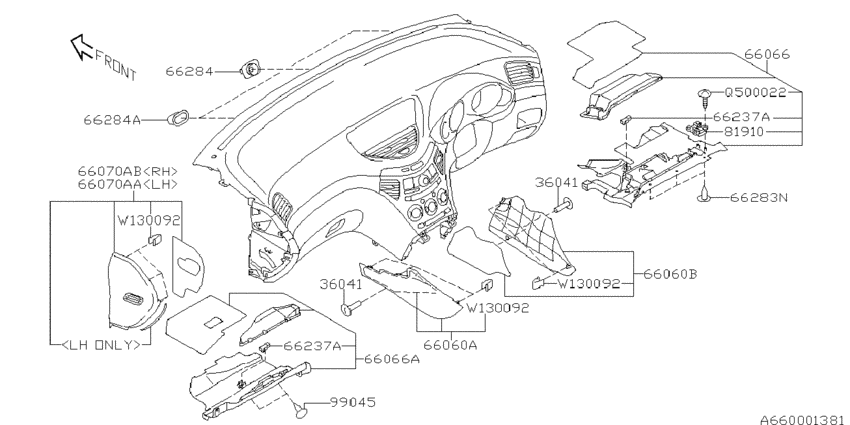

Instrument panel (INSTALL; X.RH; 2006-03-01~) Diagram Subaru B9 TRIBECA
- Year
- 2006 - 2007
- Sales region
- Europe
- Engine
- 30D
- drive
- 4W
- transmission
- 5AT
- grade
- 5M
- body
- X
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
36041
|
36041
36041AG00AJC
Stopper-accelertor plate
2006-03-01 ~ 2007-09-01; OFF BLACK; *X.5M.RH; T |
36041AG00AJC |
— | ||
|
36041
|
36041
36041AG00AJC
Stopper-accelertor plate
2006-03-01 ~ 2007-09-01; OFF BLACK; *X.5M.RH; T |
36041AG00AJC |
— | ||
|
66060A
|
66060A
66060XA08A
Panel-center,side passenger
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66060XA08A |
— | ||
|
66060B
|
66060B
66060XA09A
Panel-center,side driver
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66060XA09A |
— | ||
|
66066
|
66066
66066XA03A
Under-cover assembly driver
2006-03-01 ~ 2006-12-01; *X.5M.RH |
66066XA03A |
— | ||
|
66066
|
66066
66066XA03A9E
Under-cover assembly driver
2007-01-01 ~ 2007-09-01; *X.5M.RH; OPC.DA; T |
66066XA03A9E |
— | ||
|
66066A
|
66066A
66066XA02A
Under-cover assembly passenger
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66066XA02A |
— | ||
|
66070AA
|
66070AA
66073XA04AMV
Cover-instrument panel,passenger side
2006-03-01 ~ 2007-09-01; LIGHT GRAY; *X.5M.RH; T |
66073XA04AMV |
— | ||
|
66070AB
|
66070AB
66073XA05AMV
Cover-instrument panel,driver side
2006-03-01 ~ 2007-09-01; LIGHT GRAY; *X.5M.RH; T |
66073XA05AMV |
— | ||
|
66237A
|
66237A
66237AG01A LAMP POCKET SIA2006-03-01 ~ 2007-09-01; *X.5M.RH |
66237AG01A |
US $17.46 |
||
|
66237A
|
66237A
66237AG01A LAMP POCKET SIA2006-03-01 ~ 2007-09-01; *X.5M.RH |
66237AG01A |
US $17.46 |
||
|
66283N
|
66283N
66231FC030ML CLIP2006-03-01 ~ 2007-09-01; BLACK; *X.5M.RH; T |
66231FC030ML |
US $1.27 |
||
|
66284
|
66284
66151FA000
ｸﾞﾛﾒﾂﾄ A,ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ
2006-03-01 ~ 2007-08-01; *X.5M.RH |
66151FA000 |
— | ||
|
66284
|
66284
66151FA001 ｸﾞﾛﾒﾂﾄ A,ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ2007-08-01 ~ 2007-09-01; *X.5M.RH; OPC.DA |
66151FA001 |
US $4.25 |
||
|
66284A
|
66284A
66282AE01A
Grommet b-instrument panel
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66282AE01A |
— | ||
|
81910
|
81910
81910XA00B
Connector-holder
2006-03-01 ~ 2007-09-01; *X.5M.RH |
81910XA00B |
— | ||
|
99045
|
99045
99045AE03AMA
Clip
2006-03-01 ~ 2007-09-01; DARK GRAY; *X.5M.RH; T |
99045AE03AMA |
— | ||
|
Q500022
|
Q500022
904500022 SCREW TAP TRU M42006-03-01 ~ 2007-09-01; *X.5M.RH |
904500022 |
US $0.57 |
||
|
W130092
|
W130092
909130092 CLIP PIN 7X122006-03-01 ~ 2007-09-01; *X.5M.RH |
909130092 |
from US $0.52 |
||
|
W130092
|
W130092
909130092 CLIP PIN 7X122006-03-01 ~ 2007-09-01; *X.5M.RH |
909130092 |
from US $0.52 |
||
|
W130092
|
W130092
909130092 CLIP PIN 7X122006-03-01 ~ 2007-09-01; *X.5M.RH |
909130092 |
from US $0.52 |
