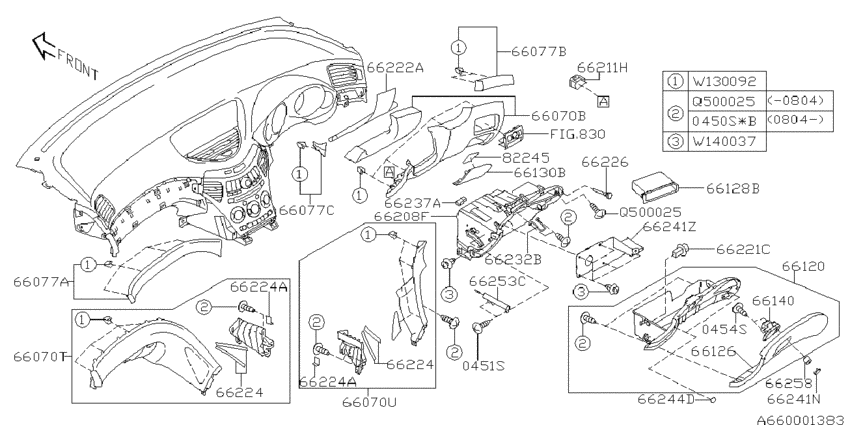

Instrument panel (LOWER; X.RH; 2006-03-01~) Diagram Subaru B9 TRIBECA
- Year
- 2006 - 2007
- Sales region
- Europe
- Engine
- 30D
- drive
- 4W
- transmission
- 5AT
- grade
- 5M
- body
- X
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0450S
|
0450S
045005200 Screw2006-03-01 ~ 2007-09-01; X |
045005200 |
US $0.14 |
||
|
0451S
|
0451S
045105120 TAPPING SCREW2006-03-01 ~ 2007-09-01; X |
045105120 |
US $0.28 |
||
|
0454S
|
0454S
045404123 TAPPING SCREW2006-03-01 ~ 2007-09-01; X |
045404123 |
US $0.14 |
||
|
66070B
|
66070B
66079XA04AMV
Cover-instrument panel,lower driver
2006-03-01 ~ 2007-09-01; LIGHT GRAY; *X.(BM+5M).RH; T |
66079XA04AMV |
— | ||
|
66070B
|
66070B
66079XA05AMV
Cover-instrument panel,lower driver
2006-03-01 ~ 2007-09-01; LIGHT GRAY; *X.5M.RH; T |
66079XA05AMV |
— | ||
|
66070T
|
66070T
66073XA06AMV
Cover-instrument panel,center passenger
2006-03-01 ~ 2006-11-01; LIGHT GRAY; *X.5M.RH; T |
66073XA06AMV |
— | ||
|
66070T
|
66070T
66073XA06BMV
Cover-instrument panel,center passenger
2006-11-01 ~ 2007-09-01; LIGHT GRAY; *X.5M.RH; T |
66073XA06BMV |
— | ||
|
66070U
|
66070U
66073XA07AMV
Cover-instrument panel,center driver
2006-03-01 ~ 2006-11-01; LIGHT GRAY; *X.5M.RH; T |
66073XA07AMV |
— | ||
|
66070U
|
66070U
66073XA07BMV
Cover-instrument panel,center driver
2006-11-01 ~ 2007-09-01; LIGHT GRAY; *X.5M.RH; T |
66073XA07BMV |
— | ||
|
66077A
|
66077A
66077XA05A
Ornament-panel assembly passenger
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66077XA05A |
— | ||
|
66077B
|
66077B
66077XA07A
Ornament-panel assembly driver,outer
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66077XA07A |
— | ||
|
66077C
|
66077C
66077XA06A
Ornament-panel assembly driver,inner
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66077XA06A |
— | ||
|
66120
|
66120
66120XA02AMV
Pocket assembly
2006-03-01 ~ 2006-11-01; LIGHT GRAY; *X.5M.RH; T |
66120XA02AMV |
— | ||
|
66120
|
66120
66120XA02BMV
Pocket assembly
2006-11-01 ~ 2007-09-01; LIGHT GRAY; *X.5M.RH; T |
66120XA02BMV |
— | ||
|
66126
|
66126
66126XA01AMV
Pocket-outer lid
2006-03-01 ~ 2007-09-01; LIGHT GRAY; *X.5M.RH; T |
66126XA01AMV |
— | ||
|
66128B
|
66128B
66128XA00A
Pocket-glove box
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66128XA00A |
— | ||
|
66130B
|
66130B
66135XA01AMV
Lid assembly-fuse box
2006-03-01 ~ 2007-09-01; LIGHT GRAY; *X.5M.RH; T |
66135XA01AMV |
— | ||
|
66140
|
66140
66140XA020MV
Lock assembly-pocket
2006-03-01 ~ 2007-09-01; LIGHT GRAY; X.(BM+5M).RH |
66140XA020MV |
— | ||
|
66208F
|
66208F
66208XA03A
Back panel-pocket
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66208XA03A |
— | ||
|
66211H
|
66211H
66211XA02A
Case-censor
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66211XA02A |
— | ||
|
66221C
|
66221C
66221AG00A
Stopper-pocket
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66221AG00A |
— | ||
|
66222A
|
66222A
66410XA36A
Insulator-cover,lower
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66410XA36A |
— | ||
|
66224
|
66224
66224XA00A
Tape-a
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66224XA00A |
— | ||
|
66224
|
66224
66224XA00A
Tape-a
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66224XA00A |
— | ||
|
66224A
|
66224A
66224XA01A
Tape-b
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66224XA01A |
— | ||
|
66224A
|
66224A
66224XA01A
Tape-b
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66224XA01A |
— | ||
|
66226
|
66226
66153GA000 CUSHION POCKET2006-03-01 ~ 2007-09-01; *X.5M.RH |
66153GA000 |
US $1.13 |
||
|
66232B
|
66232B
66232XA01B
Striker-lid
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66232XA01B |
— | ||
|
66237A
|
66237A
66237AG01A LAMP POCKET SIA2006-03-01 ~ 2007-09-01; *X.5M.RH |
66237AG01A |
US $17.46 |
||
|
66241N
|
66241N
66242XA010MV
Cover-key cylinder
2006-03-01 ~ 2007-09-01; LIGHT GRAY; X.(BM+5M).RH |
66242XA010MV |
— | ||
|
66241Z
|
66241Z
66241XA21A
Cover-panel pocket
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66241XA21A |
— | ||
|
66253C
|
66253C
66253XA01A
Damper complete-pocket
2006-03-01 ~ 2007-09-01; *X.5M.RH |
66253XA01A |
— | ||
|
66258
|
66258
66258XA000
Cylinder assy-glove box
2006-03-01 ~ 2007-09-01; X |
66258XA000 |
— | ||
|
82245
|
82245
82245XA00B
Label-fuse
2006-03-01 ~ 2007-09-01; *X.5M.RH |
82245XA00B |
— | ||
|
Q500025
|
Q500025
904500025 SCREW TAP TRU M52006-03-01 ~ 2007-09-01; *X.5M.RH |
904500025 |
from US $0.09 |
||
|
Q500025
|
Q500025
904500025 SCREW TAP TRU M52006-03-01 ~ 2007-09-01; *X.5M.RH |
904500025 |
from US $0.09 |
||
|
W130092
|
W130092
909130092 CLIP PIN 7X122006-03-01 ~ 2007-09-01; *X.5M.RH |
909130092 |
from US $0.52 |
||
|
W140037
|
W140037
909140037 CLIP 2PIECE D62006-03-01 ~ 2007-09-01; *X.5M.RH |
909140037 |
US $0.71 |
||
|
W140037
|
W140037
909140037 CLIP 2PIECE D62006-03-01 ~ 2007-09-01; *X.5M.RH |
909140037 |
US $0.71 |
