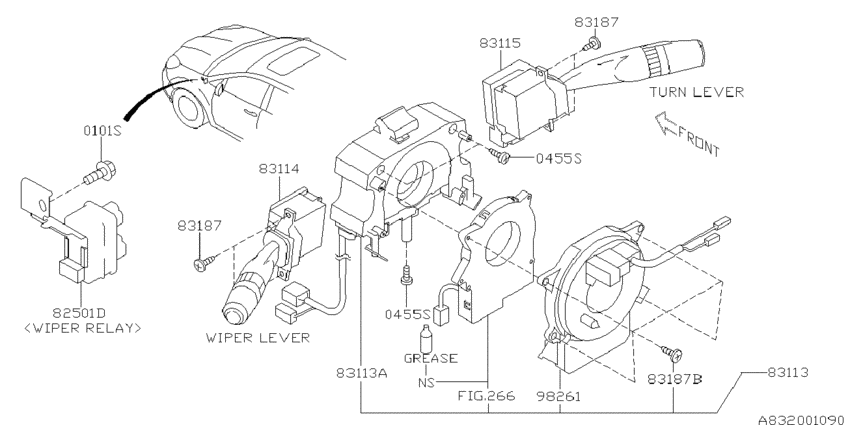

Switch (combination) (X.RH; 2006-03-01~) Diagram Subaru B9 TRIBECA
- Year
- 2006 - 2007
- Sales region
- Europe
- Engine
- 30D
- drive
- 4W
- transmission
- 5AT
- grade
- 5M
- body
- X
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0101S
|
0101S
010108200 FLANGE BOLTPLT2006-03-01 ~ 2007-09-01; X |
010108200 |
from US $0.35 |
||
|
0455S
|
0455S
045505120 TAPPING SCREW2006-03-01 ~ 2007-09-01; X |
045505120 |
US $0.28 |
||
|
0455S
|
0455S
045505120 TAPPING SCREW2006-03-01 ~ 2007-09-01; X |
045505120 |
US $0.28 |
||
|
82501D
|
82501D
86121XA01A
Relay
2006-03-01 ~ 2007-09-01; X.RH |
86121XA01A |
— | ||
|
83113
|
83113
83113XA01A
Combination base-switch assembly
2006-03-01 ~ 2007-08-01; X.RH |
83113XA01A |
— | ||
|
83113
|
83113
83113XA01B
Combination base-switch assembly
2007-08-01 ~ 2007-09-01; X.RH |
83113XA01B |
— | ||
|
83113
|
83113
83113XA02A
Combination base-switch assembly
2006-03-01 ~ 2006-12-01; X.(5E+5M).RH |
83113XA02A |
— | ||
|
83113
|
83113
83113XA02A9E
Combination base-switch assembly
2007-01-01 ~ 2007-08-01; X.(5E+5M).RH |
83113XA02A9E |
— | ||
|
83113
|
83113
83113XA02B
Combination base-switch assembly
2007-08-01 ~ 2007-09-01; X.(5E+5M).RH |
83113XA02B |
— | ||
|
83113A
|
83113A
83119AG000 BODY COMBI SW2006-03-01 ~ 2007-09-01; X |
83119AG000 |
US $48.71 |
||
|
83114
|
83114
83114XA002
Switch assembly-combination wiper select
2006-03-01 ~ 2006-12-01; X.(5E+5M).RH |
83114XA002 |
— | ||
|
83114
|
83114
83114XA0029E
Switch assembly-combination wiper select
2007-01-01 ~ 2007-09-01; X.(5E+5M).RH |
83114XA0029E |
— | ||
|
83114
|
83114
83114XA020
Switch assembly-combination wiper select
2006-03-01 ~ 2007-09-01; X.RH |
83114XA020 |
— | ||
|
83115
|
83115
83115AG011 ｽｲﾂﾁ ｱｾﾝﾌﾞﾘ,ｺﾝﾋﾞﾈｰｼﾖﾝ ﾀｰﾝ ﾃﾞｲﾏ2006-03-01 ~ 2007-07-01; X.RH |
83115AG011 |
US $76.61 |
||
|
83115
|
83115
83115AG012 SW TURN DIMMER2007-08-01 ~ 2007-09-01; X.RH |
83115AG012 |
US $76.61 |
||
|
83115
|
83115
83115AG071
SW TURN DIMMER
2006-03-01 ~ 2007-09-01; X.(5E+5M).RH |
83115AG071 |
— | ||
|
83187
|
83187
83113AA130 SCREW2006-03-01 ~ 2007-09-01; X |
83113AA130 |
from US $0.57 |
||
|
83187
|
83187
83113AA130 SCREW2006-03-01 ~ 2007-09-01; X |
83113AA130 |
from US $0.57 |
||
|
83187B
|
83187B
83113FC150 ｽｸﾘﾕ C, ﾛｰﾙｺﾈｸﾀ2006-03-01 ~ 2007-09-01; X |
83113FC150 |
US $0.57 |
||
|
98261
|
98261
83116XA01A
Steering roll connector
2006-03-01 ~ 2007-09-01; X.RH |
83116XA01A |
— | ||
|
98261
|
98261
83116XA02A
Steering roll connector
2006-03-01 ~ 2007-09-01; X.(5E+5M).RH |
83116XA02A |
— |
