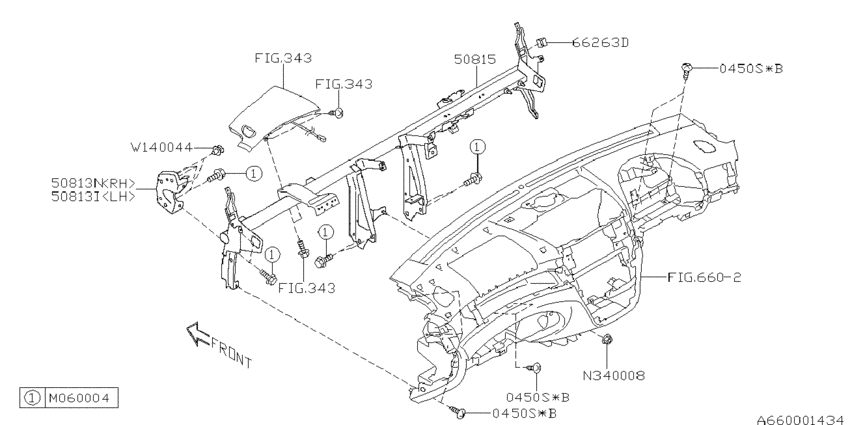

Instrument panel (ｽﾃｱﾘﾝｸﾞﾋﾞｰﾑ; W; 2008-04-01~) Diagram Subaru EXIGA
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- 204
- drive
- 4W
- transmission
- 4AT
- grade
- IL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0450S
|
0450S
045004120 TAPPING SCREW2008-04-01 ~ ; W |
045004120 |
US $0.28 |
||
|
0450S
|
0450S
045005160 Screw2008-04-01 ~ ; W |
045005160 |
US $0.14 |
||
|
50813I
|
50813I
66360FG0109P BRKT SPRT BEAM C2008-04-01 ~ ; *W; T |
66360FG0109P |
from US $16.85 |
||
|
50813N
|
50813N
66360FG0009P BRKT SPRT BEAM C2008-04-01 ~ ; *W; T |
66360FG0009P |
from US $19.17 |
||
|
50815
|
50815
66300YC0009P ﾋﾞｰﾑ ｺﾝﾌﾟﾘｰﾄ,ｽﾃｱﾘﾝｸﾞ2008-04-01 ~ ; *W.(IL+IS+GT); T |
66300YC0009P |
US $342.67 |
||
|
66263D
|
66263D
66263YC000 ﾌﾟﾛﾃｸﾀ,ｲﾝｽﾄﾙﾒﾝﾄ ﾊﾟﾈﾙ2008-04-01 ~ ; *W.(IL+IS+GT) |
66263YC000 |
US $1.56 |
||
|
M060004
|
M060004
901060004 FT BOLT2008-04-01 ~ ; *W |
901060004 |
from US $0.54 |
||
|
N340008
|
N340008
902340008 NUT FLG LOCK M62008-04-01 ~ ; *W.(IL+IS+GT) |
902340008 |
from US $0.68 |
||
|
W140044
|
W140044
909140044 CLIP 2PIECE D82008-04-01 ~ ; *W |
909140044 |
from US $0.59 |
