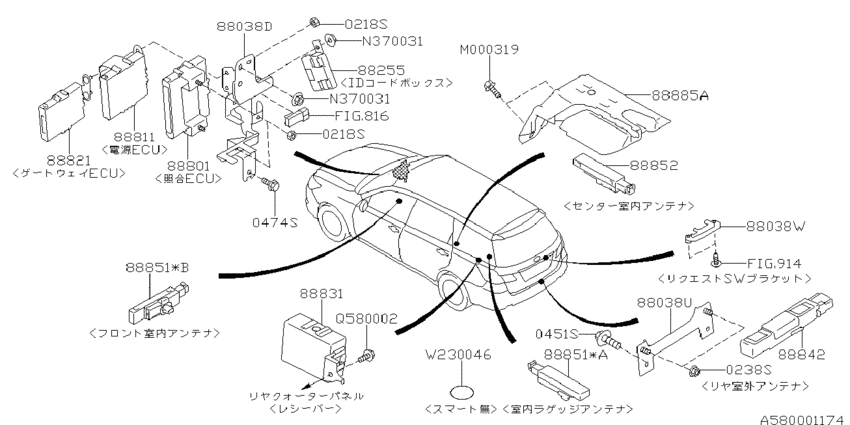

Key kit & key lock (ｷｰﾚｽｱｸｾｽﾖｳ ｱﾝﾃﾅ; W; 2008-04-01~) Diagram Subaru EXIGA
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- 204
- drive
- 4W
- transmission
- 4AT
- grade
- IL
- body
- W
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0218S
|
0218S
021806000 NUT2008-04-01 ~ ; W |
021806000 |
US $0.14 |
||
|
0238S
|
0238S
023806000 FLANGE NUT2008-04-01 ~ ; W |
023806000 |
from US $0.28 |
||
| replacement | |||||
|
0238S
|
0238S
023806006 FLANGE NUT2008-04-01 ~ ; W |
023806006 |
US $0.28 |
||
|
0451S
|
0451S
045104120
TAPPING SCREW
2008-04-01 ~ ; W |
045104120 |
— | ||
|
0474S
|
0474S
047406120
TAPPING SCREW-HEXAGON FLANGE HEAD
2008-04-01 ~ ; W |
047406120 |
— | ||
| replacement | |||||
|
0474S
|
0474S
904740011 TAPPING SCREW2008-04-01 ~ ; W |
904740011 |
from US $0.28 |
||
|
88038D
|
88038D
88038AG121 ﾌﾞﾗｹﾂﾄ,ｺﾝﾄﾛｰﾙ ﾕﾆﾂﾄ2008-04-01 ~ ; *W.(IL+IS+GT) |
88038AG121 |
US $21.38 |
||
|
88038U
|
88038U
88038YC000 ﾌﾞﾗｹﾂﾄ,ｱﾝﾃﾅ2008-04-01 ~ ; *W.(IL+IS+GT) |
88038YC000 |
US $8.50 |
||
|
88038W
|
88038W
88038FG060 BRKT SW REQUEST2008-04-01 ~ ; *W.(IL+IS+GT) |
88038FG060 |
US $7.93 |
||
|
88255
|
88255
88255FG000 ｱｲﾃﾞｲ ｺｰﾄﾞ ﾎﾞﾂｸｽ2008-04-01 ~ ; *W.(IL+IS) |
88255FG000 |
US $152.93 |
||
|
88801
|
88801
88801FG000 ｷｰﾚｽ ｱｸｾｽ ｺﾝﾄﾛｰﾙ ﾕﾆﾂﾄ2008-04-01 ~ ; *W.(IL+IS+GT); ND |
88801FG000 |
US $521.09 |
||
|
88811
|
88811
88811AG000 ﾊﾟﾜｰ ｻﾌﾟﾗｲ ｺﾝﾄﾛｰﾙ ﾕﾆﾂﾄ2008-04-01 ~ ; *W.(IL+IS+GT); ND |
88811AG000 |
US $521.09 |
||
|
88821
|
88821
88821AG000 ｹﾞｰﾄｳｴｲ ｺﾝﾄﾛｰﾙ ﾕﾆﾂﾄ2008-04-01 ~ ; *W.(IL+IS+GT); ND |
88821AG000 |
US $458.78 |
||
|
88831
|
88831
88831AG010 ﾚｼｰﾊﾞ ｱｾﾝﾌﾞﾘ2008-04-01 ~ ; *W.(IL+IS+GT); ND |
88831AG010 |
US $199.66 |
||
|
88842
|
88842
88842SC000 ANT EXT RR2008-04-01 ~ ; *W.(IL+IS+GT) |
88842SC000 |
US $69.10 |
||
|
88851
|
88851
88851AG110 ｱﾝﾃﾅ ｱｾﾝﾌﾞﾘ,ｲﾝﾃﾘｱ2008-04-01 ~ ; *W.(IL+IS+GT) |
88851AG110 |
US $53.67 |
||
|
88851
|
88851
88851YC010 ｱﾝﾃﾅ ｱｾﾝﾌﾞﾘ,ｲﾝﾃﾘｱ2008-04-01 ~ ; *W.(IL+IS+GT) |
88851YC010 |
US $53.67 |
||
|
88852
|
88852
88852SC000 ｱﾝﾃﾅ,ｲﾝﾃﾘｱ2008-04-01 ~ ; *W.(IL+IS+GT) |
88852SC000 |
US $53.67 |
||
|
88885A
|
88885A
88885YC000 ｹｰｽ,ｱﾝﾃﾅ2008-04-01 ~ ; W |
88885YC000 |
US $7.93 |
||
|
M000319
|
M000319
901000319 ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ M6X162008-04-01 ~ ; W |
901000319 |
from US $0.50 |
||
|
N370031
|
N370031
902370031 FLG NUT PNT M62008-04-01 ~ ; *W.(IL+IS+GT) |
902370031 |
from US $0.72 |
||
|
Q580002
|
Q580002
904580002 BOLT2008-04-01 ~ ; W |
904580002 |
US $0.42 |
||
|
W230046
|
W230046
909230046 GROMMET SHEET D302008-04-01 ~ ; *W.(IL+IS+GT) |
909230046 |
from US $0.71 |
||
