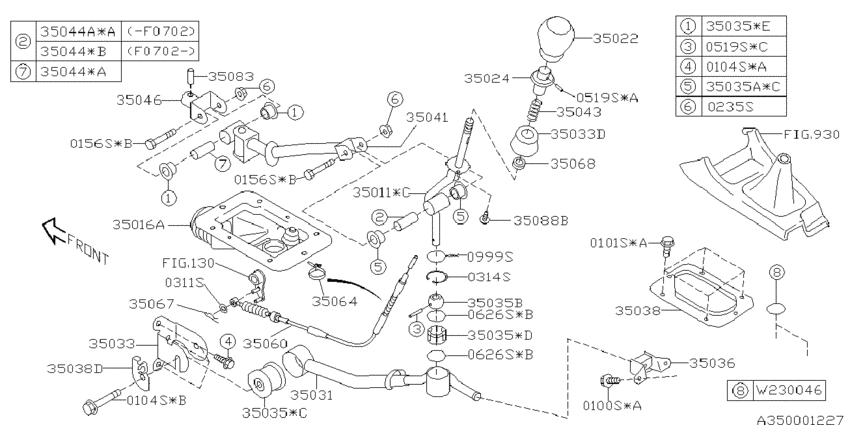

Manual gear shift system (ｼﾌﾄﾚﾊﾞｰ Cﾈﾝｶｲ-; 6MT; 2003-11-01~) Diagram Subaru FORESTER
- Year
- 2003 - 2011
- Sales region
- Japan
- Engine
- EJ255
- drive
- F4WD
- transmission
- 6MT
- grade
- STI
- body
- W
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0100S
|
0100S
010008160 FLANGE BOLT-PILOT2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
010008160 |
from US $0.26 |
||
|
0101S
|
0101S
010106160 FLANGE BOLT-PILOT2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
010106160 |
US $0.28 |
||
|
0104S
|
0104S
010408200 Bolt2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
010408200 |
US $0.57 |
||
|
0104S
|
0104S
010410600 FLANGE BOLT2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
010410600 |
US $1.27 |
||
|
0156S
|
0156S
015608600 BOLT2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
015608600 |
from US $0.31 |
||
|
0235S
|
0235S
023508000 SELF LOCK NUT2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
023508000 |
from US $0.67 |
||
|
0311S
|
0311S
031106000 WASHER2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
031106000 |
US $0.28 |
||
|
0314S
|
0314S
031432000 SNAP RINGIN2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
031432000 |
US $0.99 |
||
|
0519S
|
0519S
051903180 SPRING PIN2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
051903180 |
US $0.14 |
||
|
0519S
|
0519S
051904220 SPRING PIN2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
051904220 |
US $0.28 |
||
|
0626S
|
0626S
062620280 RING2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
062620280 |
US $0.57 |
||
|
0999S
|
0999S
099910190 LOCK WIRE2005-11-01 ~ 2007-01-01; 5MT +6MT +AT +SS |
099910190 |
US $0.28 |
||
|
35011
|
35011
35011SA010 ﾚﾊﾞｰ ｺﾝﾌﾟﾘｰﾄ,ｷﾞﾔ ｼﾌﾄ2005-11-01 ~ 2007-01-01; 6MT |
35011SA010 |
US $99.69 |
||
|
35016A
|
35016A
35016SA040
ﾌﾞｰﾂ,ｷﾞﾔ ｼﾌﾄ ｲﾝﾅ
2005-11-01 ~ 2007-01-01; 6MT |
35016SA040 |
— | ||
|
35022
|
35022
35022FE030 KNOB2005-11-01 ~ 2006-06-01; 6MT; ﾚｻﾞｰ ｷﾞﾔｼﾌﾄ |
35022FE030 |
US $127.16 |
||
|
35022
|
35022
35022FE031 KNOB LTHR 6MT2006-06-01 ~ 2007-01-01; 6MT |
35022FE031 |
US $127.16 |
||
|
35024
|
35024
35024FE010 KNOBSLIDER2005-11-01 ~ 2007-01-01; 6MT |
35024FE010 |
from US $47.54 |
||
|
35031
|
35031
35031SA020 ｽﾃｰ ｺﾝﾌﾟﾘｰﾄ,ｷﾞﾔ ｼﾌﾄ2005-11-01 ~ 2007-01-01; 6MT |
35031SA020 |
US $53.67 |
||
|
35033
|
35033
35033FE010 BRKT STAY2005-11-01 ~ 2007-01-01; 6MT |
35033FE010 |
US $32.14 |
||
|
35033D
|
35033D
35033FE001 BRKTHOLDER2005-11-01 ~ 2007-01-01; 6MT |
35033FE001 |
from US $19.83 |
||
|
35035
|
35035
35035FE010 BUSHINGSTAY2005-11-01 ~ 2007-01-01; 6MT |
35035FE010 |
US $30.16 |
||
|
35035
|
35035
35035KA010 BUSH B2005-11-01 ~ 2007-01-01; 5MT +6MT |
35035KA010 |
from US $2.42 |
||
|
35035
|
35035
35035SA000 Bush2005-11-01 ~ 2007-01-01; 6MT |
35035SA000 |
US $18.55 |
||
|
35035A
|
35035A
35035FE030 BUSHING2005-11-01 ~ 2007-01-01; 6MT |
35035FE030 |
from US $18.98 |
||
|
35035B
|
35035B
733146310 BUSH2005-11-01 ~ 2007-01-01; 6MT |
733146310 |
from US $1.74 |
||
|
35036
|
35036
35036AA010 CUSHION RUBBER2005-11-01 ~ 2007-01-01; 5MT +6MT |
35036AA010 |
from US $27.81 |
||
|
35038
|
35038
35038FE020 PLATE COMPL2005-11-01 ~ 2007-01-01; 5MT +6MT |
35038FE020 |
US $101.69 |
||
|
35038D
|
35038D
35038FE000 PLATE CABLE2005-11-01 ~ 2007-01-01; 6MT |
35038FE000 |
US $3.12 |
||
|
35041
|
35041
35041SA030
ﾛﾂﾄﾞ ｺﾝﾌﾟﾘｰﾄ,ｷﾞﾔ ｼﾌﾄ
2005-11-01 ~ 2007-01-01; 6MT |
35041SA030 |
— | ||
|
35043
|
35043
35043FE000 SPRING2005-11-01 ~ 2007-01-01; 6MT |
35043FE000 |
from US $5.37 |
||
|
35044
|
35044
35044AG030 SPACER2005-11-01 ~ 2007-01-01; 6MT |
35044AG030 |
from US $3.18 |
||
|
35044A
|
35044A
35044FE000 SPACER-SHIFT LEVER2005-11-01 ~ 2006-09-01; 5MT +6MT |
35044FE000 |
US $6.80 |
||
|
35044A
|
35044A
35044FE030 SPACER2006-10-01 ~ 2007-01-01; 5MT +6MT |
35044FE030 |
US $4.96 |
||
|
35046
|
35046
35046FE010 JOINT COMPL2005-11-01 ~ 2007-01-01; 6MT |
35046FE010 |
from US $18.11 |
||
|
35060
|
35060
35060SA000 ｹｰﾌﾞﾙ ｱｾﾝﾌﾞﾘ,ｼﾌﾄ2005-11-01 ~ 2007-01-01; 6MT |
35060SA000 |
US $128.57 |
||
|
35064
|
35064
35064FE000 BAND2005-11-01 ~ 2007-01-01; 6MT |
35064FE000 |
US $1.56 |
||
|
35067
|
35067
35067FE000 SHAFT PIN2005-11-01 ~ 2007-01-01; 6MT |
35067FE000 |
US $0.71 |
||
|
35068
|
35068
35068FE000 SEAT CUSHION2005-11-01 ~ 2007-01-01; 6MT |
35068FE000 |
US $0.75 |
||
|
35083
|
35083
633046020 SPRING PIN UNGS2005-11-01 ~ 2007-01-01; 5MT +6MT |
633046020 |
from US $0.63 |
||
|
35088B
|
35088B
35033FE020 BRKT SCREW2005-11-01 ~ 2007-01-01; 6MT |
35033FE020 |
from US $0.57 |
||
|
W230046
|
W230046
909230046 GROMMET SHEET D302005-11-01 ~ 2007-01-01; 5MT +6MT |
909230046 |
from US $0.71 |
