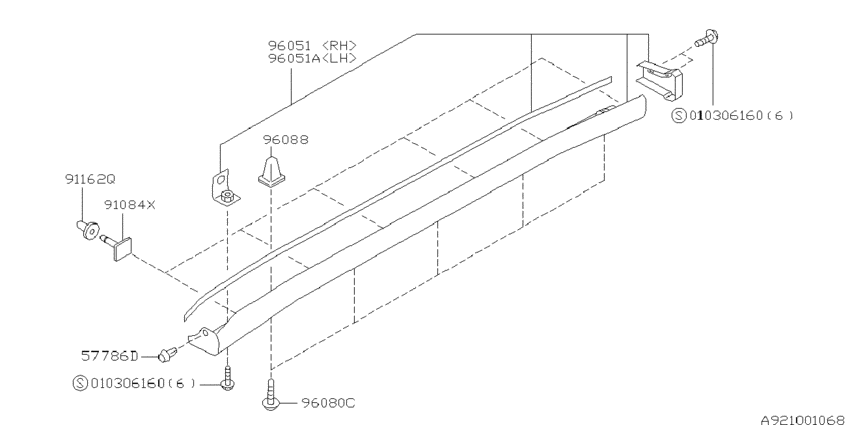

Spoiler (ｻｲﾄﾞ; 2C.22B; 1997-04-01~) Diagram Subaru IMPREZA
- Year
- 1998
- Sales region
- Japan
- Engine
- EJ22G
- drive
- F4WD
- transmission
- MT
- grade
- 22B
- body
- 2C
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
57786D
|
57786D
57718PA020 SCREW RIVET1997-04-01 ~ 1998-07-01; S.(HX2S+WRX+WRXSTI) +W.(HX2S+WRX#) +2C.(WRXRASTI+22B) |
57718PA020 |
US $1.84 |
||
|
91084X
|
91084X
91167AA110 CLIP-PIN,F1997-04-01 ~ 1998-07-01; S.(HX2S+WRX+WRXSTI) +W.(HX2S+WRX#) +2C.(WRXRASTI+22B) |
91167AA110 |
from US $1.39 |
||
|
91162Q
|
91162Q
91167AA000 CLIP1997-04-01 ~ 1998-07-01; S.(HX2S+WRX+WRXSTI) +W.(HX2S+WRX#) |
91167AA000 |
from US $0.57 |
||
|
96051
|
96051
96053FA280
ｻｲﾄﾞ ｽﾎﾟｲﾗ ｱｾﾝﾌﾞﾘ,ﾗｲﾄ
1997-04-01 ~ 1998-07-01; 2C.22B |
96053FA280 |
— | ||
|
96051A
|
96051A
96053FA290
ｻｲﾄﾞ ｽﾎﾟｲﾗ ｱｾﾝﾌﾞﾘ,ﾚﾌﾄ
1997-04-01 ~ 1998-07-01; 2C.22B |
96053FA290 |
— | ||
|
96080C
|
96080C
96050KA151 TAPPING SCREW ASSY1997-04-01 ~ 1998-07-01; S.(HX2S+WRX+WRXSTI) +W.(HX2S+WRX#) +2C.(WRXRASTI+22B) |
96050KA151 |
US $4.81 |
||
|
96088
|
96088
96056FA010 SCREW GROMMET1997-04-01 ~ 1998-07-01; S.(HX2S+WRX+WRXSTI) +W.(HX2S+WRX#) +2C.(WRXRASTI+22B) |
96056FA010 |
from US $0.67 |
||
|
010306160
|
010306160
010306160 FLANGE BOLT |
010306160 |
US $0.14 |
