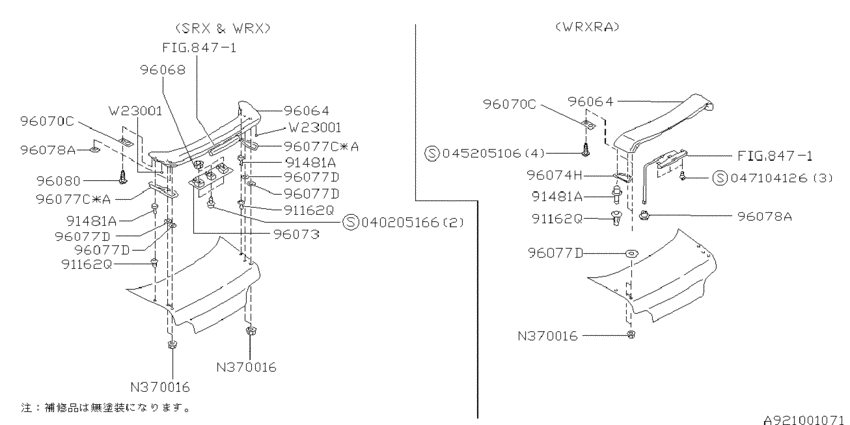

Spoiler (ﾘﾔ(ｺｶﾞﾀ & ｵｵｶﾞﾀ); S.(SRX+WRX+WRXRA); 1998-04-01~) Diagram Subaru IMPREZA
- Year
- 1996 - 1998
- Sales region
- Japan
- Engine
- EJ20K
- drive
- F4WD
- transmission
- MT
- grade
- WRX
- body
- S
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
91162Q
|
91162Q
91167AA000 CLIP1997-04-01 ~ 1998-07-01; S.(HX2S+WRX+WRXSTI) +W.(HX2S+WRX#) |
91167AA000 |
from US $0.61 |
||
|
91481A
|
91481A
96058FA100
CLIP
1997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX+WRXSTI+WRXRASTI) +2C.(WRXRASTI+WRXRVLTD); C |
96058FA100 |
— | ||
|
96064
|
96064
96051FA260NN SPOILER1997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX) +2C.WRXRVLTD; ｺｶﾞﾀ |
96051FA260NN |
US $722.16 |
||
|
96068
|
96068
96059FA110 NUT1997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX) +2C.WRXRVLTD; C |
96059FA110 |
US $1.98 |
||
|
96070C
|
96070C
96055FA210 ﾌﾞﾗｹﾂﾄ,ﾘﾔ ｽﾎﾟｲﾗ A1997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX) +2C.WRXRVLTD; C |
96055FA210 |
US $20.39 |
||
|
96073
|
96073
96054FA290NN COVER1997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX) +2C.WRXRVLTD; C |
96054FA290NN |
US $44.89 |
||
|
96077C
|
96077C
96056FA110 PACKING A1997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX) +2C.WRXRVLTD; C |
96056FA110 |
US $3.26 |
||
|
96077D
|
96077D
96056FA160 ﾊﾟﾂｷﾝｸﾞ,B ﾘﾔ ｽﾎﾟｲﾗ1997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX) +2C.WRXRVLTD; C |
96056FA160 |
US $1.13 |
||
|
96078A
|
96078A
96056FA120 SEAL R SPOILER1997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX) +2C.WRXRVLTD; C |
96056FA120 |
US $5.52 |
||
|
96080
|
96080
96059FA100 SCREW1997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX) +2C.WRXRVLTD; C |
96059FA100 |
US $1.42 |
||
|
N370016
|
N370016
902370016 FLANG NUT1997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX+WRXSTI+WRXRASTI) +2C.(WRXRASTI+WRXRVLTD); C |
902370016 |
US $0.99 |
||
|
W23001
|
W23001
909230010
ｸﾞﾛﾒﾂﾄ ｼｰﾄ
1997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX) +2C.WRXRVLTD; D=15; C |
909230010 |
— | ||
| replacement | |||||
|
W23001
|
W23001
909230043 GROMMET SHEET D151997-04-01 ~ 1998-07-01; S.(SX+HX2S+WRX) +2C.WRXRVLTD; D=15; C |
909230043 |
US $0.14 |
||
|
040205166
|
040205166
040205166
FLANGE SCREW
|
040205166 |
— | ||
|
045205106
|
045205106
045205106 TAPPING SCREW |
045205106 |
US $0.14 |
||
|
047104126
|
047104126
047104126
SCREW
|
047104126 |
— | ||
