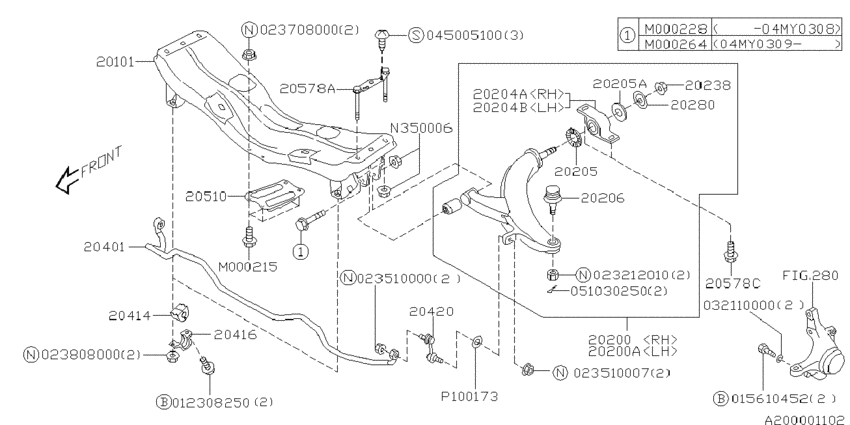

Front suspension ('02MY-'04MY; S.(RS+WRX); 2000-09-01~2004-03-01) Diagram Subaru IMPREZA
- Year
- 2001 - 2005
- Sales region
- U.S.A.
- Engine
- 205
- drive
- 4W
- transmission
- 5MT
- grade
- WRX
- body
- S
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
20101
|
20101
20101FE000 CROSS MBR COMPL F2000-09-01 ~ 2001-08-01; S.WRX +W.WRX |
20101FE000 |
US $584.81 |
||
|
20101
|
20101
20101FE020 CROSS MBR COMPL FB2001-08-01 ~ 2002-01-01; S.WRX +W.WRX |
20101FE020 |
US $584.81 |
||
|
20101
|
20101
20101SA000 CROSS MBR COMPL FB2002-01-01 ~ 2002-05-01; S.WRX +W.WRX |
20101SA000 |
US $529.58 |
||
|
20200
|
20200
20202FE160
Transverse link assembly-right
2000-09-01 ~ 2002-05-01; S.WRX |
20202FE160 |
— | ||
|
20200A
|
20200A
20202FE170
Transverse link assembly-left
2000-09-01 ~ 2002-05-01; S.WRX |
20202FE170 |
— | ||
|
20204A
|
20204A
20201FA050 BUSH AYTV LIN2000-09-01 ~ 2002-05-01; S +W |
20201FA050 |
from US $66.90 |
||
|
20204B
|
20204B
20201FA060 BUSH AYTV LIN2000-09-01 ~ 2002-05-01; S +W |
20201FA060 |
from US $65.18 |
||
|
20205
|
20205
20202AA000
STOPPER RUB RF
2000-09-01 ~ 2002-05-01; S +W |
20202AA000 |
— | ||
| replacement | |||||
|
20205
|
20205
20202AA001 STOPPER RUB RF2000-09-01 ~ 2002-05-01; S +W |
20202AA001 |
from US $5.22 |
||
|
20205A
|
20205A
20202AA010
STOPPER RUB RR
2000-09-01 ~ 2002-05-01; S +W |
20202AA010 |
— | ||
| replacement | |||||
|
20205A
|
20205A
20202AA011 STOPPER RUB RR2000-09-01 ~ 2002-05-01; S +W |
20202AA011 |
from US $5.33 |
||
|
20206
|
20206
21067GA050
BALL JOINT
2000-09-01 ~ 2002-05-01; S +W |
21067GA050 |
— | ||
| replacement | |||||
|
20206
|
20206
20206AJ000 BALL JOINT2000-09-01 ~ 2002-05-01; S +W |
20206AJ000 |
from US $23.64 |
||
|
20238
|
20238
20207AA000 SELF LOCK NUT M162000-09-01 ~ 2002-05-01; S +W |
20207AA000 |
US $7.22 |
||
|
20280
|
20280
20206AA000 WASHERTV LINK2000-09-01 ~ 2002-05-01; S +W |
20206AA000 |
from US $2.15 |
||
|
20401
|
20401
20401FE000 STABILIZER F2000-09-01 ~ 2002-05-01; S.WRX; STABILIZER(D=20) |
20401FE000 |
US $131.69 |
||
|
20414
|
20414
20401AC011 BUSHING-STABILIZER, D192000-09-01 ~ 2002-05-01; S +W; FOR STABILIZER(D=20) |
20401AC011 |
from US $3.37 |
||
|
20416
|
20416
20416FE000 CLAMP, STABILIZER BUSHING2000-09-01 ~ 2002-05-01; S +W |
20416FE000 |
from US $4.35 |
||
|
20420
|
20420
20470FE000
STABILIZER LK COMPL
2000-09-01 ~ 2002-05-01; S |
20470FE000 |
— | ||
| replacement | |||||
|
20420
|
20420
20470SA001 LINK ASSY-FRONT STABILIZER2000-09-01 ~ 2002-05-01; S |
20470SA001 |
from US $15.71 |
||
|
20510
|
20510
20510AA000 PLATEJACK UP F2000-09-01 ~ 2002-05-01; S +W |
20510AA000 |
US $13.03 |
||
|
20578A
|
20578A
20510AE020 PLATE BOLT COMPL2000-09-01 ~ 2002-05-01; S +W |
20510AE020 |
US $20.25 |
||
|
20578C
|
20578C
20540FC100 FLG BOLT 14X42X38TV2000-09-01 ~ 2002-05-01; S +W |
20540FC100 |
from US $2.22 |
||
|
M000215
|
M000215
901000215 BOLT FLG 8X2062000-09-01 ~ 2002-05-01; S +W |
901000215 |
US $1.56 |
||
|
M000228
|
M000228
901000228 BOLT FLG 12X83X302000-09-01 ~ 2002-05-01; S +W |
901000228 |
US $8.92 |
||
|
N350006
|
N350006
902350006 SELF ROCK NUT2000-09-01 ~ 2002-05-01; S +W |
902350006 |
from US $0.54 |
||
|
012308250
|
012308250
012308250
BOLTWASHER AY
|
012308250 |
— | ||
| replacement | |||||
|
012308250
|
012308250
901250075 BOLT WASHER M8 |
901250075 |
from US $0.46 |
||
|
015610452
|
015610452
015610452
BOLT
|
015610452 |
— | ||
| replacement | |||||
|
015610452
|
015610452
901550072 BOLT M10X45 |
901550072 |
from US $0.44 |
||
|
023212010
|
023212010
023212010 CASTLE NUT |
023212010 |
US $1.13 |
||
|
023510000
|
023510000
023510000 SELF LOCK NUT |
023510000 |
from US $0.81 |
||
| replacement | |||||
|
023510000
|
023510000
901250075 BOLT WASHER M8 |
901250075 |
from US $0.46 |
||
|
023510007
|
023510007
023510007
SELF LOCK NUT
|
023510007 |
— | ||
| replacement | |||||
|
023510007
|
023510007
902350001 SELF LOCK NUT10 |
902350001 |
from US $0.31 |
||
|
023708000
|
023708000
023708000
Nut
|
023708000 |
— | ||
| replacement | |||||
|
023708000
|
023708000
902600003 Nut |
902600003 |
US $0.57 |
||
|
023808000
|
023808000
023808000 FLANGE NUT |
023808000 |
US $0.42 |
||
|
032110000
|
032110000
032110000 SPRING WASHER |
032110000 |
US $0.28 |
||
|
045005100
|
045005100
045005100
TAPPING SCREW
|
045005100 |
— | ||
| replacement | |||||
|
045005100
|
045005100
904500027 ﾀﾂﾋﾟﾝｸﾞ ｽｸﾘﾕ,ﾄﾗｽ ﾍﾂﾄﾞ M5 |
904500027 |
US $0.28 |
||
|
051030250
|
051030250
051030250
COTTER PIN
|
051030250 |
— | ||
| replacement | |||||
|
051030250
|
051030250
51030300 COTTER PIN |
51030300 |
US $0.09 |
||
