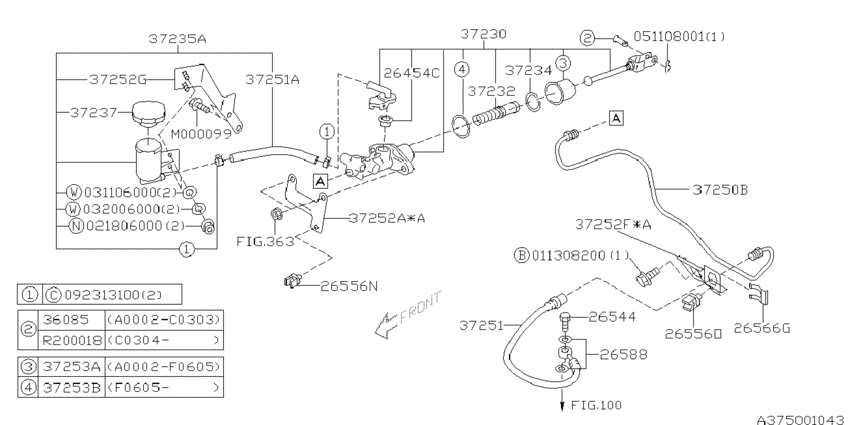

Clutch control system ((RASC+RAR).6MT; 2001-12-01~) Diagram Subaru IMPREZA
- Year
- 2001 - 2011
- Sales region
- Japan
- Engine
- 207
- drive
- 4W
- transmission
- 6MT
- grade
- RASC
- body
- S
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26454C
|
26454C
26455AC000 RESERVOIR SEAL2003-06-01 ~ 2004-05-01; 5MT.(204+205) +6MT |
26455AC000 |
US $5.66 |
||
|
26544
|
26544
112925161 UNION BOLTF WCYL2003-06-01 ~ 2004-05-01; 5MT.(204+205) +6MT |
112925161 |
from US $1.63 |
||
|
26556N
|
26556N
26514TA060 CLAMP 552003-06-01 ~ 2004-05-01; 5MT.205 +6MT |
26514TA060 |
US $4.25 |
||
|
26556O
|
26556O
25546GA340 CLAMP 5 HT2003-06-01 ~ 2004-05-01; 5MT.(204+205) +6MT |
25546GA340 |
US $1.84 |
||
|
26566G
|
26566G
627013001 CLAMP BRAKE HOSE2003-06-01 ~ 2004-05-01; 5MT.(204+205) +6MT |
627013001 |
from US $0.28 |
||
|
26588
|
26588
114130151 GASKET2003-06-01 ~ 2004-05-01; 5MT.(204+205) +6MT |
114130151 |
from US $0.63 |
||
|
37230
|
37230
37230FE050
ﾏｽﾀｼﾘﾝﾀﾞ,ｸﾗﾂﾁ
2003-06-01 ~ 2004-05-01; RASC.6MT |
37230FE050 |
— | ||
| replacement | |||||
|
37230
|
37230
37230FE051 ﾏｽﾀｼﾘﾝﾀﾞ,ｸﾗﾂﾁ2003-06-01 ~ 2004-05-01; RASC.6MT |
37230FE051 |
US $192.58 |
||
|
37232
|
37232
37232FE000 PISTON COMPL2003-06-01 ~ 2004-05-01; 5MT.205 +6MT |
37232FE000 |
US $35.26 |
||
|
37234
|
37234
114130040 STOP RING2003-06-01 ~ 2004-05-01; 5MT.(204+205) +6MT |
114130040 |
US $1.70 |
||
|
37235A
|
37235A
37235FE050 ｵｲﾙ ﾘｻﾞｰﾌﾞｱｾﾝﾌﾞﾘ,ｸﾗﾂﾁ ﾏｽﾀｼﾘﾝﾀﾞ2003-06-01 ~ 2004-05-01; 6MT |
37235FE050 |
US $32.14 |
||
|
37237
|
37237
37237AA001 RESERVOIR CAP C2003-06-01 ~ 2004-05-01; 5MT.(204+205) +6MT |
37237AA001 |
from US $7.12 |
||
|
37250B
|
37250B
37250FE060 ﾊﾟｲﾌﾟ,ｸﾗﾂﾁ2003-06-01 ~ 2004-05-01; RASC.6MT |
37250FE060 |
US $6.09 |
||
|
37251
|
37251
37251FE001 HOSE CLUTCH R6M2003-06-01 ~ 2004-05-01; 6MT |
37251FE001 |
US $52.53 |
||
|
37251A
|
37251A
37251FE010 ﾎｰｽ,ｵｲﾙ ﾘｻﾞｰﾌﾞ ﾀﾝｸ2003-06-01 ~ 2004-05-01; 5MT.205 +6MT |
37251FE010 |
US $16 |
||
|
37252A
|
37252A
37252FE000 ﾌﾞﾗｹﾂﾄ,ｸﾗﾂﾁ ﾏｽﾀｼﾘﾝﾀﾞ2003-06-01 ~ 2004-05-01; 5MT.(204+205) +6MT |
37252FE000 |
US $5.38 |
||
|
37252F
|
37252F
37252AA001 BRACKET CHOSE2003-06-01 ~ 2004-05-01; 5MT.204 +RASC.6MT |
37252AA001 |
US $10.48 |
||
|
37252G
|
37252G
37252FE060 ﾌﾞﾗｹﾂﾄ,ｵｲﾙ ﾘｻﾞｰﾌﾞ ﾀﾝｸ2003-06-01 ~ 2004-05-01; 6MT |
37252FE060 |
US $8.50 |
||
|
37253A
|
37253A
37239FC010 BOOT2003-06-01 ~ 2004-05-01; 5MT.(204+205) +6MT |
37239FC010 |
US $5.81 |
||
|
M000099
|
M000099
901000099 FLANGE BOLT2003-06-01 ~ 2004-05-01; 5MT.205 +6MT |
901000099 |
US $0.71 |
||
|
R200018
|
R200018
905200018 CLEVIS PIN D82003-06-01 ~ 2004-05-01; 5MT.(204+205) +6MT |
905200018 |
from US $0.80 |
||
|
011308200
|
011308200
011308200 BOLTWASHER AY |
011308200 |
US $3.68 |
||
|
021806000
|
021806000
021806000 NUT |
021806000 |
US $0.14 |
||
|
031106000
|
031106000
031106000 WASHER |
031106000 |
US $0.28 |
||
|
032006000
|
032006000
032006000 SPRING WASHER |
032006000 |
US $0.28 |
||
|
051108001
|
051108001
051108001 SNAP PIN |
051108001 |
from US $0.13 |
||
|
092313100
|
092313100
092313100 HOSE CLAMP |
092313100 |
US $0.71 |
||
