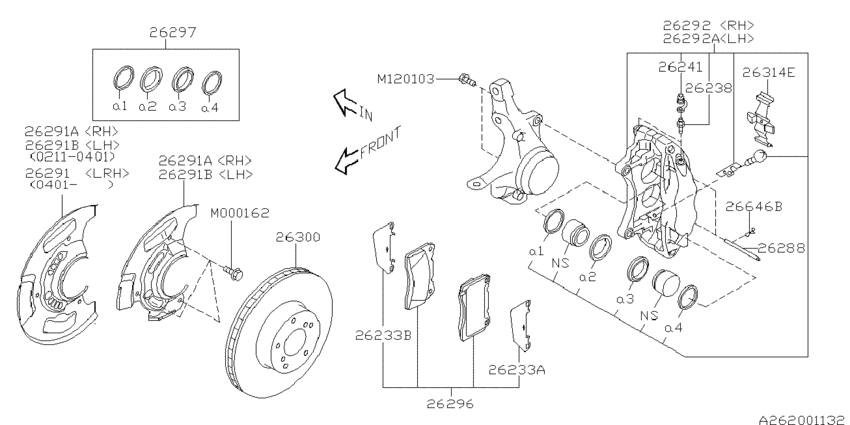

Front brake (17 INCH '01MY-'04MY; S.STI#; 2001-04-01~2004-06-01) Diagram Subaru IMPREZA
- Year
- 2001 - 2005
- Sales region
- Europe
- Engine
- 207
- drive
- 4W
- transmission
- 6MT
- grade
- STI
- body
- S
- Suspension
- N/S
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
26233A
|
26233A
26233FE030 Shim, disc brake outer2003-07-01 ~ 2004-06-01; S.STI |
26233FE030 |
US $8.78 |
||
|
26233B
|
26233B
26233FE020 SHIM-DISK BRAKE,INNER2003-07-01 ~ 2004-06-01; S.STI |
26233FE020 |
US $8.78 |
||
|
26238
|
26238
26238FE000 BLEEDER SCREW2003-07-01 ~ 2004-06-01; S.STI |
26238FE000 |
US $6.09 |
||
|
26241
|
26241
26241FE000 BLEEDER CAP2003-07-01 ~ 2004-06-01; S.STI |
26241FE000 |
US $4.39 |
||
|
26288
|
26288
26231FE030 SLIDE PIN2003-07-01 ~ 2004-06-01; S.STI |
26231FE030 |
from US $8.16 |
||
|
26291
|
26291
26290FE050 DISC COVER2004-01-01 ~ 2004-06-01; S.(WRX+STI) +W.WRX |
26290FE050 |
US $34.27 |
||
|
26291A
|
26291A
26290FE000 DISC COVER F RH2003-07-01 ~ 2004-01-01; S.(WRX+STI) +W.WRX |
26290FE000 |
US $22.37 |
||
|
26291A
|
26291A
26290FE000 DISC COVER F RH2003-07-01 ~ 2004-01-01; S.(WRX+STI) +W.WRX |
26290FE000 |
US $22.37 |
||
|
26291B
|
26291B
26290FE010 ｶﾊﾞｰ,ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚｰｷ ﾚﾌﾄ2003-07-01 ~ 2004-01-01; S.(WRX+STI) +W.WRX |
26290FE010 |
US $22.37 |
||
|
26291B
|
26291B
26290FE010 ｶﾊﾞｰ,ﾌﾛﾝﾄ ﾃﾞｲｽｸ ﾌﾞﾚｰｷ ﾚﾌﾄ2003-07-01 ~ 2004-01-01; S.(WRX+STI) +W.WRX |
26290FE010 |
US $22.37 |
||
|
26292
|
26292
26292FE020 DISC BRAKE KIT RH2003-07-01 ~ 2004-03-01; S.STI |
26292FE020 |
US $1,651.06 |
||
|
26292
|
26292
26292FE021 DISK BRAKE KIT F RH2004-03-01 ~ 2004-06-01; S.STI |
26292FE021 |
US $1,499.54 |
||
|
26292A
|
26292A
26292FE030 DISC BRAKE KIT LH2003-07-01 ~ 2004-03-01; S.STI |
26292FE030 |
US $1,651.06 |
||
|
26292A
|
26292A
26292FE031 DISK BRAKE KIT F LH2004-03-01 ~ 2004-06-01; S.STI |
26292FE031 |
US $1,499.54 |
||
|
26296
|
26296
26296FE100 PAD KIT F2003-07-01 ~ 2004-06-01; S.STI |
26296FE100 |
from US $489.57 |
||
|
26297
|
26297
26297FE010 SEAL KIT2003-07-01 ~ 2004-06-01; S.STI |
26297FE010 |
from US $188.33 |
||
|
26300
|
26300
26300FE000 BRAKE DISC F2003-07-01 ~ 2004-06-01; S.STI |
26300FE000 |
US $705.17 |
||
|
26314E
|
26314E
26232FE010 PAD CLIPCRS SPRG2003-07-01 ~ 2004-06-01; S.STI |
26232FE010 |
from US $9.20 |
||
|
26646B
|
26646B
26231FE040 SLIDE PINCLIP2003-07-01 ~ 2004-06-01; S.STI |
26231FE040 |
from US $4 |
||
|
M000162
|
M000162
901000162 FLANGE BOLT2003-07-01 ~ 2004-06-01; S +W |
901000162 |
from US $1.26 |
||
|
M120103
|
M120103
901120103 BOLT ASSY 12X372003-07-01 ~ 2004-06-01; S.STI |
901120103 |
from US $2.29 |
