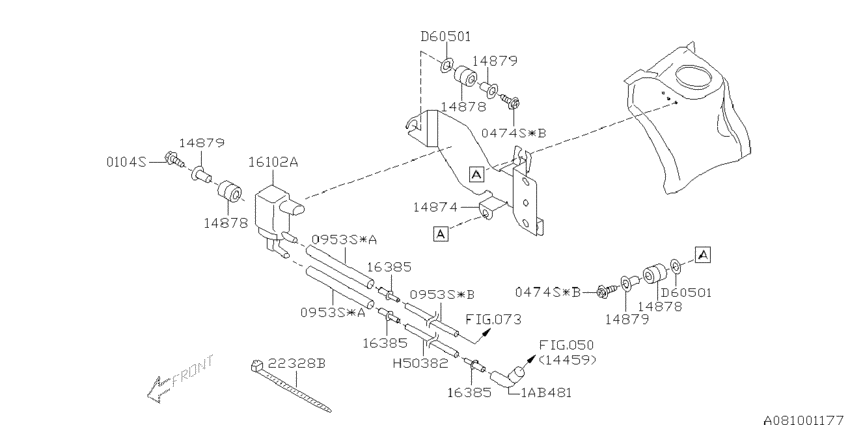

Emission control (egr) ('06MY-; 255 +257; 2005-06-01~) Diagram Subaru IMPREZA
- Year
- 2006 - 2011
- Sales region
- Europe
- Engine
- 255
- drive
- 4W
- transmission
- 5MT
- grade
- WRXC
- body
- S
- Suspension
- N/S
- Destinat
- LH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0104S
|
0104S
010406160 FLANGE BOLT2006-05-01 ~ 2007-06-01; 154 +161 +20# +25# |
010406160 |
US $0.42 |
||
|
0474S
|
0474S
047406200 FT TAPPING SCREW2006-05-01 ~ 2007-06-01; 154 +161 +20# +25# |
047406200 |
US $0.28 |
||
|
0474S
|
0474S
047406200 FT TAPPING SCREW2006-05-01 ~ 2007-06-01; 154 +161 +20# +25# |
047406200 |
US $0.28 |
||
|
0953S
|
0953S
09531D100
AIR HOSE
2006-05-01 ~ 2007-06-01; 154 +161 +20# +25# |
09531D100 |
— | ||
|
0953S
|
0953S
09535A220
Air hose
2006-05-01 ~ 2007-06-01; 154 +161 +20# +25# |
09535A220 |
— | ||
|
0953S
|
0953S
09531D100
AIR HOSE
2006-05-01 ~ 2007-06-01; 154 +161 +20# +25# |
09531D100 |
— | ||
|
0953S
|
0953S
09535A220
Air hose
2006-05-01 ~ 2007-06-01; 154 +161 +20# +25# |
09535A220 |
— | ||
|
0953S
|
0953S
09531D100
AIR HOSE
2006-05-01 ~ 2007-06-01; 154 +161 +20# +25# |
09531D100 |
— | ||
|
0953S
|
0953S
09535A220
Air hose
2006-05-01 ~ 2007-06-01; 154 +161 +20# +25# |
09535A220 |
— | ||
|
14874
|
14874
14874AA431
Bracket-solenoid valve
2006-05-01 ~ 2007-06-01; 255 +257 |
14874AA431 |
— | ||
|
14878
|
14878
14878AA010 GROMAB VALVE2006-05-01 ~ 2007-06-01; 255 +257 |
14878AA010 |
US $3.68 |
||
|
14878
|
14878
14878AA010 GROMAB VALVE2006-05-01 ~ 2007-06-01; 255 +257 |
14878AA010 |
US $3.68 |
||
|
14878
|
14878
14878AA010 GROMAB VALVE2006-05-01 ~ 2007-06-01; 255 +257 |
14878AA010 |
US $3.68 |
||
|
14879
|
14879
14879AA010 BUSHAB VALVE2006-05-01 ~ 2007-06-01; 255 +257 |
14879AA010 |
US $1.70 |
||
|
14879
|
14879
14879AA010 BUSHAB VALVE2006-05-01 ~ 2007-06-01; 255 +257 |
14879AA010 |
US $1.70 |
||
|
14879
|
14879
14879AA010 BUSHAB VALVE2006-05-01 ~ 2007-06-01; 255 +257 |
14879AA010 |
US $1.70 |
||
|
16102A
|
16102A
16102AA380 VALVE AYDUTY SOL2006-05-01 ~ 2007-06-01; 255 +257; ND |
16102AA380 |
from US $29.23 |
||
|
16385
|
16385
16385AA030 CONNHOSE2006-05-01 ~ 2007-06-01; 255 +257 |
16385AA030 |
US $2.27 |
||
|
16385
|
16385
16385AA030 CONNHOSE2006-05-01 ~ 2007-06-01; 255 +257 |
16385AA030 |
US $2.27 |
||
|
16385
|
16385
16385AA030 CONNHOSE2006-05-01 ~ 2007-06-01; 255 +257 |
16385AA030 |
US $2.27 |
||
|
1AB481
|
1AB481
99071AB481 HOSEVACUUM2006-05-01 ~ 2007-06-01; 255 +257 |
99071AB481 |
US $4.96 |
||
|
22328B
|
22328B
22328KA040 ｽﾊﾟｲﾗﾙ,ﾎｰｽ ﾌﾟﾛﾃｸﾀ B2006-05-01 ~ 2007-06-01; 255 +257 |
22328KA040 |
US $3.68 |
||
|
D60501
|
D60501
803605010 SOFT WASHER2006-05-01 ~ 2007-06-01; 255 +257 |
803605010 |
US $0.57 |
||
|
D60501
|
D60501
803605010 SOFT WASHER2006-05-01 ~ 2007-06-01; 255 +257 |
803605010 |
US $0.57 |
||
|
H50382
|
H50382
807503820 HOSE35X75X4952006-05-01 ~ 2007-06-01; 255 +257; 3.5X7.5X495 |
807503820 |
US $19.40 |
