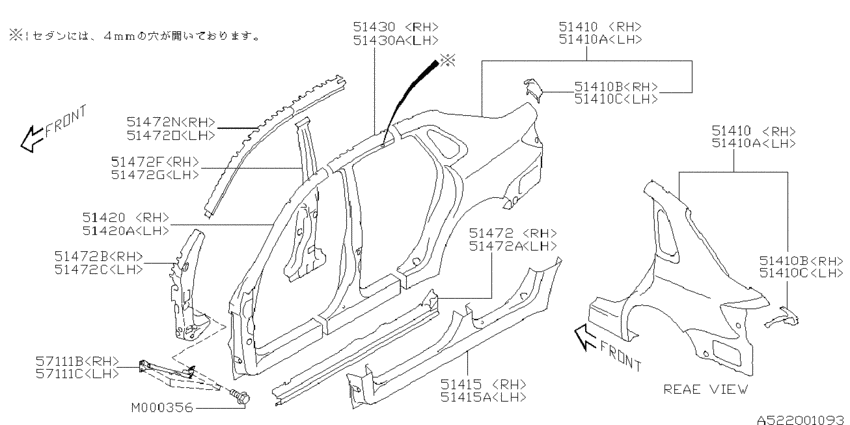

Side panel (ｱｳﾀｰﾊﾟﾈﾙ Bﾈﾝｶｲ-; S; 2008-07-01~) Diagram Subaru IMPREZA
- Year
- 2008 - 2011
- Sales region
- Japan
- Engine
- 154
- drive
- 4W
- transmission
- 5MT
- grade
- 15I
- body
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51410
|
51410
51439FG0409P PNL SD OUT QTR RH2008-07-01 ~ ; S.(15I+20I) |
51439FG0409P |
from US $491.35 |
||
|
51410A
|
51410A
51439FG0509P PNL SD OUT QTR LH2008-07-01 ~ ; S.(15I+20I) |
51439FG0509P |
from US $491.35 |
||
|
51410B
|
51410B
51445FG0009P QTR PNL R END CPLRH2008-07-01 ~ ; S |
51445FG0009P |
from US $11.69 |
||
|
51410C
|
51410C
51445FG0109P QTR PNL R END CPLLH2008-07-01 ~ ; S |
51445FG0109P |
from US $12.47 |
||
|
51415
|
51415
51449FG0009P PNL SD OUT SL RPR RH2008-07-01 ~ ; S.(15I+20I) +W.(15I+20I+20GTC) |
51449FG0009P |
US $413.47 |
||
|
51415A
|
51415A
51449FG0109P PNL SD OUT SL RPR LH2008-07-01 ~ ; S.(15I+20I) +W.(15I+20I+20GTC) |
51449FG0109P |
US $223.73 |
||
|
51420
|
51420
51419FG0009P PNL SD OUT F RPR RH2008-07-01 ~ ; S.(15I+20I) +W.(15I+20I+20GTC) |
51419FG0009P |
US $223.73 |
||
|
51420A
|
51420A
51419FG0109P PNL SD OUT F RPR LH2008-07-01 ~ ; S.(15I+20I) +W.(15I+20I+20GTC) |
51419FG0109P |
from US $180.67 |
||
|
51430
|
51430
51429FG0419P PNL SD OUT CTR RH2008-07-01 ~ ; S.(15I+20I) |
51429FG0419P |
US $206.74 |
||
|
51430A
|
51430A
51429FG0519P PNL SD OUT CTR LH2008-07-01 ~ ; S.(15I+20I) |
51429FG0519P |
US $206.74 |
||
|
51472
|
51472
51479FG0009P REINF SILL SD OUTRH2008-07-01 ~ ; S +W.(15I+20I+20IS+20GT+20GTC) |
51479FG0009P |
US $132.54 |
||
|
51472A
|
51472A
51479FG0109P REINF SILL SD OUTLH2008-07-01 ~ ; S +W.(15I+20I+20IS+20GT+20GTC) |
51479FG0109P |
US $132.54 |
||
|
51472B
|
51472B
51455FG0009P ﾘｰﾝﾌｵｰｽﾒﾝﾄ ｺﾝﾌﾟﾘｰﾄ,ﾌﾛﾝﾄ ﾋﾟﾗｰ ﾛｱ ﾗｲﾄ2008-07-01 ~ ; S.15I +W.15I |
51455FG0009P |
US $102.66 |
||
|
51472C
|
51472C
51455FG0109P ﾘｰﾝﾌｵｰｽﾒﾝﾄ ｺﾝﾌﾟﾘｰﾄ,ﾌﾛﾝﾄ ﾋﾟﾗｰ ﾛｱ ﾚﾌﾄ2008-07-01 ~ ; S.15I +W.15I |
51455FG0109P |
US $102.66 |
||
|
51472F
|
51472F
51456FG0809P REINF CP PLR CTR RHJ2008-07-01 ~ ; S +W.(15I+20I+20IS+20GT+20GTC) |
51456FG0809P |
from US $85.64 |
||
|
51472G
|
51472G
51456FG0909P REINF CP PLR CTR LHJ2008-07-01 ~ ; S +W.(15I+20I+20IS+20GT+20GTC) |
51456FG0909P |
US $99.69 |
||
|
51472N
|
51472N
51456FG1609P REINF CP RL SD 4DRH2008-07-01 ~ ; S |
51456FG1609P |
US $72.92 |
||
|
51472O
|
51472O
51456FG1709P REINF CP RL SD 4DLH2008-07-01 ~ ; S |
51456FG1709P |
US $72.92 |
