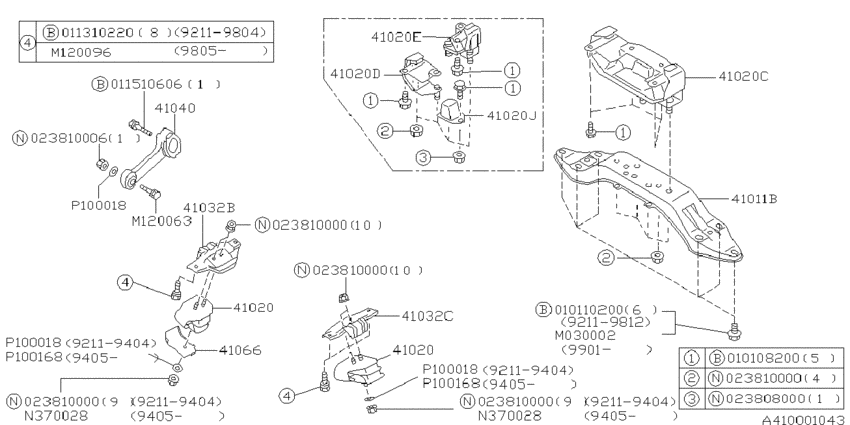

Engine mounting (AT.(EJ20G+EJ205); 1993-05-01~) Diagram Subaru IMPREZA
- Year
- 1993 - 1998
- Sales region
- Japan
- Engine
- EJ20G
- drive
- F4WD
- transmission
- AT
- grade
- WRX
- body
- W
- Suspension
- N/S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
41011B
|
41011B
41021FA070 ｸﾛｽ ﾒﾝﾊﾞ ｺﾝﾌﾟﾘｰﾄ,ﾘﾔ AT1996-04-01 ~ 1997-07-01; AT.EJ20G |
41021FA070 |
US $73.92 |
||
|
41020
|
41020
41022FA090
CUSHION RUB FT
1996-04-01 ~ 1997-07-01; AT.EJ20G |
41022FA090 |
— | ||
|
41020C
|
41020C
41022AC160
ｸﾂｼﾖﾝ ﾗﾊﾞｰ,ﾄﾗﾝｽﾐﾂｼﾖﾝ
1996-04-01 ~ 1997-07-01; AT.EJ20G |
41022AC160 |
— | ||
|
41032B
|
41032B
41031AA281 BRKT CP F RH1996-04-01 ~ 1997-07-01; AT.EJ20G |
41031AA281 |
US $42.62 |
||
|
41032C
|
41032C
41031AA290 FRONT MOUNT BRKT LEFT1996-04-01 ~ 1997-07-01; AT.EJ20G |
41031AA290 |
from US $30.03 |
||
|
41040
|
41040
41040FA000 ROD ASSY PTG STPR1996-04-01 ~ 1997-07-01; AT.EJ20G |
41040FA000 |
from US $34.82 |
||
|
41066
|
41066
41024FA000
ｶﾊﾞｰ
1996-04-01 ~ 1997-07-01; AT.EJ20G |
41024FA000 |
— | ||
| replacement | |||||
|
41066
|
41066
41024FA002 COVER ENG MTG1996-04-01 ~ 1997-07-01; AT.EJ20G |
41024FA002 |
from US $5.66 |
||
|
M120063
|
M120063
901120063 BOLT AY1996-04-01 ~ 1997-07-01; AT.EJ20G |
901120063 |
US $1.27 |
||
|
N370028
|
N370028
902370028 FLANGE NUT1996-04-01 ~ 1997-07-01; AT.EJ20G |
902370028 |
from US $0.61 |
||
|
P100018
|
P100018
903100018 WASHER105X24X231996-04-01 ~ 1997-07-01; AT.EJ20G |
903100018 |
US $0.42 |
||
|
P100168
|
P100168
903100168 WASHER1996-04-01 ~ 1997-07-01; AT.EJ20G |
903100168 |
from US $0.48 |
||
|
010108200
|
010108200
010108200 FLANGE BOLTPLT |
010108200 |
from US $0.33 |
||
|
010110200
|
010110200
010110200 FLANGE BOLTPLT |
010110200 |
from US $0.39 |
||
|
011310220
|
011310220
011310220
BOLTWASHER AY
|
011310220 |
— | ||
| replacement | |||||
|
011310220
|
011310220
901130017 BOLT ASSY M10X22 |
901130017 |
US $0.71 |
||
|
011510606
|
011510606
011510606
BOLTWASH ASSY
|
011510606 |
— | ||
| replacement | |||||
|
011510606
|
011510606
901270010 SCREW WASHER |
901270010 |
from US $0.72 |
||
|
023808000
|
023808000
023808000 FLANGE NUT |
023808000 |
from US $0.13 |
||
|
023810000
|
023810000
023810000
FLANGE NUT
|
023810000 |
— | ||
| replacement | |||||
|
023810000
|
023810000
902380007 NUT FLG M10 |
902380007 |
US $0.57 |
||
|
023810006
|
023810006
023810006
FLANG NUT
|
023810006 |
— | ||
| replacement | |||||
|
023810006
|
023810006
902380007 NUT FLG M10 |
902380007 |
US $0.57 |
||
