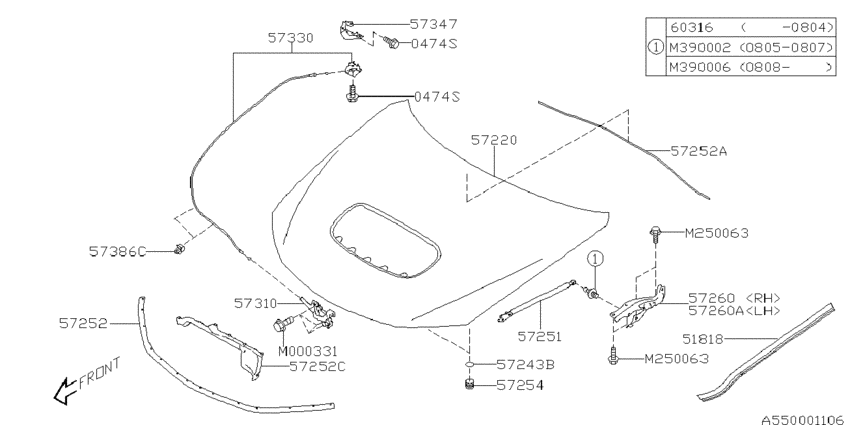

Front hood & front hood lock (S.RH +W.RH; 2007-06-01~) Diagram Subaru IMPREZA
- Year
- 2007 - 2011
- Sales region
- Europe
- Engine
- 204
- drive
- 4W
- transmission
- 5MT
- grade
- 20RKS
- body
- W
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0474S
|
0474S
047406120
TAPPING SCREW-HEXAGON FLANGE HEAD
2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
047406120 |
— | ||
| replacement | |||||
|
0474S
|
0474S
904740011 TAPPING SCREW2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
904740011 |
from US $0.28 |
||
|
0474S
|
0474S
047406120
TAPPING SCREW-HEXAGON FLANGE HEAD
2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
047406120 |
— | ||
| replacement | |||||
|
0474S
|
0474S
904740011 TAPPING SCREW2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
904740011 |
from US $0.28 |
||
|
51818
|
51818
57243AG040 PROTECTOR FENDER2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57243AG040 |
US $5.38 |
||
|
57220
|
57220
57229FG0009P HOOD COMPL F NA2008-04-01 ~ ; S.(15R+20R#) +W.(15R+20R#) |
57229FG0009P |
from US $481.44 |
||
|
57243B
|
57243B
57253AA031
PROTR F HD BFR
2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57253AA031 |
— | ||
| replacement | |||||
|
57243B
|
57243B
57243CA000 PROTECTOR F HOOD2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57243CA000 |
from US $0.81 |
||
|
57251
|
57251
57251FG010
STAY ASSY F HOOD
2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57251FG010 |
— | ||
| replacement | |||||
|
57251
|
57251
57259FG000 STAY ASSY F HOOD2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57259FG000 |
US $136.22 |
||
|
57252
|
57252
57252FG000 SEAL ASSY F HOOD2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57252FG000 |
US $23.08 |
||
|
57252A
|
57252A
57252FG020 SEAL COWL PANEL2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57252FG020 |
US $19.97 |
||
|
57252C
|
57252C
57252FG010 SEAL ASSY DUCT2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57252FG010 |
from US $9.34 |
||
|
57254
|
57254
57254AG000 BUFFER F HOOD2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57254AG000 |
US $1.56 |
||
|
57260
|
57260
57260FG0009P HINGE COMPL F HD RH2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57260FG0009P |
from US $16.06 |
||
|
57260A
|
57260A
57260FG0109P HINGE COMPL F HD LH2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57260FG0109P |
from US $16.65 |
||
|
57310
|
57310
57310FG000
ﾛﾂｸ ｱｾﾝﾌﾞﾘ,ﾌﾛﾝﾄ ﾌｰﾄﾞ
2008-04-01 ~ ; S.RH +W.(15R#+20R#+WRX#).RH |
57310FG000 |
— | ||
| replacement | |||||
|
57310
|
57310
57310FG001 Lock ASSY2008-04-01 ~ ; S.RH +W.(15R#+20R#+WRX#).RH |
57310FG001 |
US $54.66 |
||
|
57330
|
57330
57330FG080 CABLE ASSY2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57330FG080 |
US $34.27 |
||
|
57347
|
57347
57347FG000 ﾌﾞﾗｹﾂﾄ,ｵｰﾌﾟﾅ ﾊﾝﾄﾞﾙ ﾗｲﾄ2008-04-01 ~ ; S.RH +W.(15R#+20R#+WRX#).RH |
57347FG000 |
US $6.80 |
||
|
57386C
|
57386C
57371GA070 CLIP LEL CABLE2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
57371GA070 |
from US $0.68 |
||
|
M000331
|
M000331
901000331
ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ M8 X 19
2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
901000331 |
— | ||
| replacement | |||||
|
M000331
|
M000331
901000332 ﾌﾗﾝｼﾞ ﾎﾞﾙﾄ M8 X 192008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
901000332 |
US $2.41 |
||
|
M250063
|
M250063
901250063 BOLT WASHER2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
901250063 |
from US $0.46 |
||
|
M250063
|
M250063
901250063 BOLT WASHER2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
901250063 |
from US $0.46 |
||
|
M390002
|
M390002
901390002 Screw2008-04-01 ~ 2008-07-01; S +W.(15R#+20R#+WRX#) |
901390002 |
US $3.68 |
||
|
M390006
|
M390006
901390006 BOLT BALL STUD M82008-08-01 ~ ; S +W.(15R#+20R#+WRX#) |
901390006 |
from US $2.63 |
||
