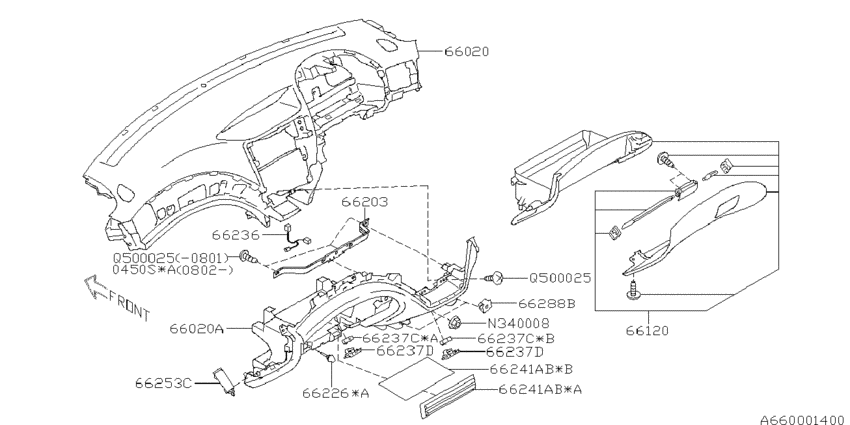

Instrument panel (LOWER; S.RH +W.RH; 2007-06-01~) Diagram Subaru IMPREZA
- Year
- 2007 - 2011
- Sales region
- Europe
- Engine
- 204
- drive
- 4W
- transmission
- 5MT
- grade
- 20RKS
- body
- W
- Destinat
- RH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
0450S
|
0450S
045004120 TAPPING SCREW2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
045004120 |
US $0.28 |
||
|
0450S
|
0450S
045005160 Screw2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
045005160 |
US $0.14 |
||
|
66020
|
66020
66055FG000JM ﾊﾟﾈﾙ ｺﾝﾌﾟﾘｰﾄ,ｲﾝｽﾄﾙﾒﾝﾄ2008-04-01 ~ ; S.(20RS+WRX#).RH +W.(20RKS+WRX#).RH |
66055FG000JM |
US $359.66 |
||
|
66020A
|
66020A
66055FG020JC ﾊﾟﾈﾙ ｺﾝﾌﾟﾘｰﾄ,ｲﾝｽﾄﾙﾒﾝﾄ ﾛｱ2008-04-01 ~ ; OFF BLACK; S.(20RS+WRX#).RH +W.(20RKS+WRX#).RH |
66055FG020JC |
US $59.47 |
||
|
66120
|
66120
66121FG000JC ﾎﾟｹﾂﾄ ｱｾﾝﾌﾞﾘ2008-04-01 ~ ; OFF BLACK; S.(20RS+WRX#).RH +W.(20RKS+WRX#).RH |
66121FG000JC |
US $104.08 |
||
|
66203
|
66203
66203FG000 REINF LWR2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
66203FG000 |
US $17.84 |
||
|
66226
|
66226
66153AA140 CUSHION POKET2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
66153AA140 |
US $1.13 |
||
|
66226
|
66226
66226TC000 CUSHION2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
66226TC000 |
US $3.82 |
||
|
66236
|
66236
66236FG010 ADAPTER CORD LAMP2008-04-01 ~ ; S.(20RS+WRXSS).5MT +S.(20RS+WRXS).RH +W.20RS.5MT.LH +W.(20RKS+WRX#) |
66236FG010 |
US $31.72 |
||
|
66237C
|
66237C
66237SA010 LAMP POCKET2008-04-01 ~ ; S.(20RS+WRXSS).5MT +S.(20RS+WRXS).RH +W.20RS.5MT.LH +W.(20RKS+WRX#); UMBER |
66237SA010 |
US $14.58 |
||
|
66237C
|
66237C
66237SA140 LAMP POCKET2008-04-01 ~ ; S.(20RS+WRXSS).5MT +S.(20RS+WRXS).RH +W.20RS.5MT.LH +W.(20RKS+WRX#); BULE |
66237SA140 |
from US $11.54 |
||
|
66237C
|
66237C
66237SA010 LAMP POCKET2008-04-01 ~ ; S.(20RS+WRXSS).5MT +S.(20RS+WRXS).RH +W.20RS.5MT.LH +W.(20RKS+WRX#); UMBER |
66237SA010 |
US $14.58 |
||
|
66237C
|
66237C
66237SA140 LAMP POCKET2008-04-01 ~ ; S.(20RS+WRXSS).5MT +S.(20RS+WRXS).RH +W.20RS.5MT.LH +W.(20RKS+WRX#); BULE |
66237SA140 |
from US $11.54 |
||
|
66237D
|
66237D
66237FG000 LAMP HOLDER2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
66237FG000 |
US $2.97 |
||
|
66237D
|
66237D
66237FG000 LAMP HOLDER2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
66237FG000 |
US $2.97 |
||
|
66241AB
|
66241AB
66273FG000 ｶﾊﾞｰ,ｸﾞﾛｰﾌﾞ ﾎﾞﾂｸｽ ﾄﾚｰ2008-04-01 ~ ; S.(20RS+WRX#).RH +W.(20RKS+WRX#).RH |
66273FG000 |
US $8.92 |
||
|
66241AB
|
66241AB
66273FG010 ｶﾊﾞｰ,ｸﾞﾛｰﾌﾞ ﾎﾞﾂｸｽ ﾄﾚｰ2008-04-01 ~ ; S.(20RS+WRX#).RH +W.(20RKS+WRX#).RH |
66273FG010 |
US $7.50 |
||
|
66241AB
|
66241AB
66273FG000 ｶﾊﾞｰ,ｸﾞﾛｰﾌﾞ ﾎﾞﾂｸｽ ﾄﾚｰ2008-04-01 ~ ; S.(20RS+WRX#).RH +W.(20RKS+WRX#).RH |
66273FG000 |
US $8.92 |
||
|
66241AB
|
66241AB
66273FG010 ｶﾊﾞｰ,ｸﾞﾛｰﾌﾞ ﾎﾞﾂｸｽ ﾄﾚｰ2008-04-01 ~ ; S.(20RS+WRX#).RH +W.(20RKS+WRX#).RH |
66273FG010 |
US $7.50 |
||
|
66253C
|
66253C
66253FG000 DAMPER POCKET2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
66253FG000 |
US $5.95 |
||
|
66288B
|
66288B
66298FC000 EXP NUT2008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
66298FC000 |
US $0.99 |
||
|
N340008
|
N340008
902340008 NUT FLG LOCK M62008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
902340008 |
from US $0.68 |
||
|
Q500025
|
Q500025
904500025 SCREW TAP TRU M52008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
904500025 |
from US $0.09 |
||
|
Q500025
|
Q500025
904500025 SCREW TAP TRU M52008-04-01 ~ ; S +W.(15R#+20R#+WRX#) |
904500025 |
from US $0.09 |
