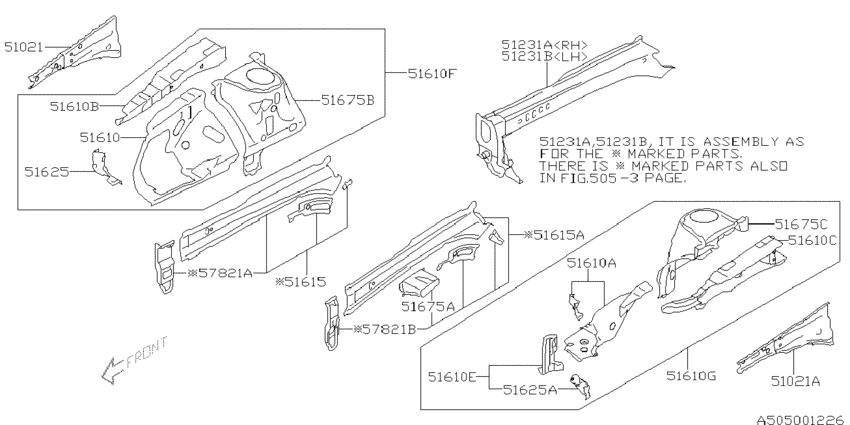

Body panel (WHEEL APRON FOR DIESEL '09MY-; W.20T#; 2008-04-01~) Diagram Subaru IMPREZA
- Year
- 2008 - 2011
- Sales region
- Europe
- Engine
- 20Z
- drive
- 4W
- transmission
- 6MT
- grade
- 20TD
- body
- W
- Destinat
- LH
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
51021
|
51021
51021FG0009P FRAME SD UPR CP RH2008-04-01 ~ ; S.WRXS.RH +W.20TD +W.WRXS.RH |
51021FG0009P |
US $42.76 |
||
|
51021A
|
51021A
51021FG0109P FRAME SD UPR CP LH2008-04-01 ~ ; S.WRXS.RH +W.20TD +W.WRXS.RH |
51021FG0109P |
from US $31.71 |
||
|
51231A
|
51231A
51620FG0609P FRAME SD FF CP RH2008-04-01 ~ 2009-01-01; S +W.(15R+20R#+20T#+WRX#) |
51620FG0609P |
US $352.58 |
||
|
51231A
|
51231A
51620FG0619P FRAME SD FF CP RH2009-01-01 ~ ; S +W.(15R+20R#+20T#+WRX#) |
51620FG0619P |
US $352.58 |
||
|
51231B
|
51231B
51620FG0709P FRAME SD FF CP LH2008-04-01 ~ 2009-01-01; S +W.(15R+20R#+20T#+WRX#) |
51620FG0709P |
US $352.58 |
||
|
51231B
|
51231B
51620FG0719P FRAME SD FF CP LH2009-01-01 ~ ; S +W.(15R+20R#+20T#+WRX#) |
51620FG0719P |
US $352.58 |
||
|
51610
|
51610
51610AG0019P WHEEL APR2008-04-01 ~ ; S +W.(15R+20R#+20T#+WRX#) |
51610AG0019P |
US $137.78 |
||
|
51610A
|
51610A
51609AG0309P New Genuine Part2008-04-01 ~ ; W.20T# |
51609AG0309P |
US $104.08 |
||
|
51610B
|
51610B
51610AG0809P WHEEL APR F UP CPRH2008-04-01 ~ ; S.(20R#+WRX#) +W.(20R#+20T#+WRX#) |
51610AG0809P |
US $53.67 |
||
|
51610C
|
51610C
51610AG1509P New Genuine Part2008-04-01 ~ ; W.20T# |
51610AG1509P |
US $53.67 |
||
|
51610E
|
51610E
51610SC0009P
Wheel apron-extention,left
2008-04-01 ~ ; W.20T# |
51610SC0009P |
— | ||
|
51610F
|
51610F
51602AG1909P WHEEL APR SUBCP FRH2008-04-01 ~ ; S.(20R#+WRX#) +W.(20R#+20T#+WRX#) |
51602AG1909P |
US $298.78 |
||
|
51610G
|
51610G
51602SC0009P
Wheel apron sub complete-left
2008-04-01 ~ ; W.20T# |
51602SC0009P |
— | ||
|
51615
|
51615
51615AG2309P CLOSING PLT FF CPRH2008-04-01 ~ ; S +W.(15R+20R#+20T#+WRX#) |
51615AG2309P |
US $150.10 |
||
|
51615A
|
51615A
51615AG2409P CLOSING PLT FF CPLH2008-04-01 ~ ; S +W.(15R+20R#+20T#+WRX#) |
51615AG2409P |
US $150.10 |
||
|
51625
|
51625
51625AG7109P BRKT FENDER CP RH2008-04-01 ~ ; S +W.(15R+20R#+20T#+WRX#) |
51625AG7109P |
from US $14.37 |
||
|
51625A
|
51625A
51625AG8509P New Genuine Part2008-04-01 ~ ; W.20T# |
51625AG8509P |
US $18.41 |
||
|
51675A
|
51675A
51636AG0209P GUSSET BATTERY CP2008-04-01 ~ ; S +W.(15R+20R#+20T#+WRX#) |
51636AG0209P |
US $15.29 |
||
|
51675B
|
51675B
51625AG9419P BRKT F SUS CP RH2008-06-01 ~ ; S +W.(15R+20R#+20T#+WRX#) |
51625AG9419P |
US $107.19 |
||
|
51675C
|
51675C
51625AG9509P BRKT F SUS CP LH2008-06-01 ~ ; S +W.(15R+20R#+20T#+WRX#) |
51625AG9509P |
from US $83.42 |
||
|
57821A
|
57821A
51639AG0009P TIE DOWNFRONT RIGHT2008-04-01 ~ ; S +W.(15R+20R#+20T#+WRX#) |
51639AG0009P |
US $16 |
||
|
57821B
|
57821B
51639AG0109P TIE DOWNFRONT LEFT2008-04-01 ~ ; S +W.(15R+20R#+20T#+WRX#) |
51639AG0109P |
from US $16 |
